ASTM A815 S32760 Pipe Fittings Manufacturer
Metinox Overseas is a trusted ASTM A815 S32760 pipe fittings manufacturer and exporter in India. ASME SA815 S32760 fittings are supplied and stocked to customers in the Middle East, Europe, Southeast Asia and Americas in all types such as elbows, tees, reducers, caps, etc. Each order will include an explicitly written certificate, per EN10204 3.1 MTR, referencing UNS S32760 and ASTM A815. We do not supply fittings where the MTR references only the trade name "Zeron 100" without the mandatory UNS designation. When your project specification requires pipe fittings that are ASTM A815 S32760 pipe fittings or A815 Zeron 100 fittings, call today to get a quote, and get a documentation package that's compliant and ready for your QC review.
Send RFQ to Metinox OverseasTable of Contents
- ASTM A815 S32760 Pipe Fittings Manufacturer
- What Is ASTM A815 S32760?
- ASTM A815 S32760 Pipe Fittings Specifications
- ASTM A815 S32760 Pipe Fittings Types
- Chemical Composition
- Mechanical Properties
- ASTM A815 S32760 vs S32750 Comparison
- Pressure Rating Chart
- Testing Requirements
- Equivalent Grades
- Applications
- Related Products
- Frequently Asked Questions
What Is ASTM A815 S32760?
ASTM A815 S32760 pipe fittings are wrought super duplex stainless steel butt-weld fittings made in accordance with ASTM A815 which is the Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings. The grade is only specified by its UNS number S32760 in ASTM A815 Table 1 and the trade name "Zeron 100" is not cited anywhere in the ASTM A815 text. This difference is an important procurement risk. If the buyer specifies "Zeron 100 fittings to ASTM A815", he or she should ensure the Mill Test Report (MTR) contains the designation "ASTM A815 WP S32760" and not the trade name. With the UNS designation and ASTM standard reference omitted from the MTR, the product is non-conforming to ASTM A815 requirements, and will be a failure for third-party document review on offshore and process-industry projects.
As part of the Super Duplex Pipe Fittings product family, ASTM A815 S32760 fittings carry a tungsten (W) and copper (Cu) addition that raises the Pitting Resistance Equivalent (PRE) above 41, making them the benchmark grade for the most aggressive chloride and sour-gas environments.
ASTM A815 S32760 Pipe Fittings Specifications
| Specification | Details |
|---|---|
| Specifications | ASTM A815 / ASME SA815 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/2" NB to 24" NB |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5S, Sch 10S, Sch 40S, Sch 80S, Sch 160S, Sch XXS |
| Grades | Super Duplex S32750, S32760 |
ASTM A815 S32760 Pipe Fittings Types
ASTM A815 S32760 Buttweld 90° Elbow

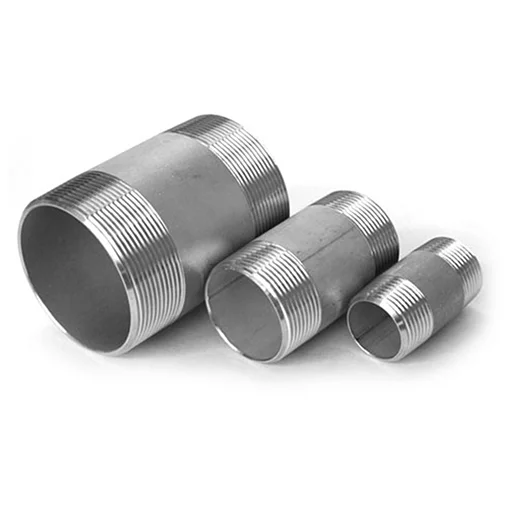

ASTM A815 S32760 Buttweld Barrel Nipple
ASTM A815 S32760 Buttweld Concentric Reducer
ASTM A815 S32760 Buttweld End Cap
ASTM A815 S32760 Buttweld Reducing Tee
Super Duplex Steel S32760 Buttweld Barred Tee
Super Duplex Steel S32760 Buttweld Lateral Cap
Super Duplex Steel S32760 Buttweld Long Stub End

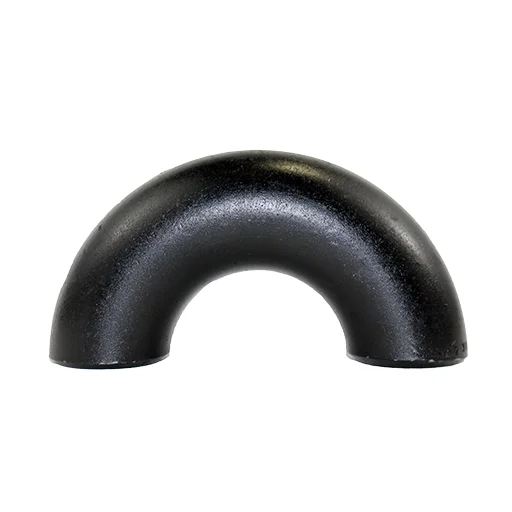

Super Duplex Steel S32760 Buttweld LR Elbow
Super Duplex Steel S32760 Buttweld Swage Nipple
UNS S32760 Buttweld 180° Elbow
UNS S32760 Buttweld Dish Cap
UNS S32760 Buttweld Eccentric Reducer

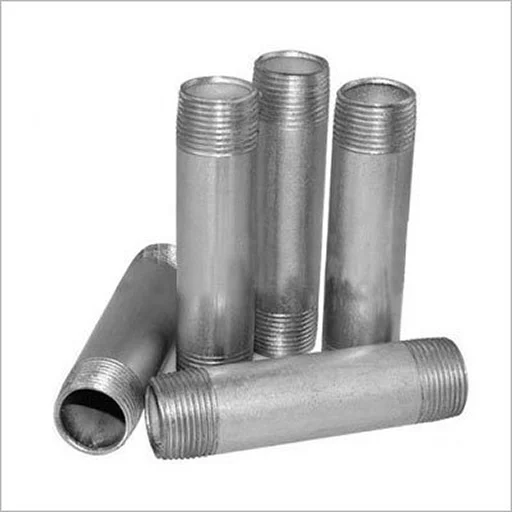

UNS S32760 Buttweld Pipe Nipple

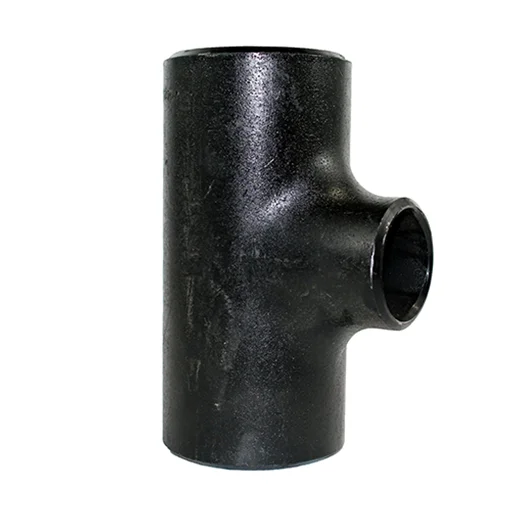

UNS S32760 Buttweld Unequal Tee

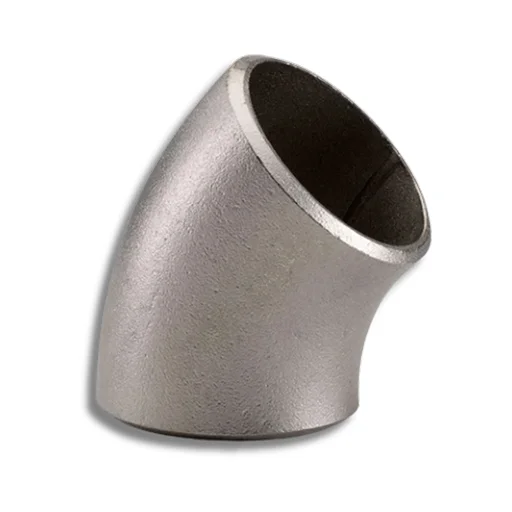

WERKSTOFF NO 1.4410 Buttweld 45° Elbow
WERKSTOFF NO 1.4410 Buttweld Equal Tee
WERKSTOFF NO 1.4410 Buttweld Short Stub End
WERKSTOFF NO 1.4410 Buttweld SR Elbow
Request a Quote for ASTM A815 S32760 Pipe Fittings
Get a price, availability, and compliant EN 10204 3.1 MTR with UNS S32760 designation. Fast turnaround for offshore, subsea, and chemical process projects.
Send RFQ to Metinox OverseasChemical Composition of ASTM A815 S32760 Pipe Fittings
Per ASTM A815 Table 1. The W and Cu additions are the defining chemical features of ASTM A815 S32760 versus S32750.
| Element | Min (%) | Max (%) | Note |
|---|---|---|---|
| Chromium (Cr) | 24.0 | 26.0 | Primary pitting resistance |
| Nickel (Ni) | 5.5 | 8.0 | Austenite stabilizer |
| Molybdenum (Mo) | 3.0 | 4.0 | Crevice corrosion resistance |
| Tungsten (W) | 0.5 | 1.0 | KEY: raises PRE above 41 |
| Copper (Cu) | 0.5 | 1.0 | KEY: acid corrosion resistance |
| Nitrogen (N) | 0.20 | 0.30 | Austenite stabilizer + PRE |
| Carbon (C) | -- | 0.030 max | Sensitization control |
| Manganese (Mn) | -- | 1.00 max | -- |
| Silicon (Si) | -- | 1.00 max | -- |
| Phosphorus (P) | -- | 0.030 max | -- |
| Sulfur (S) | -- | 0.010 max | -- |
Mechanical Properties of ASTM A815 S32760 Pipe Fittings
| Property | Value (MPa) | Value (ksi) | ASTM A815 Reference |
|---|---|---|---|
| Tensile Strength (min) | 750 MPa | 109 ksi | A815 Table 2 |
| Yield Strength (min) | 550 MPa | 80 ksi | A815 Table 2 |
| Elongation (min) | 25% | 25% | A815 Table 2 |
| Hardness (max) | 270 HBW | 28 HRC | A815 Table 2 |
ASTM A815 S32760 vs S32750 Comparison
Both A815 S32760 vs A815 S32750 fittings are covered under the same ASTM A815 standard but differ in alloying additions, PRE, and performance ceiling. Buyers selecting between these grades within A815 should consult ASTM A815 S32750 Pipe Fittings for the S32750 specification page and Super Duplex 2507 S32750 Pipe Fittings for the grade-level page.
| Property | ASTM A815 S32760 | ASTM A815 S32750 | Advantage |
|---|---|---|---|
| Tungsten (W %) | 0.5 - 1.0 | None | S32760 -- higher PRE |
| Copper (Cu %) | 0.5 - 1.0 | None | S32760 -- acid resistance |
| PRE (min) | 41 | 40 | S32760 |
| Tensile (min) | 750 MPa / 109 ksi | 795 MPa / 115 ksi | S32750 -- higher tensile |
| Yield (min) | 550 MPa / 80 ksi | 550 MPa / 80 ksi | Equal |
| Hardness (max) | 270 HBW | 310 HBW | S32760 -- NACE preferred |
| Elongation (min) | 25% | 15% | S32760 -- better ductility |
| Lead Time | Longer -- W/Cu sourcing | Shorter -- wide availability | S32750 |
ASTM A815 S32760 Buttweld Fittings Pressure Rating Chart
Pressure-temperature ratings for UNS S32760 pipe fittings in psig.
| Temperature (°F) | Temperature (°C) | Class 150 | Class 300 - 1/4 to 1 in | Class 300 - 1 1/4 to 2 in | Class 300 - 2 1/2 to 3 in |
|---|---|---|---|---|---|
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | -- | 935 | 750 | 560 |
| 450 | 232 | -- | 725 | 600 | 475 |
| 500 | 260 | -- | 510 | 450 | 385 |
| 550 | 288 | -- | 300 | 300 | 300 |
Testing Requirements per ASTM A815 for S32760 Fittings
| Test | Requirement |
|---|---|
| Solution Anneal | 1050 to 1120 C followed by rapid water quench. Required for each fitting. Cooling rate must prevent sigma phase formation. |
| Hydrostatic Test | Required for all WP class fittings. Pressure per ASTM A815 requirements. |
| Hardness Test | Maximum 270 HBW per A815 Table 2. Critical for NACE MR0175 sour service compliance. |
| Ferrite Content | Typically 35 to 65% ferrite by volume. Tested per ISO 17781 or ASTM E562. Reported on MTR. |
| Charpy V-Notch | When specified on purchase order. Temperature and absorbed energy per project requirements. |
| PMI (XRF) | Positive Material Identification when specified on PO. Results recorded and supplied with documentation package. |
Equivalent Grades for ASTM A815 S32760 Pipe Fittings
| Standard / System | Grade Designation |
|---|---|
| UNS (ASTM) | S32760 |
| ASTM | ASTM A815 WP S32760 |
| ASME | ASME SA815 S32760 |
| EN / DIN | EN 1.4501 per EN 10253-4 |
| Trade Name (Rolled Alloys) | Zeron 100 |
| Trade Name (Ugitech) | UR 52N+ |
For dual-code projects specifying both ASTM and EN standards, Metinox can supply MTRs citing both ASTM A815 WP S32760 and EN 1.4501 on the same certificate.
Applications of ASTM A815 S32760 Pipe Fittings
The combination of W and Cu additions, PRE above 41, and solution-annealed microstructure makes ASTM A815 S32760 pipe fittings the grade of choice for the most demanding specification-driven environments.
- Offshore subsea production: seawater injection and subsea manifold specifications
- High-chloride offshore topsides: W + Cu addition provides margin over S32750
- FGD scrubbers: sulfuric acid and chloride resistance in flue gas desulfurization systems
- Acid chloride chemical processes: sulfuric, phosphoric, and hydrochloric acid resistance
- Desalination brine systems: concentrated brine and elevated temperature chloride attack resistance
- Pharmaceutical cleaning circuits: chloride CIP resistance with solution-annealed surface
- Sour gas: NACE MR0175 Part 3 with hardness limit 270 HBW in solution annealed condition
Buy ASTM A815 Zeron 100 Pipe Fittings from a Certified Manufacturer
Compliant EN 10204 3.1 MTR with UNS S32760 designation. All types: elbow, tee, reducer, cap. ASME B16.9 and MSS-SP-75. Third-party inspection by DNV GL, Bureau Veritas, TUV, Lloyds Register. ISO 9001:2015 certified manufacturer and exporter, India.
Get Competitive Quote NowFrequently Asked Questions About ASTM A815 S32760 Pipe Fittings
Yes. Zeron 100 is the Rolled Alloys trade name. UNS S32760 is the ASTM A815 designation. Always verify the MTR reads ASTM A815 WP S32760, not just the trade name, to confirm standard compliance.
ASTM A815 Table 1 uses UNS designations only. Zeron 100 is not listed in A815. An MTR citing only the trade name does not satisfy ASTM A815 compliance. UNS S32760 must appear on every conforming certificate.
Solution annealing at 1050-1120 C followed by rapid water quench is required for each fitting individually. Cooling rate must be sufficient to prevent sigma phase formation in the duplex microstructure.
ASME SA815 is technically identical to ASTM A815 and used for ASME pressure vessel code projects. Both ASTM A815 and ASME SA815 can appear on the same MTR for dual-code project requirements.
Yes. S32760 is listed in NACE MR0175 Part 3. Requirements are solution annealed condition and hardness at or below 270 HBW. Verify the project sour service matrix for any additional H2S partial pressure restrictions.
ASME B16.9 applies for NPS 1/2 to 24. MSS-SP-75 applies for large bore NPS 14 to 48. ASME B16.11 applies for socket weld and threaded fittings.
Yes with conditions. It must be solution annealed with hardness at or below 270 HBW per NACE MR0175 Part 3. The buyer must check H2S partial pressure limits in the project-specific sour service matrix before confirming grade selection.
