Duplex Steel Pipe Fittings Manufacturer, Stockist & Exporter in India
Metinox Overseas is a leading manufacturer, exporter, and supplier of high-performance duplex pipe fittings engineered for industries that demand exceptional corrosion resistance, superior tensile strength, and long service life. Our premium range of duplex steel pipe fittings is manufactured using top-grade raw materials in compliance with international standards such as ASTM A815, ensuring flawless performance in aggressive pressure and temperature environments. We offer a comprehensive portfolio of duplex steel fittings including elbows, tees, reducers, stub ends, caps, crosses, and custom buttweld solutions for critical industrial applications.
Our specially engineered duplex stainless steel pipe fittings combine the properties of austenitic and ferritic stainless steels, making them highly resistant to pitting, stress corrosion cracking, and crevice corrosion. At Metinox Overseas, we manufacture duplex 2205 pipe fittings, ASTM A815 S31803 fittings, and UNS grade fittings in multiple dimensions and schedules to fulfill the varied needs of oil & gas, petrochemical, marine, desalination, fertilizer, and offshore sectors. With advanced production facilities, strict quality testing, and a commitment to precision engineering, we ensure each fitting delivers unmatched reliability.
As a globally recognized stockist and exporter, Metinox Overseas provides industrial clients with cost-effective and durable duplex pipe fittings designed to perform under extreme service conditions while maintaining dimensional accuracy and leak-proof installation.
Request a QuoteTable of Contents
- Types of Duplex Pipe Fittings
- Specification of Duplex Pipe Fittings
- Chemical Composition
- Mechanical Properties
- Physical Properties
- Duplex Pipe Fittings Sizes
- Duplex Pipe Fittings Price
- HSN Code
- Material Grades
- Dimension Charts
- Export Supply
- Recycling
- 316L vs Duplex 2205
- Equivalent Grades
- Weight Chart
- Pressure Rating
- Ready Stock Availability
- Testing & Quality Certification
- Packing & Delivery
- Applications & Uses
- Why Choose Metinox Overseas
- FAQs About Duplex Pipe Fittings

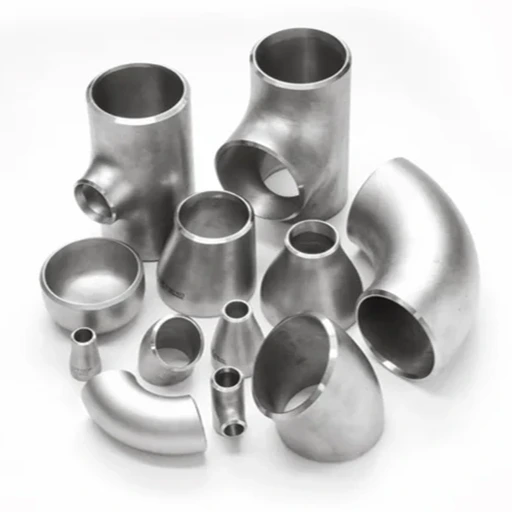

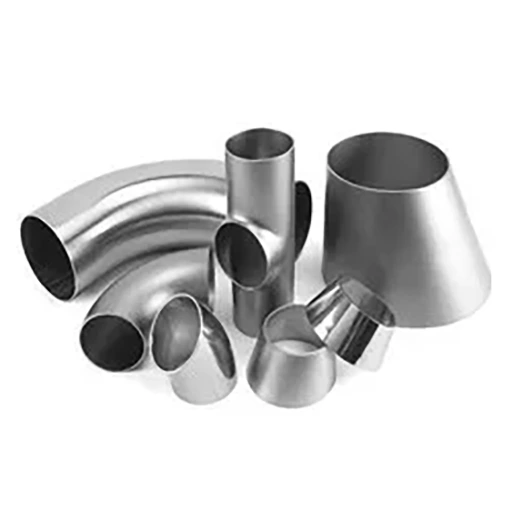

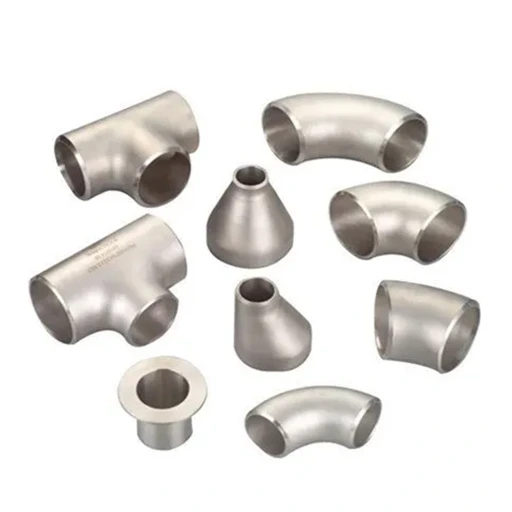

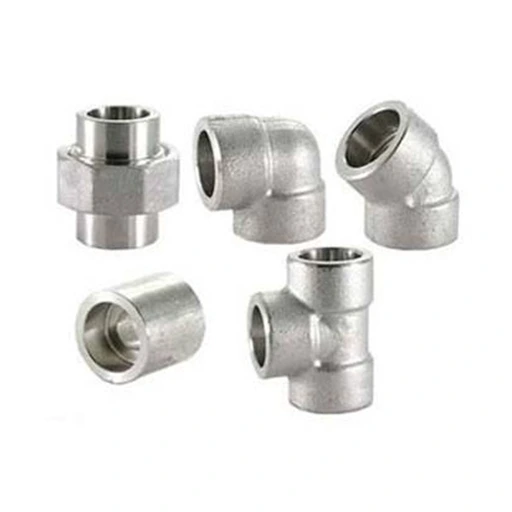

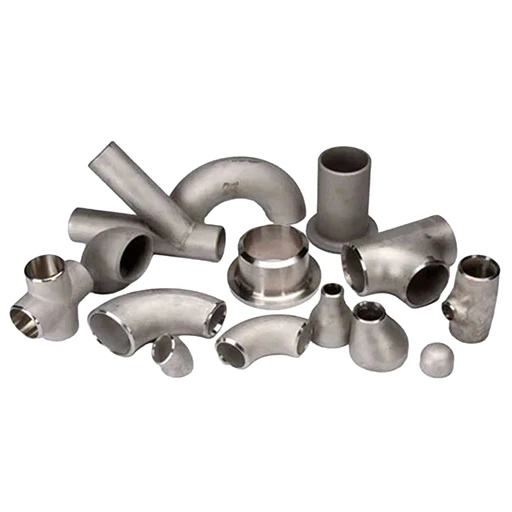

Types of Duplex Pipe Fittings
Specification of Duplex Pipe Fittings
| Specification | Details |
|---|---|
| Product Name | Duplex Pipe Fittings |
| Material Grade | UNS S31803, UNS S32205, UNS S32304 |
| Standard | ASTM A815, ASME SA815 |
| Type | Buttweld / Seamless / Welded |
| Fittings Type | Elbow, Tee, Reducer, Cap, Stub End, Cross, Bend |
| Size Range | 1/2" NB to 48" NB |
| Wall Thickness | SCH 5S to SCH XXS |
| Pressure Rating | SCH10, SCH20, SCH40, SCH80, SCH160 |
| End Connection | Butt Weld / Bevel End |
| Form | Duplex Steel Buttweld Fittings |
| Manufacturing Method | Hot Formed / Cold Formed / Welded |
Chemical Composition of Duplex Pipe Fittings
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| UNS S31803 | 0.03 max | 2.00 max | 0.03 max | 0.02 max | 1.00 max | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | Balance |
| UNS S32205 | 0.03 max | 2.00 max | 0.03 max | 0.02 max | 1.00 max | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | Balance |
| UNS S32304 | 0.03 max | 2.50 max | 0.04 max | 0.03 max | 1.00 max | 21.5 - 24.5 | 3.0 - 5.5 | 0.05 - 0.60 | 0.05 - 0.20 | Balance |
Mechanical Properties of Duplex Pipe Fittings
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation % | Hardness (HB) |
|---|---|---|---|---|
| UNS S31803 | 620 | 450 | 25 | 293 Max |
| UNS S32205 | 655 | 450 | 25 | 293 Max |
| UNS S32304 | 600 | 400 | 25 | 290 Max |
Physical Properties of Duplex Steel S31803 / S32205 Pipe Fittings
The physical characteristics of duplex steel pipe fittings play a major role in determining their thermal stability, pressure-bearing capability, electrical resistance, and suitability for aggressive service environments. Grades UNS S31803 and UNS S32205 are widely preferred because they offer an excellent balance of mechanical strength and thermal conductivity while maintaining lower expansion under fluctuating temperatures. These physical properties make duplex 2205 pipe fittings ideal for heat exchangers, offshore piping, chemical transfer systems, and high-pressure industrial process lines.
Physical Properties of Duplex Steel Pipe Fittings
| Physical Property | Duplex Steel S31803 / S32205 |
|---|---|
| Density | 7.8 g/cm³ |
| Elastic Modulus | 200 GPa |
| Thermal Conductivity | 19 W/m·K |
| Thermal Expansion Coefficient | 13.0 µm/m°C |
| Electrical Resistivity | 850 nΩ·m |
| Specific Heat Capacity | 500 J/kg·K |
| Magnetic Permeability | Slightly Magnetic |
| Melting Range | 1350°C - 1450°C |
Duplex Pipe Fittings Sizes
| Nominal Pipe Size | Outer Diameter | Schedule Available | Fittings Available |
|---|---|---|---|
| 1/2" NB | 21.3 mm | SCH 10S to SCH 80S | Elbow, Tee, Reducer |
| 1" NB | 33.4 mm | SCH 10S to SCH 160 | Elbow, Cap, Stub End |
| 2" NB | 60.3 mm | SCH 20 to SCH XXS | Tee, Bend, Reducer |
| 4" NB | 114.3 mm | SCH 40 to SCH 160 | Full Range |
| 8" NB | 219.1 mm | SCH 40 to SCH XXS | Full Range |
| Up to 48" NB | As per ASME | Custom Thickness | Industrial Custom Fittings |
Duplex 2205 Stainless Steel Buttweld Fittings Price List
Metinox Overseas supplies premium quality Duplex 2205 Pipe Fittings in ASTM A815 UNS S31803 / S32205 grades at highly competitive domestic and export prices. The final price of duplex steel pipe fittings depends on fitting type, wall thickness, material grade, dimensions, finish, and total quantity required. Below is the latest indicative pricing valid for standard SCH 40S fittings.
Duplex Pipe Fittings Latest Price Chart
| Fitting Type | Standard Size | Schedule | Price in USD/Pcs | Price in INR/Pcs | Price in AED/Pcs |
|---|---|---|---|---|---|
| Duplex 90° Elbow | 3/4" to 2.1/2" | SCH 40S | $34 - $65 | ₹2,850 - ₹5,450 | AED 125 - 238 |
| Duplex End Cap | 1" to 8" | SCH 40S | $36 - $218 | ₹3,000 - ₹18,250 | AED 132 - 800 |
| Duplex Equal Tee | 3" to 14" | SCH 40S | $122 - $1060 | ₹10,200 - ₹88,700 | AED 448 - 3890 |
| Duplex Concentric Reducer | 2" x 1" to 6" x 4" | SCH 40S | $58 - $395 | ₹4,850 - ₹33,050 | AED 213 - 1450 |
| Duplex Stub End | 2" to 10" | SCH 40S | $75 - $480 | ₹6,250 - ₹40,150 | AED 275 - 1760 |
Note: Prices valid as of April 2026 and are subject to change based on nickel alloy market trends, order quantity, finish, and testing requirements.
HSN Code of Duplex Steel Pipe Fittings
For domestic invoicing, GST billing, customs export documentation, and international shipment classification, Duplex Steel Pipe Fittings are generally supplied under the following HSN/HS export code.
| Product Description | HSN Code |
|---|---|
| Duplex Steel Buttweld Pipe Fittings | 73072290 |
HSN Code 73072290 falls under pipe fittings of iron or steel, threaded or non-threaded, of alloy steel and other stainless steel categories used for industrial piping applications.
Duplex Fittings Material Grades
| Duplex Stainless Steel Standard | Werkstoff Number | UNS Grade |
|---|---|---|
| Duplex 2205 | 1.4462 | S32205 |
| Duplex 2205 Low Carbon | 1.4462 | S31803 |
| Duplex 2304 | 1.4362 | S32304 |
Duplex 2205 Elbow Dimensions Chart
| Nominal Size (Inch) | Outside Diameter (mm) | Long Radius 45° Center | Long Radius 90° Center | 3D Radius 45° Center | 3D Radius 90° Center |
|---|---|---|---|---|---|
| 3/4 | 26.7 | 19 | 38 | 24 | 57 |
| 1 | 33.4 | 22 | 38 | 31 | 76 |
| 1.1/4 | 42.2 | 25 | 48 | 39 | 95 |
| 1.1/2 | 48.3 | 29 | 57 | 47 | 114 |
| 2 | 60.3 | 35 | 76 | 63 | 152 |
| 2.1/2 | 73.0 | 44 | 95 | 79 | 190 |
| 3 | 88.9 | 51 | 114 | 95 | 229 |
| 4 | 114.3 | 64 | 152 | 127 | 305 |
| 6 | 168.3 | 95 | 229 | 189 | 457 |
| 8 | 219.1 | 127 | 305 | 252 | 610 |
| 10 | 273.0 | 159 | 381 | 316 | 762 |
| 12 | 323.8 | 190 | 457 | 378 | 914 |
| 14 | 355.6 | 222 | 533 | 441 | 1067 |
Duplex 2205 Equal Tee Dimensions
| NPS | OD (mm) | Center to End Outlet (M) | Center to End Run (C) |
|---|---|---|---|
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 48 | 48 |
| 1.1/2 | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2.1/2 | 73.0 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273.0 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
Duplex WNR 1.4462 Reducer Size Chart
| Reducer Size (Inch) | End to End H (mm) | Small End P (mm) | Large End D (mm) |
|---|---|---|---|
| 3/4 x 1/2 | 38 | 21.3 | 26.7 |
| 1 x 1/2 | 51 | 21.3 | 33.4 |
| 1.1/4 x 3/4 | 51 | 26.7 | 42.2 |
| 1.1/2 x 1 | 64 | 33.4 | 48.3 |
| 2 x 1.1/2 | 76 | 48.3 | 60.3 |
| 2.1/2 x 2 | 89 | 60.3 | 73.0 |
| 3 x 2 | 89 | 60.3 | 88.9 |
| 4 x 3 | 102 | 88.9 | 114.3 |
| 5 x 4 | 127 | 114.3 | 141.3 |
| 6 x 5 | 140 | 141.3 | 168.3 |
| 8 x 6 | 152 | 168.3 | 219.1 |
| 10 x 8 | 178 | 219.1 | 273.0 |
| 12 x 10 | 203 | 273.0 | 323.8 |
| 14 x 12 | 330 | 323.8 | 355.6 |
| 16 x 14 | 356 | 355.6 | 406.4 |
| 18 x 16 | 381 | 406.4 | 457.0 |
| 20 x 18 | 508 | 457.0 | 508.0 |
| 24 x 22 | 508 | 559.0 | 610.0 |
Export Supply of Duplex 2205 Pipe Fittings
Metinox Overseas is a global exporter of premium quality Duplex 2205 Pipe Fittings, supplying elbows, reducers, tees, caps, and custom buttweld fittings in polished, pickled, and machine-finished conditions. All products are manufactured as per ASTM A815 / ASME SA815 standards and are available with complete mill test certification, PMI testing, and export packaging for worldwide shipment.
Can Duplex Steel Pipe Fittings Be Recycled?
Yes, duplex steel fittings are considered highly sustainable engineering products because they are fully recyclable without losing their metallurgical properties. The alloy composition of chromium, nickel, molybdenum, and iron makes these fittings valuable in the scrap recycling industry.
| Recycling Factor | Details |
|---|---|
| Recyclability Rate | 100% recyclable |
| Main Alloy Elements | Chromium, Nickel, Iron, Molybdenum |
| Recycling Process | Melted, refined, and re-manufactured |
| Energy Saving | Lower than virgin alloy production |
| Eco Advantage | Reduces industrial waste and mining |
| Scrap Recovery Value | High commercial scrap value |
| Reusability | Can be reused in pipes, bars, flanges, fittings |
| Compliance | Meets ASTM / ASME sustainability norms |
Stainless Steel 316L vs Duplex 2205 Pipe Fittings
Selecting the correct material grade is essential for long-term piping system performance. While Stainless Steel 316L is commonly used for general corrosion resistance, Duplex 2205 Pipe Fittings provide significantly higher mechanical strength, superior chloride corrosion resistance, and longer service life in aggressive industrial environments.
| Comparison Factor | Duplex 2205 Pipe Fittings | Stainless Steel 316L Pipe Fittings |
|---|---|---|
| UNS Grade | S32205 / S31803 | S31603 |
| Stainless Steel Family | Duplex Stainless Steel | Austenitic Stainless Steel |
| Minimum Tensile Strength | 620 MPa | 485 MPa |
| Average Service Life | 25-30 Years | 20-25 Years |
| Recommended Temperature | -50°C to 300°C | -196°C to 500°C |
| Corrosive Chemical Media | Highly Suitable | Moderate Suitability |
| Density | 7.8 g/cm³ | 8.0 g/cm³ |
| Thermal Conductivity | 19 W/m·K | 16 W/m·K |
| Chloride Stress Corrosion Resistance | Excellent | Comparatively Lower |
| Approx Price in India | USD 6-8/Kg | USD 4-5/Kg |
| Melting Point | 1350°C - 1450°C | 1371°C - 1399°C |
| Common Applications | Oil & Gas, Marine, Chemical Plants, Offshore | Medical, Food, General Chemical Systems |
Equivalent Grades of Duplex Steel Pipe Fittings
Duplex stainless steel pipe fittings are manufactured in globally accepted material designations to ensure easy interchangeability across ASTM, EN, JIS, ISO, BS, and DIN procurement standards. The most widely used grades in industrial piping are UNS S31803 and UNS S32205, both commonly referred to as Duplex 2205. These grades share similar chromium-nickel-molybdenum chemistry, with S32205 offering a slightly tighter nitrogen-controlled composition for improved corrosion resistance and mechanical consistency.
| Standard System | Duplex UNS S31803 | Duplex UNS S32205 |
|---|---|---|
| UNS Number | S31803 | S32205 |
| Werkstoff Nr. | 1.4462 | 1.4462 |
| ASTM Forging Grade | F51 | F60 |
| EN Designation | X2CrNiMoN22-5-3 | X2CrNiMoN22-5-3 |
| JIS Equivalent | SUS 329J3L | SUS 329J3L |
| British Standard | 318S13 | 318S13 |
| ISO Grade | X2CrNiMoN22-5-3 | X2CrNiMoN22-5-3 |
| Common Trade Name | Duplex 2205 | Duplex 2205 High N |
| Material Difference | Standard Duplex Grade | Higher Nitrogen Controlled Version |
Duplex Pipe Fittings Weight Chart
| Nominal Size (Inch) | Approx Weight (Kg/Pcs) |
|---|---|
| 1/2 | 0.08 |
| 3/4 | 0.11 |
| 1 | 0.15 |
| 1.1/4 | 0.25 |
| 1.1/2 | 0.39 |
| 2 | 0.66 |
| 2.1/2 | 1.37 |
| 3 | 2.19 |
| 4 | 4.12 |
| 5 | 6.89 |
| 6 | 10.70 |
| 8 | 21.60 |
| 10 | 37.00 |
| 12 | 61.00 |
| 14 | 85.10 |
| 16 | 121.00 |
| 18 | 176.00 |
| 24 | 377.00 |
Pressure Rating of Duplex Steel Buttweld Fittings
Due to their high yield strength, Duplex 2205 Pipe Fittings are capable of handling substantially higher internal pressure compared to standard stainless steel fittings.
| NPS (Inch) | Schedule | OD (Inch) | Wall Thickness (Inch) | Pressure Rating at 300°F (PSIG) | Pressure Rating at 400°F (PSIG) | Pressure Rating at 500°F (PSIG) |
|---|---|---|---|---|---|---|
| 1.1/2 | 40 | 1.900 | 0.145 | 1629 | 1512 | 1404 |
| 1.1/2 | 80 | 1.900 | 0.200 | 2303 | 2138 | 1986 |
| 2 | 40 | 2.375 | 0.154 | 1371 | 1272 | 1182 |
| 2 | 80 | 2.375 | 0.218 | 1985 | 1843 | 1712 |
| 3 | 40 | 3.500 | 0.216 | 1301 | 1208 | 1122 |
| 3 | 80 | 3.500 | 0.300 | 1844 | 1712 | 1590 |
| 4 | 40 | 4.500 | 0.237 | 1102 | 1023 | 950 |
| 4 | 80 | 4.500 | 0.337 | 1596 | 1482 | 1377 |
| 6 | 40 | 6.625 | 0.280 | 877 | 814 | 756 |
| 6 | 80 | 6.625 | 0.432 | 1379 | 1280 | 1189 |
| 8 | 40 | 8.625 | 0.322 | 771 | 716 | 665 |
| 8 | 80 | 8.625 | 0.500 | 1218 | 1131 | 1050 |
Duplex 2205 Fittings Dimensional Tolerances
| Parameter | Tolerance Range |
|---|---|
| Outside Diameter at Bevel | +1.0 mm to +6.0 mm |
| Inside Diameter at End | ±0.08 mm to ±6.0 mm |
| Center to End LR Elbow | ±2 mm to ±5 mm |
| Center to End 3D Elbow | ±3 mm to ±6 mm |
| Wall Thickness | Not Less Than 87.5% of Nominal |
| Bevel Accuracy | As per ASME B16.9 |
| Ovality | Within Standard Permissible Limits |
Ready Stock Availability of Duplex Steel Pipe Fittings
Metinox Overseas maintains a large inventory of export-quality duplex steel pipe fittings in ASTM A815 UNS S31803 / S32205 grades for urgent domestic and international delivery.
| Grade | Duplex Fittings Type | Size Range | Available Stock |
|---|---|---|---|
| S31803 | Duplex Long/Short Radius Bend | 1/2" to 10" | 350 Pcs |
| S31803 | Duplex 45° Elbow | 1/2" to 14" | 300 Pcs |
| S31803 | Duplex 90° Elbow | 1/2" to 14" | 500 Pcs |
| S32205 | Duplex Reducing Tee | 1/2" to 14" | 200 Pcs |
| S32205 | Duplex Equal Tee | 1/2" to 14" | 400 Pcs |
| S31803 | Duplex Eccentric Reducer | 1/2" to 14" | 250 Pcs |
| S31803 | Duplex Concentric Reducer | 1/2" to 14" | 250 Pcs |
| S32205 | Duplex Cross | 1/2" to 4" | 100 Pcs |
| S31803 | Duplex End Cap | 1/2" to 24" | 150 Pcs |
| S32205 | Duplex Stub End | 1/2" to 24" | 350 Pcs |
Testing & Quality Certification of Duplex Steel Pipe Fittings
All ASTM A815 duplex steel pipe fittings manufactured and supplied by Metinox Overseas are subjected to strict quality inspection and material verification procedures before dispatch to ensure complete dimensional accuracy, corrosion resistance, and pressure integrity. Each order is supplied with full traceability documentation and customer-required inspection reports.
Standard Testing Performed on Duplex Pipe Fittings
- Positive Material Identification (PMI) Testing
- Chemical Composition Analysis by Spectro Testing
- Mechanical Testing - Tensile, Yield & Elongation as per ASTM A370
- Hardness Testing (Brinell / Vickers)
- Hydrostatic Pressure Testing
- Intergranular Corrosion Test (IGC) as per ASTM A923
- Dimensional Inspection as per ASME B16.9
- Visual Surface and Finish Inspection
- Radiographic Test (RT) / Dye Penetrant Test (DPT) when required
- EN 10204 3.1 Mill Test Certification supplied with all orders
Quality Assurance Documents Available
| Certification / Test Document | Availability |
|---|---|
| EN 10204 3.1 Mill Test Certificate | Available |
| Raw Material Test Report | Available |
| PMI Test Report | Available |
| Heat Number Traceability Report | Available |
| Third Party Inspection Certificate | On Request |
| Fumigation / Packing List | Available |
| Commercial Invoice & COO | Available |
Packing & Delivery of Duplex Steel Pipe Fittings
To ensure damage-free domestic and international transportation, all duplex steel pipe fittings are packed using moisture-protected and export-safe packing methods. Each fitting is individually protected to maintain bevel accuracy, machined finish, and surface integrity during handling, warehousing, and shipment.
Standard Packing Details
- Polybag wrapped bundles for small size fittings
- Bubble sheet or foam protection for machined surfaces
- Plastic bevel caps fitted on both ends
- Packed in fumigated wooden crates or export-grade corrugated cartons
- Heat number and grade identification tags attached on each bundle
- Suitable seaworthy packing for air, sea, and road shipment
Export Marking Information
Each fitting is marked with:
- Material Grade (UNS S31803 / UNS S32205)
- Nominal Size & Schedule
- ASTM A815 / ASME SA815 Standard
- Heat Number
- Batch Number
- Metinox Overseas Brand Identification
Delivery Lead Time
| Order Type | Standard Dispatch Time |
|---|---|
| Ex-Stock Duplex Pipe Fittings | 3 - 7 Working Days |
| Bulk Production Orders | 2 - 4 Weeks |
| Custom / Large Diameter Orders | 3 - 6 Weeks |
| Export Documentation Shipment | Immediate with Dispatch |
Applications & Uses of Duplex Pipe Fittings
- Offshore Oil & Gas Pipeline Systems: Duplex 2205 fittings are specified for subsea pipeline tees, reducers, and elbows in sour gas and wet CO2 service environments. The PREN approximately 35 and yield strength of 450 MPa min allow wall thickness reduction vs 316L, saving weight on deepwater structures where every kilogram counts.
- Seawater Desalination Projects: The chloride pitting resistance of Duplex S31803 and S32205 makes these grades the standard specification for high-pressure brine manifolds, heat exchanger inlet/outlet headers, and reverse osmosis membrane housing connections in SWRO plants.
- Chemical Processing and Acid Transfer Lines: Applied in sulphuric acid, phosphoric acid, and organic acid service at elevated temperatures where 316L reaches its corrosion resistance limits. The balanced duplex microstructure resists both general corrosion and localised attack.
- Heat Exchangers and Pressure Vessels: Duplex fittings are used for nozzle and header connections on shell-and-tube heat exchangers. The high yield strength allows thinner walls, improving thermal efficiency while maintaining pressure containment.
- Fertilizer Manufacturing Units: Applied in urea synthesis loops, ammonium nitrate processing, and phosphoric acid circuit headers where duplex grades resist the combination of high temperature, concentrated acids, and halide contamination.
Why Choose Metinox Overseas for Duplex Steel Pipe Fittings
Metinox Overseas is recognized as a dependable manufacturer, stockholder, and exporter of premium quality duplex steel pipe fittings engineered for critical industrial applications. Our manufacturing and supply process is built around international quality assurance, complete material traceability, and export-compliant documentation to meet the procurement standards of EPC contractors, refineries, offshore companies, and global distributors.
Verified Manufacturing & Quality Credentials
- ISO 9001:2015 Certified Manufacturing and Quality Management System
- All Duplex Pipe Fittings supplied with EN 10204 3.1 Mill Test Certificates
- 100% PMI (Positive Material Identification) Testing available on every order
- Hydro Testing, Hardness Testing, and Dimensional Inspection before dispatch
- NACE MR0175 / ISO 15156 compliant material available for sour gas service
- Third Party Inspection support by Bureau Veritas, TUV, DNV, SGS, and Intertek on request
- Custom marking, heat number traceability, and export documentation provided
- Ready stock maintained for urgent domestic and international delivery
- Export supply network across Middle East, Europe, Southeast Asia, and North America
- Seaworthy wooden box, fumigated pallet, and damage-proof export packaging
FAQs About Duplex Pipe Fittings
Duplex pipe fittings are high-strength corrosion-resistant fittings manufactured from duplex stainless steel grades such as UNS S31803 and UNS S32205.
ASTM A815 is the standard specification covering wrought ferritic, ferritic/austenitic, and martensitic stainless steel buttweld fittings.
These fittings are commonly used in offshore, petrochemical, marine, and high-pressure chemical processing applications.
Both are duplex 2205 grades sharing the same DIN Werkstoff number (1.4462). S32205 specifies a tighter nitrogen range (0.14-0.20%) vs S31803 (0.08-0.20%), resulting in slightly higher and more consistent corrosion resistance. S32205 is widely considered the preferred grade. In practice, most mills supply material meeting both specifications simultaneously.
The PREN (Pitting Resistance Equivalent Number) of Duplex 2205 (S31803/S32205) is approximately 34-36, calculated as PREN = Cr + 3.3Mo + 16N. This significantly exceeds austenitic 316L, making duplex grades the preferred choice for chloride-containing environments such as seawater and brine.
ASTM A815 is the standard specification for wrought ferritic, ferritic/austenitic duplex, and martensitic stainless steel buttweld pipe fittings. UNS S31803 is the duplex stainless steel grade designation for the 22Cr-5Ni-3Mo-N composition, also known as Duplex 2205.
Enquire Now
Get pricing within 24 hours!
