ASTM A815 S32750 Pipe Fittings Manufacturer
Metinox Overseas is a leading global stockholder & manufacturer specializing in high performance piping solutions. Our stock of ASTM A815 S32750 super duplex fittings is the epitome of engineering excellence. As procurement engineers, we know that you demand absolute compliance with international standards. We are the most renowned ASTM A815 S32750 pipe fittings manufacturer in India, offering completely certified solutions in high-pressure and corrosive environments. Production of ASTM A815 S32750 pipe fittings to the strictest of offshore and chemical processing industry requirements is ensured by our production facility. By working with Metinox Overseas, you'll have a partner that strives to provide quick delivery times, low ASTM A815 S32750 fittings price per piece, and a full range of technical assistance. We are the exclusive ASTM A815 S32750 fittings supplier/exporter for worldwide critical infrastructure project.
Table of Contents
- What Is ASTM A815
- ASTM A815 S32750 Pipe Fittings Specifications
- Types of ASTM A815 S32750 Pipe Fittings
- ASTM A815 WP vs SR Class Comparison
- ASTM A815 S32750 Chemical Composition
- ASTM A815 S32750 Mechanical Properties
- Equivalent Grades of Super Duplex UNS S32750
- Heat Treatment and Testing Requirements per ASTM A815
- Applications of ASTM A815 S32750 Fittings
- Related Products
- Frequently Asked Questions
What Is ASTM A815?
ASTM A815 specifies these wrought ferritic, ferritic/austenitic and martensitic stainless steel Pipe Fittings. This standard, also known as its ASME equivalent ASME SA815 S32750 fittings, controls the production of seamless and welded construction fittings. For systems that demand high strength and corrosion resistance properties of Super Duplex 2507, these A815 super duplex S32750 fittings are a must. At Metinox Overseas, we make sure that our ASTM A815 S32750 pipe fittings are manufactured of the highest quality standards, which is an important part of this standard, and ensure that they are able to provide a reliable connection between your Super Duplex Stainless Steel Pipes S32750 and the remainder of your piping system. The specification guarantees that Super Duplex Pipe Fittings can withstand high mechanical stress and chemical exposure.
ASTM A815 S32750 Pipe Fittings Specifications
| Specification Category | Details / Value |
|---|---|
| Size Range | ASTM A815 UNS S31803 Seamless Fittings: 1/2" - 10"; ASME B16.9 ASTM A815 WPS 31803 Butt Weld Fittings: 1/2" - 48" |
| Standards | ASME B16.9, ASME B16.11, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS10 |
| Available Thickness | Schedule 5S, 10S, 40S, 80S, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Main Types | Seamless / Welded / Fabricated |
| Thread | NPT, BSPT, BSPP |
| Type | DN15-DN1200 |
| End | Threaded, welding, JIC |
| Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Connection | Welding |
| Test Certificates | EN 10204/3.1B, raw materials certificate, 100% radiography test report, third party inspection report, etc. |
| UNS No | UNS S31803, UNS S32205, UNS S32750, UNS S32760, UNS S32950 |
| Grades | ASTM A815 UNS S31803, UNS S32205, UNS S32750, UNS S32760, Duplex 2205, Super Duplex 2507, 4501 Pipe Fittings |
ASTM A815 S32750 Pipe Fittings Types
ASTM A815 Super Duplex Steel 45° Elbow
ASTM A815 Super Duplex Steel 90° Elbow
ASTM A815 Super Duplex Steel 180° Elbow

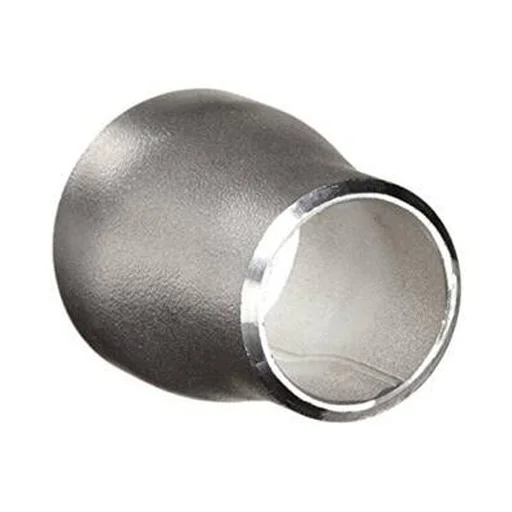

ASTM A815 Super Duplex Steel Concentric Reducer
ASTM A815 Super Duplex Steel Eccentric Reducer
ASTM A815 Super Duplex Steel End Pipe Cap
ASTM A815 Super Duplex Steel Equal Cross
ASTM A815 Super Duplex Steel Equal Tee

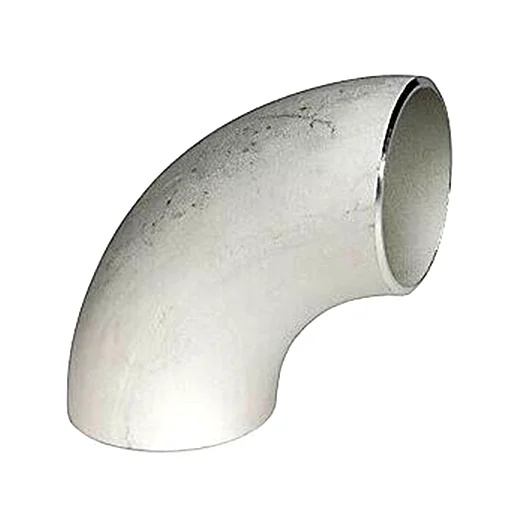

ASTM A815 Super Duplex Steel LR Elbow
ASTM A815 Super Duplex Steel Reducing Tee
ASTM A815 Super Duplex Steel SR Elbow
ASTM A815 Super Duplex Steel Stub End
Need Technical Assistance with WP vs SR Classes?
Metinox Overseas provides expert consultancy and high quality ASTM A815 S32750 pipe fittings.
Request a Quote TodayASTM A815 WP vs SR Fitting Class
| Parameter | WP Class | SR Class |
|---|---|---|
| Wall Thickness Basis | Full ASME B16.9 Wall | Schedule wall matching pipe |
| Burst Test Factor | 1.00 (Full Burst) | Reduced factor |
| Pressure Rating | 100 percent of pipe | Lower than pipe rating |
| Application | High pressure process piping | Lower pressure / utility lines |
| Ordering Note | Most common for S32750 | Must be explicitly specified |
ASTM A815 S32750 Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 - 26.00 | 3.00 - 5.00 | 6.00 - 8.00 | 0.24 - 0.32 | 58.095 min |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 - 26.00 | 3.00 - 4.00 | 6.00 - 8.00 | 0.20 - 0.30 | 57.61 min |
ASTM A815 S32750 Mechanical Properties
| Grades | Density (g/cm3) | Density (lb/in3) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|---|
| S32750 / S32760 | 7.8 | 0.281 | 1350 | 2460 |
Typical ASTM A815 S32750 mechanical requirements include minimum tensile strength of 795 MPa, minimum yield strength of 550 MPa, 15 percent elongation, and maximum hardness of 310 HBW.
Equivalent Grades of Super Duplex Steel UNS S32750 Pipe Fittings
| Standard | EU / EN | USA | France AFNOR | Germany DIN | Sweden SS | GB |
|---|---|---|---|---|---|---|
| UNS S32750 | X2CrNiMoN25-7-4 (1.4410) | S32750 | Z3CND25-06Az | 1.4410 | 2328 | 022Cr25Ni7Mo4N |
Heat Treatment and Testing Requirements per ASTM A815
Every ASTM A815 S32750 pipe fittings unit undergoes rigorous thermal processing. Solution annealing is performed at temperatures between 1040 and 1100 degrees Celsius, followed by a rapid water quench. This prevents the formation of intermetallic phases like sigma, which can embrittle the material. We conduct ferrite content verification per ISO 17781 to ensure a balance of 35 to 65 percent. Additionally, we provide Charpy V notch impact testing at minus 40 degrees Celsius and 100 percent hydrostatic testing when specified.
Applications of ASTM A815 S32750 Fittings
These fittings are primarily used where corrosion resistance and high yield strength are non negotiable.
- Offshore Oil and Gas: Subsea pipelines and manifolds.
- Desalination Plants: High chloride water handling.
- Chemical Processing: Handling organic and inorganic acids.
- FGD Scrubbers: Flue gas desulfurization in power plants.
Secure the Best Price for ASTM A815 S32750 Pipe Fittings Today!
Metinox Overseas is ready to fulfill your high volume or custom specification orders. As a trusted ASTM A815 S32750 pipe fittings manufacturer, we provide global shipping and full metallurgical certification.
Get an Instant QuoteFrequently Asked Questions
ASTM A815 is the standard for wrought ferritic and austenitic stainless steel pipe fittings. It covers duplex and super duplex grades using WP or SR classes for pressure ratings under ASME B16.9 and MSS-SP-75.
WP class is standard wall with full burst test factors. SR class stands for schedule reduced, matching pipe wall thickness but offering a lower pressure rating. WP is the preferred standard for high-pressure process piping.
It covers duplex grades like S31803 and S32205, super duplex grades S32750 and S32760, and 6-moly grades like S31254. Each grade is listed in Table 1 of the ASTM A815 specification.
S32750 fittings must undergo solution annealing at 1040-1100°C followed by a rapid water quench. This ensures proper phase balance and prevents brittle intermetallic phases like sigma.
Required properties include a minimum tensile strength of 795 MPa, yield strength of 550 MPa, 15% elongation, and a maximum hardness of 310 HBW.
Yes, they are compliant if solution annealed and hardness is below 310 HBW. These fittings are widely used in offshore sour oil and gas applications as permitted by NACE MR0175 Part 3.
S32750 is standard Super Duplex 2507. S32760, also known as Zeron 100, includes tungsten and copper for enhanced resistance in specific aggressive acidic environments. Both are covered under A815.
Markings must include the manufacturer mark, ASTM A815, UNS grade, class (WP or SR), heat number, and size/schedule. This ensures full material traceability for the user.
