Metinox Overseas is a leading manufacturer of Stainless Steel Flanges in India, which produces precision-engineered SS flanges to suit the critical industrial uses. We have a history of excellence in the production of high-quality stainless steel flanges, and we are over 20 years old with an ISO 9001: 2008 certification. We are well known due to our quality, new production lines and following of international standards, that is why we are a partner of choice by clients all over the world.
We manufacture flanges that meet the requirements of ANSI B16.5, ASME B16.47, MSS-SP44, API, AWWA-C207, DIN, BS, and other specifications around the world under our state-of-the-art manufacturing plants in Mumbai. We also have a wide product variety of Stainless steel grades, i.e., SS 304, 304L, 304H, 316, 316L, 316H, 316Ti, 321, 321H, 347, 347H, 310, 317L, and 904L. These come in all types such as Slip-On, Weld Neck, Blind, Threaded, Socket Weld and Lap Joint flanges in pressure classes of 150 LBS-2500 LBS.
In Metinox Overseas, all stainless steel flanges are produced under stringent guidance and with high-quality raw material and high technology so that the corrosion resistance and mechanical strength were superior. We keep a large inventory of common sizes and grades, so that we can supply clients on a global basis very fast. We have been able to establish our reputation in being a reliable ally in the various industries of the pharmaceutical, food processing, oil and gas, and chemical industries in India and other markets worldwide due to our focus on competitive pricing, technical excellence and time-based delivery.
Table of Contents
Stainless Steel Flanges by Grade
.webp)

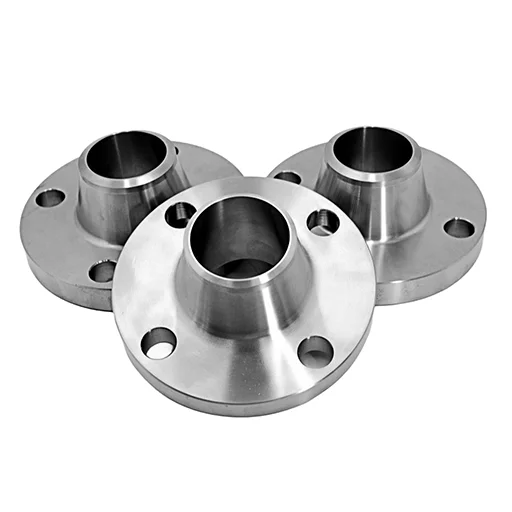

SS 304 Flanges
.webp)

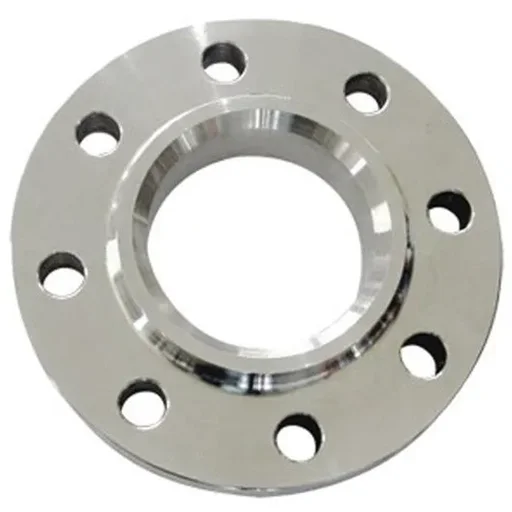

SS 304L Flanges
.webp)
SS 304H Flanges
SS 316 Flanges
SS 316L Flanges
SS 316H Flanges
SS 316Ti Flanges
SS 321 Flanges
SS 321H Flanges
SS 347 Flanges
SS 347H Flanges

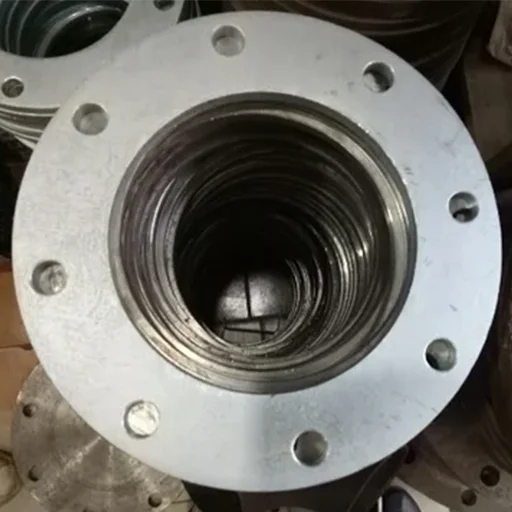

SS 310 Flanges
SS 317L Flanges
SS 904L Flanges
Stainless Steel Flanges Specification
Our Stainless Steel Flanges are manufactured to precise dimensional standards. Below are the standard specifications we follow:
| Specification | Details |
| Flange Types | Slip-On, Weld Neck, Blind, Threaded, Socket Weld, Lap Joint, Ring Type Joint, Orifice, Spectacle Blind |
| Pressure Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, PN6, PN10, PN16, PN25, PN40, PN64 |
| Size Range | 1/2" (15 NB) to 48" (1200 NB) |
| Face Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF) |
| Standards | ANSI B16.5, ASME B16.47 Series A & B, MSS-SP44, API 6A, DIN, BS, EN 1092-1 |
Stainless Steel Grades We Manufacture
Metinox Overseas manufactures premium quality Stainless Steel Flanges in a wide range of austenitic and ferritic grades to suit various industrial environments.
| Grade | Applications & Features |
| SS 304 / 304L / 304H | Most versatile grade; excellent corrosion resistance; used in general piping, food processing, and chemical containers. |
| SS 316 / 316L / 316H / 316Ti | Added molybdenum for superior chloride resistance; ideal for marine environments, pharmaceuticals, and chemical processing. |
| SS 321 / 321H | Titanium stabilized; prevents carbide precipitation; used in high-temperature applications and aircraft exhaust stacks. |
| SS 347 / 347H | Niobium stabilized; excellent intergranular corrosion resistance; used in high-temp gaskets, expansion joints, and rocket engine parts. |
| SS 310 / 310S | High chromium and nickel content; exceptional resistance to oxidation at high temperatures; used in furnace parts and heat exchangers. |
| SS 317 / 317L | Higher molybdenum content than 316; increased resistance to chemical attack; used in flue gas desulfurization systems. |
| SS 904L | Super austenitic stainless steel; high resistance to strong acids like sulfuric acid; used in pollution control and acid processing plants. |
Chemical Composition
The chemical composition of our Stainless Steel Flanges determines their corrosion resistance and mechanical durability.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Other |
| 304/304L | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18.0-20.0 | - | 8.0-10.5 | N: 0.10 max |
| 316/316L | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 16.0-18.0 | 2.0-3.0 | 10.0-14.0 | N: 0.10 max |
| 321 | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 17.0-19.0 | - | 9.0-12.0 | Ti: 5xC min |
| 347 | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 17.0-19.0 | - | 9.0-13.0 | Nb: 10xC min |
| 310 | 0.25 max | 2.0 max | 1.5 max | 0.045 max | 0.03 max | 24.0-26.0 | - | 19.0-22.0 | - |
| 317L | 0.03 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18.0-20.0 | 3.0-4.0 | 11.0-15.0 | - |
| 904L | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 19.0-23.0 | 4.0-5.0 | 23.0-28.0 | Cu: 1.0-2.0 |
Mechanical Properties
Mechanical properties ensure the flange can withstand the required pressure and temperature loads.
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) 0.2% Offset | Elongation (%) | Hardness (HB max) |
| 304 | 515 | 205 | 40 | 201 |
| 304L | 485 | 170 | 40 | 201 |
| 316 | 515 | 205 | 40 | 217 |
| 316L | 485 | 170 | 40 | 217 |
| 321 | 515 | 205 | 40 | 217 |
| 347 | 515 | 205 | 40 | 201 |
| 310 | 515 | 205 | 40 | 217 |
| 904L | 490 | 220 | 35 | 220 |
Types of Stainless Steel Flanges
There are many different varieties of stainless steel flanges that we produce so that we can meet the needs of many different connection requirements:
Slip-On Flanges
Slide along the pipe, and are fillet-welded. Easy to align and lower cost.
Weld Neck Flanges
These are butt-welded to the pipe, and they reinforce the structure. Ideal for high pressure.
Blind Flanges
Solid plates to cover the end of a piping system or vessel opening.
Socket Weld Flanges
Pipe is put into a socket and fillet-welded. Applied to the small bore of high-pressure piping.
Threaded Flanges
Clamped on the pipe without welding. Appropriate in low-pressure or dangerous places.
Lap Joint Flanges
Lap joint flanges are used with stub ends. The flange can be easily rotated to align bolts.
Orifice Flanges
These are applied in conjunction with orifice meters to find out the flow rates of liquids or gases.
Long Weld Neck Flanges
Have a long neck, which is mostly applied on columns and vessels.
Reducing Flanges
It is used to join pipes of varying sizes without using a reducer.
Spectacle Blind Flanges
Safety equipment intended to isolate parts of pipe or equipment.
Application and Uses
Metinox Overseas Stainless Steel Flanges have found their way in many industries because of their durability and corrosion resistance. The industries heavily using our products are the pharmaceutical industries, where sterile processing is involved, the food and beverage industries, where hygienic piping is involved, chemical processing plants where corrosive media are controlled, oil and gas refineries where high-pressure lines are involved, and petrochemical complexes. They are also critical in water treatment plants, dairy production, marine and shipbuilding, and power generation plants, such as the nuclear and thermal industry.
Pharmaceutical Industries
Sterile processing equipment and sanitary piping systems requiring high purity and corrosion resistance.
Food & Beverage
Hygienic piping systems for food processing, dairy production, and beverage manufacturing facilities.
Chemical Processing
Corrosive media handling in chemical plants, acid processing, and pollution control systems.
Oil & Gas Refineries
High-pressure pipeline connections in upstream, midstream, and downstream operations.
Petrochemical Complexes
High-temperature and high-pressure applications in refining and petrochemical processing.
Water Treatment Plants
Potable water systems, wastewater treatment, and desalination plant piping connections.
Looking for High-Quality Stainless Steel Flanges?
Choose Metinox Overseas - Your Reliable Stainless Steel Flanges Manufacturer & Exporter.
Let us support your projects with quality, precision, and performance.
