Duplex 2304 Pipe Fittings (UNS S32304) Manufacturer and Supplier
The Duplex 2304 Pipe Fitting (UNS S32304) is a member of the lean duplex family of stainless steels, engineered to provide an optimum balance of strength, corrosion resistance and economy. The ferrite-austenite mixture gives it almost twice the strength of commonly used stainless steel types such as 304L and 316L while retaining useful corrosion resistance under moderate conditions. With 23 percent chromium and 4 percent nickel with a small amount of molybdenum, Duplex 2304 is commonly applied in construction, pressure vessel, and structural work. These fittings are produced to exacting specifications by Metinox Overseas, making them reliable and efficient for industries that demand strong, cost-effective piping systems.
Request a Quote now!Table of Contents
Specifications of Duplex 2304 Pipe Fittings (UNS S32304)
| Specification Parameter | Details / Value |
|---|---|
| Material Grades | Duplex Steel 2304 / S32304 (WNR. 1.4362); S31803 / S32205 / A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Standard | ASTM A182 & ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | 1/8" NB to 4" NB |
| Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Form | S/W (Socket Weld) & SCRD (Threaded/Screwed) |
| Types Available | Elbow, Tee, Union, Cross, CAP, Swage Nipples, Coupling, Plug, Bush, Sockolet, Weldolet, Thredolet, Elbolet, Nipolet, Lateral Tee |
Chemical Composition of Duplex 2304 Pipe Fittings (UNS S32304)
| Element Symbol | Element Name | Minimum (wt %) | Maximum (wt %) |
|---|---|---|---|
| C | Carbon | -- | 0.030% |
| Si | Silicon | -- | 1.00% |
| Mn | Manganese | -- | 2.00% |
| S | Sulfur | -- | 0.015% |
| P | Phosphorus | -- | 0.035% |
| Cr | Chromium | 22.00% | 24.00% |
| Ni | Nickel | 3.50% | 5.50% |
| Mo | Molybdenum | 0.10% | 0.60% |
| N | Nitrogen | 0.05% | 0.20% |
| Cu | Copper | 0.10% | 0.60% |
| B | Boron | -- | 35 PPM (0.0035%) |
Mechanical Properties of Duplex 2304 Pipe Fittings (UNS S32304)
| Product Form & Thickness (t) | Yield Strength (Rp0.2) ≥ MPa | Tensile Strength (Rm) ≥ MPa | Elongation (A) ≥ % | Hardness (HB) | Impact Energy, Charpy-V @ -46°C ≥ J | PREN |
|---|---|---|---|---|---|---|
| Plate CR (Cold Rolled, t < 13mm) | 500 | 690 | 25 | -- | 45 | ≥ 28 |
| Plate HR (Hot Rolled, t ≥ 13mm) | 420 | 630 | 25 | ≤ 290 | 45 | ≥ 28 |
Physical Properties of Duplex 2304 Pipe Fittings (UNS S32304)
| Parameter | Value |
|---|---|
| Density | 7800 kg/m3 |
| Elastic Modulus | 200 GPa |
| Co-eff of Expansion | 14.5 micrometer/m/°C |
| Thermal Conductivity | 19 W/m.K |
| Electric Resistivity | 850 nOhm.m |
Equivalent Grades of Duplex 2304 Pipe Fittings (UNS S32304)
| Standard / Grade Name | UNS Number | Werkstoff Nr. (W.Nr.) | EN Designation |
|---|---|---|---|
| Duplex 2304 | S32304 | 1.4362 | DIN X2CrNiN23-4 |
Different Types of Duplex 2304 Pipe Fittings (UNS S32304)

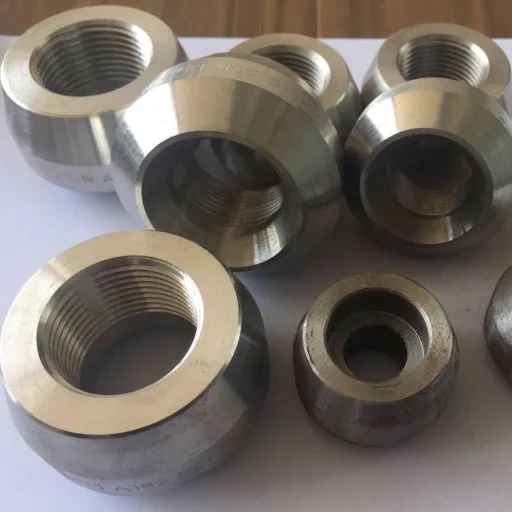

Duplex 2304 Weldolet

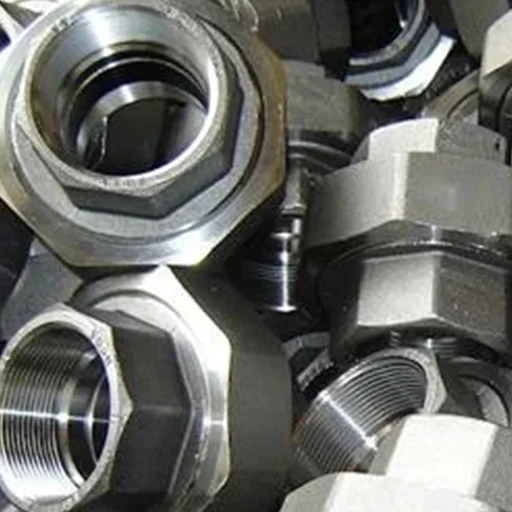

Duplex 2304 Union
Duplex 2304 Thredolet

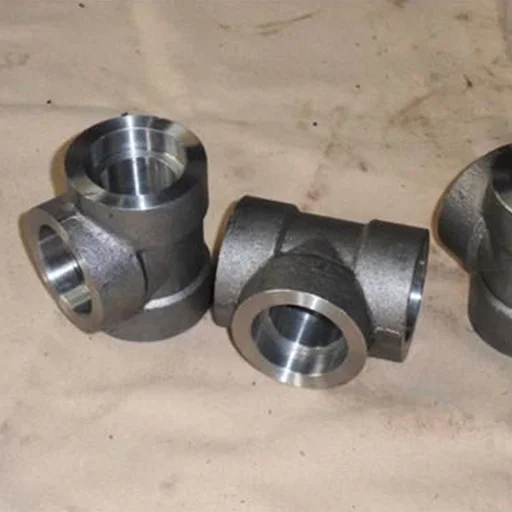

Duplex 2304 Tee

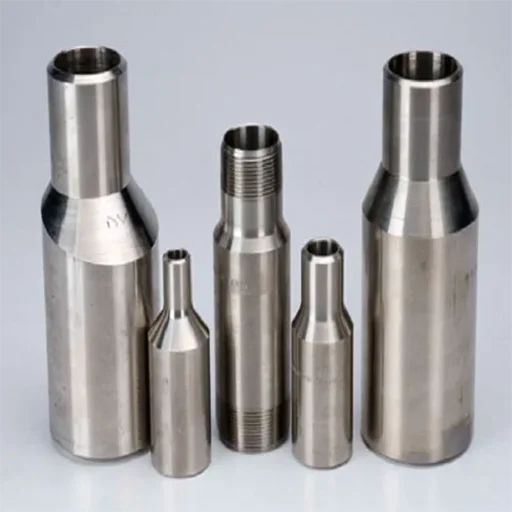

Duplex 2304 Swage Nipples
Duplex 2304 Sokolet

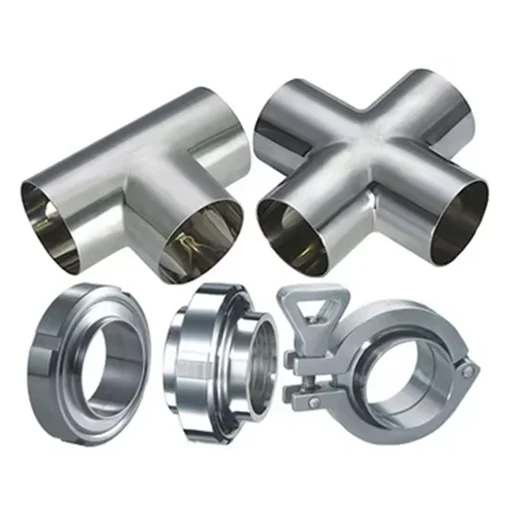

Duplex 2304 S_W & SCRD

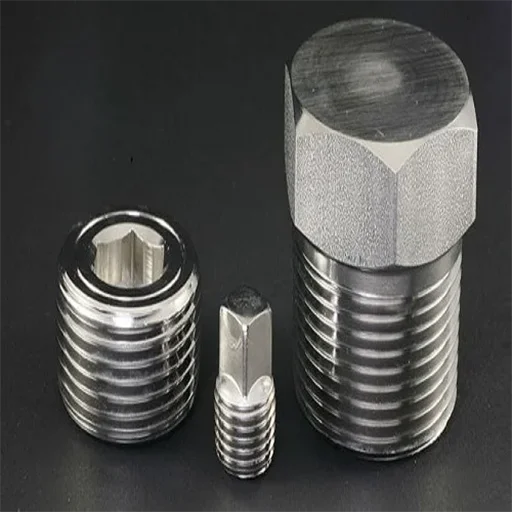

Duplex 2304 Plug

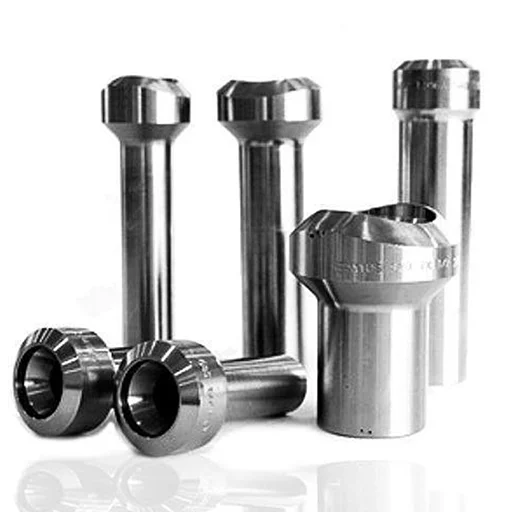

Duplex 2304 Nipolet

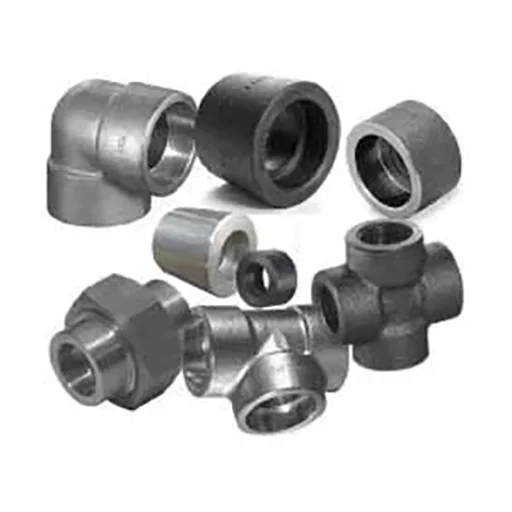

Duplex 2304 IBR Fitting

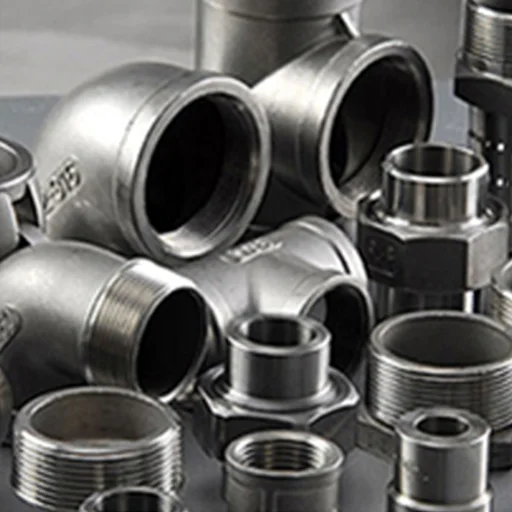

Duplex 2304 Elbow

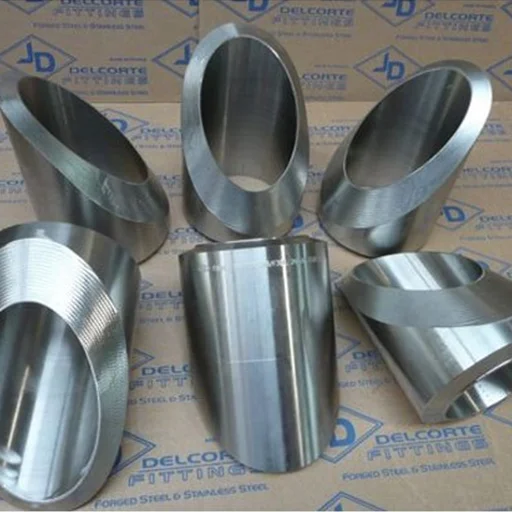

Duplex 2304 Elbolet
Duplex 2304 Cross

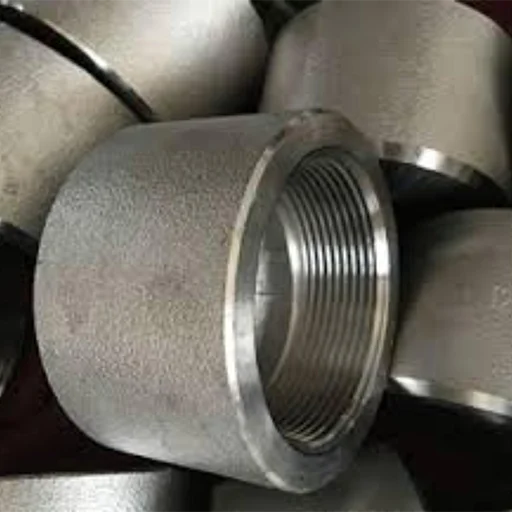

Duplex 2304 CAP

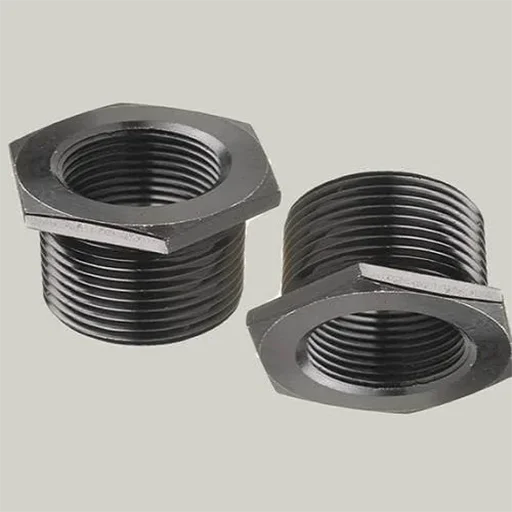

Duplex 2304 Bush
Comparison Table of Duplex 2304 vs Duplex 2205
| Parameter | Duplex 2304 (UNS S32304) | Duplex 2205 (UNS S31803/S32205) |
|---|---|---|
| PREN Value | 23 - 26 | 30 - 35 |
| Molybdenum (Mo) | Minimal / Not required | 3.0 - 3.5% |
| Corrosion Resistance | Moderate | High, especially in chlorides |
| Stress Corrosion Cracking | Good | Excellent |
| Mechanical Strength | High | Very High |
| Cost | Lower | Higher |
| Weldability | Easier, lower heat input | Controlled welding required |
| Operating Environment | Mild to moderate | Aggressive / marine / chemical |
| Lifecycle Cost | Lower initial | Lower long-term in harsh conditions |
| Best Use Case | Cost-driven projects | Performance-critical applications |
ASME B16.9 Duplex 2304 - UNS S32304 Dimension Chart
| NPS | O.D. (mm) | Wall Thickness T (mm) | Pipe Schedule | LR 45° Elbow B (mm) | LR 45° Elbow Weight (kg) | LR 90° Elbow A (mm) | LR 90° Elbow Weight (kg) | SR 90° Elbow A (mm) | SR 90° Elbow Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 15 (1/2") | 21.3 | 2.78 / 3.73 | STD / X.S | 15.9 / 15.9 | 0.04 / 0.05 | 38.1 / 38.1 | 0.08 / 0.10 | -- | -- |
| 20 (3/4") | 26.7 | 2.87 / 3.91 | STD / X.S | 11.1 / 11.1 | 0.04 / 0.05 | 28.6 / 28.6 | 0.08 / 0.11 | -- | -- |
| 25 (1") | 33.4 | 3.38 / 4.55 | STD / X.S | 22.2 / 22.2 | 0.09 / 0.11 | 38.1 / 38.1 | 0.15 / 0.19 | 25.4 / 25.4 | 0.11 / 0.14 |
| 32 (1-1/4") | 42.2 | 3.56 / 4.85 | STD / X.S | 25.4 / 25.4 | 0.14 / 0.20 | 47.6 / 47.6 | 0.28 / 0.39 | 31.75 / 31.75 | 0.18 / 0.24 |
| 40 (1-1/2") | 48.3 | 3.68 / 5.08 | STD / X.S | 28.6 / 28.6 | 0.20 / 0.25 | 57.1 / 57.1 | 0.40 / 0.53 | 38.1 / 38.1 | 0.26 / 0.35 |
| 50 (2") | 60.3 | 3.91 / 5.54 | STD / X.S | 34.9 / 34.9 | 0.36 / 0.50 | 76.2 / 76.2 | 0.72 / 1.00 | 50.8 / 50.8 | 0.50 / 0.68 |
| 65 (2-1/2") | 73.0 | 5.16 / 7.01 | STD / X.S | 44.4 / 44.4 | 0.73 / 0.91 | 95.2 / 95.2 | 1.46 / 1.82 | 63.5 / 63.5 | 0.95 / 1.27 |
| 80 (3") | 88.9 | 5.49 / 7.62 | STD / X.S | 50.8 / 50.8 | 1.11 / 1.45 | 114.3 / 114.3 | 2.18 / 2.86 | 76.2 / 76.2 | 1.45 / 1.95 |
| 100 (4") | 114.3 | 6.02 / 8.56 | STD / X.S | 63.5 / 63.5 | 2.10 / 2.91 | 152.4 / 152.4 | 4.20 / 5.71 | 101.6 / 101.6 | 2.80 / 3.91 |
| 150 (6") | 168.3 | 7.11 / 10.97 | STD / X.S | 95.2 / 95.2 | 5.12 / 7.70 | 229.0 / 229.0 | 10.11 / 15.30 | 152.4 / 152.4 | 6.80 / 10.22 |
| 200 (8") | 219.1 | 8.18 / 12.70 | STD / X.S | 127.0 / 127.0 | 10.20 / 15.50 | 305.0 / 305.0 | 20.40 / 30.90 | 203.0 / 203.0 | 13.60 / 20.90 |
| 300 (12") | 323.9 | 9.52 / 12.70 | STD / X.S | 190.0 / 190.0 | 26.60 / 35.00 | 457.0 / 457.0 | 53.10 / 70.00 | 305.0 / 305.0 | 35.40 / 46.70 |
| 600 (24") | 610.0 | 9.52 / 12.70 | STD / X.S | 381.0 / 381.0 | 101.50 / 134.50 | 914.0 / 914.0 | 203.00 / 269.00 | 610.0 / 610.0 | 135.00 / 179.00 |
Applicational Uses of Duplex 2304 Pipe Fittings (UNS S32304)
- Construction & Infrastructure
- Water Treatment & Desalination Plants
- Chemical Processing Industry
- Oil & Gas
- Pulp & Paper Industry
- Food Processing Industry
- Storage Tanks & Pressure Vessels Manufacturing
- Power Generation
Duplex Steel S32304 Forged Fittings Price List
| Product Description | Price in India (INR) | Price in UAE (AED / Dirham) | Enquiry |
|---|---|---|---|
| Duplex Steel Forged Elbow (Grade 2304) | 157.82 | 8.15 | Get Quote |
| Duplex Steel Forged Coupling (Grade S32304) | 1,650.72 | 85.29 | Get Quote |
| Duplex Steel Forged Equal Cross (Grade S32304) | 1,627.97 | 84.12 | Get Quote |
Note: Prices of this material are indicative and may change based on market fluctuations and raw material costs.
Frequently Asked Questions
It is a lean duplex stainless steel with high strength and moderate corrosion resistance, used for cost-effective applications.
WNR 1.4362 is the European material number equivalent of UNS S32304.
They typically conform to ASTM A182, ASME SA182, and MSS SP-79 / SP-95 standards.
Common tests include PMI, chemical analysis, mechanical testing, hydro testing, and visual inspection.
Yes, they can be supplied with IBR approval if required for boiler and pressure vessel applications.
Request a Quote for Duplex 2304 Pipe Fittings
Share your fitting type, size, pressure class, quantity, testing requirement, and delivery destination. Metinox Overseas will respond with pricing, availability, and technical documentation support.
