ASTM A182 F91 Forged Fittings Specification
| Category | Specification / Details |
|---|---|
| Forged Manufacturing Standards | ASTM A182 / ASME SA182 (High-Temperature Forged Components) |
| Dimensional Design Parameters | ASME B16.11 (Socket Weld & Threaded), MSS SP-83 (Unions), MSS SP-97 (Integrally Reinforced Outlets), BS 3799 |
| Available Size Spectrum | 1/8" NB to 4" NB (Nominal Bore) |
| Thread Engineering Profiles | NPT (ANSI/ASME B1.20.1) / BSPT / BSP |
| Value-Added Testing Protocols | Positive Material Identification (PMI), Ultrasonic Testing (UT) per ASME Section V, Wet Magnetic Particle Examination (MPI), Brinell Hardness Mapping |
ASTM A182 F91 Forged Fittings Sizes
| Connection Type | Pressure Class | Size Range (NPS) | Dimensional Standard |
|---|---|---|---|
| Socket Weld | Class 3000 / 6000 / 9000 | 1/8" to 4" NB | ASME B16.11 |
| Threaded (NPT / BSPT) | Class 3000 / 6000 | 1/8" to 4" NB | ASME B16.11 / BS 3799 |
| Branch Outlets (Olets) | Per pressure design | 1/2" to 4" NB | MSS SP-97 |
| Unions | Class 3000 | 1/8" to 2" NB | MSS SP-83 |
| Swage Nipples & Bull Plugs | Class 3000 / 6000 | 1/4" to 4" NB | MSS SP-95 |

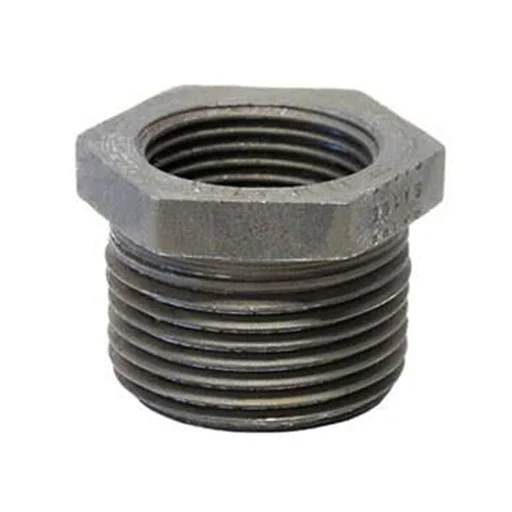

Types of Grade F91 Alloy Steel Forged Fittings
Our forged line is precision-machined from solid forgings to ensure dense grain structures without micro-porosity. We manufacture and stock the following variants:
Socket Weld Elbow (90° & 45°)
Class 3000, 6000, and 9000 precision socket-depth elbows per ASME B16.11 for high-temperature steam and process lines.
Socket Weld Tee
Equal and reducing tees in Class 3000, 6000, and 9000 for controlled branch take-offs in power boiler and refinery critical service.

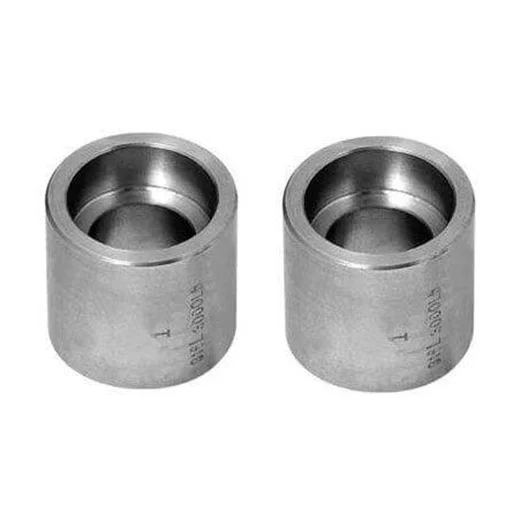

Socket Weld Coupling
Full and half couplings, Class 3000 to 9000, providing leak-free pipe-to-pipe or pipe-to-instrument connections.

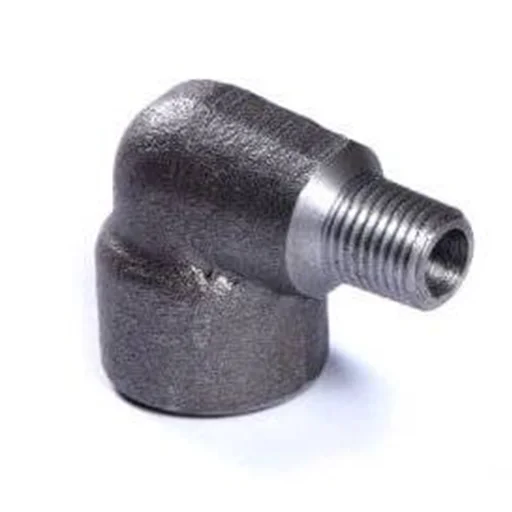

Threaded Elbow (NPT / BSPT)
Clean NPT and BSPT threads engineered for leak-tight plumbing integration across heavy industrial gas and steam utility manifolds.
Threaded Tee
Equal and reducing threaded tees in Class 3000 and 6000 for instrumentation connections and sampling points on high-temperature lines.

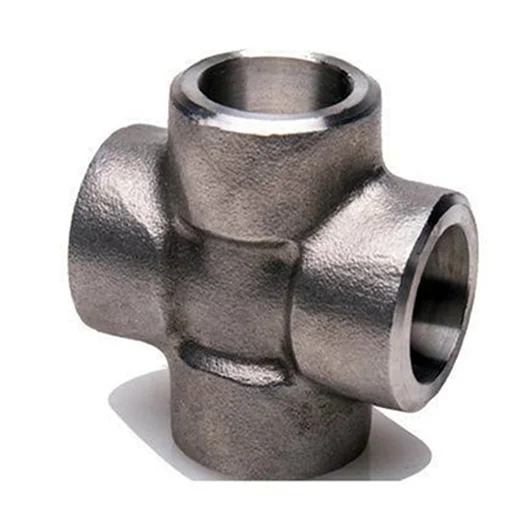

Cross (4-Way)
Four-way socket weld and threaded crosses per ASME B16.11, Class 3000 and 6000, for multi-directional distribution headers.
Sockolet
High-strength integrally reinforced branch outlets per MSS SP-97 for socket weld small-bore connections on main run pipe.
Weldolet
Butt weld branch outlet engineered per MSS SP-97 to deliver optimal stress distribution at branch connection lines on Grade 91 main runs.
Thredolet & Elbolet
Threaded and elbow-type branch outlets per MSS SP-97 for instrumentation take-offs and vent/drain connections on critical service headers.
Sourcing F91 for a Critical-Service Project?
PWHT certificates, EN 10204 3.1 Mill Test Reports, IBR approval, and NABL-accredited hardness confirmation below 269 HBW, all available as standard with every Metinox Overseas order. Don't settle for fittings where documentation is an afterthought.
Request a Quote with Full DocumentationChemical Composition of ASTM A182 F91 Forged Fittings
| Element | Min (%) | Max (%) |
|---|---|---|
| Carbon (C) | 0.08 | 0.12 |
| Manganese (Mn) | 0.30 | 0.60 |
| Silicon (Si) | 0.20 | 0.50 |
| Phosphorus (P) | — | 0.020 |
| Sulphur (S) | — | 0.010 |
| Chromium (Cr) | 8.00 | 9.50 |
| Molybdenum (Mo) | 0.85 | 1.05 |
| Vanadium (V) | 0.18 | 0.25 |
| Niobium (Nb) | 0.06 | 0.10 |
| Nitrogen (N) | 0.030 | 0.070 |
| Aluminium (Al) | — | 0.040 |
| Nickel (Ni) | — | 0.40 |
The controlled addition of Vanadium (V), Niobium (Nb), and Nitrogen (N) is what distinguishes F91 from conventional Cr-Mo grades. These microalloying elements form fine MX-type precipitates (MC and MN carbides and nitrides) that pin dislocation movement within the tempered martensitic matrix, providing superior creep strength at temperatures above 560°C.
Mechanical Properties of ASTM A182 F91 Forged Fittings
| Property | Requirement |
|---|---|
| Tensile Strength (min) | 585 MPa (85 ksi) |
| Yield Strength (min) | 415 MPa (60 ksi) |
| Elongation (min) | 20% |
| Hardness (max, post-PWHT) | 269 HBW |
Metallurgical Compliance Inspection Note
To protect against premature brittle failure, every ASTM A182 F91 fitting supplied by Metinox Overseas undergoes strict Brinell hardness testing post-tempering. In accordance with ASME SA182 criteria, the hardness ceiling must not exceed 269 HBW (22 HRC). We provide certified documentation showing full traceability from the raw billet to the final product.
F91 Alloy Steel Forged Fitting Heat Treatment
| Heat Treatment Process | Austenitizing / Tempering Temperature Range | Cooling Medium Protocol | Governing Code Mandate |
|---|---|---|---|
| Normalizing (Full Austenitization) | 1900°F – 1975°F (1040°C – 1080°C) | Controlled Air Cool / Forced Air Blast | ASTM A182 / ASME SA182 Paragraph 7.1 |
| Tempering (Subcritical) | 1350°F – 1470°F (730°C – 800°C) | Atmospheric Air Cool | Minimum Tempering Temperature per Code |
The normalise-and-temper cycle is the only heat treatment route that produces the fully tempered martensite microstructure required for Grade 91. Annealing or subcritical heat treatment alone does not satisfy ASTM A182 / ASME SA182 requirements and must not be used as a substitute.
F91 Alloy Steel Forged Fitting Pressure Rating Chart
| Fitting Pressure Class | Type of Forged Connection | Nominal Size Range (NPS) | Correlative Pipe Wall Schedule Basis |
|---|---|---|---|
| Class 3000 | Socket Welding / Threaded | 1/8" to 4" NB | Schedule 80 / Extra Strong (XS) |
| Class 6000 | Socket Welding / Threaded | 1/4" to 2" NB | Schedule 160 |
| Class 9000 | Socket Welding Only | 1/2" to 2" NB | Schedule Double Extra Strong (XXS) |
Note: Pressure class designations per ASME B16.11 are nominal. Actual working pressure is temperature-dependent and is determined by the matching pipe schedule and allowable stress per ASME B31.1 Power Piping / ASME B31.3 Process Piping. At elevated temperatures (above 500°C), the allowable stress for Grade 91 is governed by creep-rupture data in ASME Section II, Part D.
F91 Alloy Steel Forged Fitting Equivalent Standards
| Grade | ASTM | ASME | UNS |
|---|---|---|---|
| F91 | ASTM A182 | ASME SA182 | UNS K90901 |
Request a Quote for ASTM A182 F91 Forged Fittings
Mill Test Reports | PWHT Certificates | IBR Approval Available | Response Within 24 Hours
Get Your RFQ →F91 vs F22 vs F11 — Grade Comparison
| Property | ASTM A182 F91 (9Cr-1Mo-V) | ASTM A182 F22 (2.25Cr-1Mo) | ASTM A182 F11 (1.25Cr-0.5Mo) |
|---|---|---|---|
| Chromium Content | 8.00 – 9.50% | 2.00 – 2.50% | 1.00 – 1.50% |
| Microalloying (V, Nb, N) | Yes — creep-resisting precipitates | No | No |
| Tensile Strength (min) | 585 MPa (85 ksi) | 415 MPa (60 ksi) | 415 MPa (60 ksi) |
| Max Recommended Temp | 620°C (ultra-supercritical service) | 560°C | 540°C |
| PWHT Mandatory | Yes — 730°C to 800°C | Yes — 675°C to 760°C | Yes — 650°C to 720°C |
| Hardness Limit (post-PWHT) | 269 HBW max | 241 HBW max | 225 HBW max |
| Primary Application | Ultra-supercritical power plant, advanced refinery | Subcritical and supercritical power plants, hydroprocessing | Low-alloy high-temperature piping |
Mandatory PWHT Requirement for ASTM A182 F91 Forged Fittings
PWHT for F91 is not optional — it is a code requirement. ASME B31.1 Power Piping requires post-weld heat treatment at 730 to 800°C, with holding time based on wall thickness (minimum 1 hour per 25mm, minimum 1 hour total). Insufficient PWHT temperature or time leaves the martensite structure in a hard, brittle condition that will fail by Type IV creep cracking at the heat-affected zone within the first 50,000 operating hours. This is the most documented Grade 91 field failure mode and is entirely preventable with correct PWHT.
For F91 socket weld and threaded fittings, PWHT applies to the completed assembled joint — not just the fitting body. The entire connection, including pipe and fitting, must reach and hold the specified temperature range. Partial or localised heating does not satisfy the code requirement.
Metinox supplies ASTM A182 F91 forged fittings in the normalised and tempered condition with hardness confirmed below 269 HBW. Hardness certificates are available on all IBR and critical service orders. For equivalent raw material in pipe form, seeAlloy Steel Pipes including ASTM A335 Grade P91 seamless pipe.
PWHT Summary — ASME B31.1 Requirements for Grade 91
| Parameter | Requirement |
|---|---|
| PWHT Temperature Range | 730°C to 800°C (1346°F to 1472°F) |
| Minimum Hold Time | 1 hour per 25mm (1 inch) of section thickness — 1 hour absolute minimum |
| Heating Rate (above 425°C) | Maximum 55°C/hour per 25mm of thickness |
| Cooling Rate (above 315°C) | Maximum 55°C/hour per 25mm of thickness |
| Thermocouple Requirement | Direct attachment to weld or fitting — no pyrometer-only monitoring |
| Scope of PWHT | Complete joint assembly including pipe and fitting — not fitting body alone |
| Post-PWHT Hardness Limit | Maximum 269 HBW per ASME SA182 |
| Documentation | Time-temperature chart, thermocouple positions, hardness survey with traceability |
Applications of ASTM A182 F91 Forged Fittings
- Petrochemical Industry
- Chemical Industry
- Oil and Gas Industry
- Pulp & Paper Indusry
- Power Plant Industry
- Food Processing Industry
- Pharmaceuticals Industry
- Energy Industry
- Aerospace Industry
Ready to Order ASTM A182 F91 Forged Fittings?
Metinox Overseas manufactures and supplies Grade 91 forged fittings in socket weld and threaded configurations — Class 3000, 6000, and 9000 LB with complete traceability documentation for boiler, power piping, and refinery critical service. Global delivery. IBR approved. MTR and PWHT certificates on every shipment.
Get Your RFQ →Frequently Asked Questions
PWHT is mandatory for F91 under ASME B31.1. The temperature range is 730 to 800°C. Holding time is a minimum of 1 hour per 25mm of section thickness, with an absolute minimum of 1 hour. Skipping or shortening PWHT leaves a brittle martensitic microstructure above 350 HBW that fails by Type IV creep cracking in service.
ASTM A182 F91 covers forged socket weld and threaded fittings per ASME B16.11 in the 1/4 inch to 4 inch NB range. ASTM A234 WP91 covers wrought buttweld fittings per ASME B16.9 in sizes 1/2 inch to 48 inch NB. Both carry the same 9Cr-1Mo-V Grade 91 chemistry and are used together in the same piping system — F91 for small-bore connections and WP91 for main-line joints.
No. ASTM A182 F22 (2.25Cr-1Mo) reaches its allowable stress limit at approximately 560°C. Ultra-supercritical boiler steam temperatures exceed 593°C and reach 610 to 620°C. At these temperatures, only Grade 91 (9Cr-1Mo-V) meets the allowable stress requirements in ASME Section II, Part D. Substituting F22 for F91 in ultra-supercritical service is an engineering non-conformance.
Metinox supplies ASTM A182 F91 forged fittings with EN 10204 3.1 Mill Test Reports as standard. Hardness certificates confirming below 269 HBW post-PWHT, IBR approval documentation, NABL-accredited lab test reports, and third-party inspection by TPIA are available on request for critical service and export orders. Contact us to receive a full documentation package with your RFQ.
