ASTM A182 F22 Forged Fittings Manufacturer and Supplier
Metinox Overseas manufactures and supplies forged fittings in 2.25Cr-1Mo alloy steel (UNS K21590) that meet ASTM A182 F22. We offer socket weld and threaded fittings from Class 3000, 6000 and 9000 LB and sizes available for power plant piping, boiler circuits, fired heater skids. All fittings come with full material traceability, EN 10204 3.1 Mill Test Reports and third party inspection if requested. Critical project needs can be dispatched at an urgent or immediate pace.
Upgrade to ASTM A182 F91 Forged Fittings only when service temperature exceeds the ASME B31.1 allowable stress ceiling for F22. For lower-temperature services where a Cr-Mo alloy is still required, ASTM A182 F11 Forged Fittings offer a cost-effective alternative within the broader Alloy Steel Pipe Fittings range.
Table of Contents
- ASTM A182 F22 Forged Fittings Manufacturer and Supplier
- ASTM A182 F22 Forged Fittings Specification
- Types of Grade F22 Alloy Steel Forged Fittings
- ASTM A182 F22 vs ASTM A234 WP22
- Chemical Composition of Grade F22 Alloy Steel High Pressure Fittings
- Mechanical Properties of ASTM A182 F22 Alloy Steel Forged Pipe Fittings
- B2B Procurement & Quality Verification Protocols
- A182 F22 Alloy Fittings Size Chart
- Application Industries of Alloy Steel F22 Forged Fittings
- Related Products
- Frequently Asked Questions
ASTM A182 F22 Forged Fittings Specification
| Technical Parameter | Standard Specification Limits |
|---|---|
| Dimensional Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799 |
| Size Ranges | 1/8" to 4" Nominal Bore (NB) |
| Pressure Ratings | Class 2000, Class 3000, Class 6000, Class 9000 |
| Connection Configuration | Socket Weld (SW) & Threaded (NPT, NPTF, BSPT, BSP) |
| Primary Material Grade | ASTM A182 Grade F22 (Class 1 & Class 3) / ASME SA182 F22 |
| Heat Treatment Profiles | Normalizing + Tempering, Full Annealing, Quenched & Tempered (Q&T) |
| Quality Testing Protocols | Hydrostatic, Ultrasonic (UT), Positive Material Identification (PMI), Radiography |
Types Of Grade F22 Alloy Steel Forged Fittings
Socket Weld Elbow
Threaded Elbow
Socket Weld Tee
Threaded Tee
Coupling
Union
Request a Quote for ASTM A182 F22 Forged Fittings
Need Class 1 or Class 3 fittings in 3000 LB, 6000 LB, or 9000 LB? Our technical team responds within 24 hours with mill test reports and competitive pricing.
Get a Quote NowASTM A182 F22 vs ASTM A234 WP22 Same Grade, Different Product Form
Engineers frequently specify the correct chemistry but the wrong product standard. F22 and WP22 share an identical 2.25Cr-1Mo composition, yet they cover entirely different product forms and connection methods. For wrought buttweld fittings in larger bore pipe systems, refer to our ASTM A234 WP22 Pipe Fittings page. The table below clarifies the key differences.
| Parameter | ASTM A182 F22 | ASTM A234 WP22 |
|---|---|---|
| Product Form | Forged fittings | Wrought buttweld fittings |
| Connection Type | Socket weld and threaded | Buttweld (butt-end) |
| Typical Size Range | 1/4 inch to 4 inch (small bore) | 1/2 inch and above (larger bore) |
| Dimensional Standard | ASME B16.11 | ASME B16.9 |
| Chemistry (Cr-Mo) | 1.90-2.60% Cr, 0.87-1.13% Mo | 1.90-2.60% Cr, 0.87-1.13% Mo |
| Raw Material Equivalent | A335 P22 alloy steel pipe | A335 P22 alloy steel pipe |
| ASME Reference | SA182 F22 | SA234 WP22 |
Chemical Composition of Grade F22 Alloy Steel High Pressure Fittings
| Element | Carbon (C) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) | Chromium (Cr) | Molybdenum (Mo) |
|---|---|---|---|---|---|---|---|
| A182 F22 (%) | 0.05-0.15 | 0.30-0.60 | 0.50 Max | 0.040 Max | 0.040 Max | 2.00-2.50 | 0.87-1.13 |
Mechanical Properties of ASTM A182 F22 Alloy Steel Forged Pipe Fittings
| Material Grade & Class | Tensile Strength (Min) | Yield Strength (Min) | Elongation (Min) |
|---|---|---|---|
| A182 F22 Class 1 | 415 MPa (60 ksi) | 205 MPa (30 ksi) | 20.0% |
| A182 F22 Class 3 | 515 MPa (75 ksi) | 310 MPa (45 ksi) | 20.0% |
B2B Procurement & Quality Verification Protocols
Every ASTM A182 F22 Class 3 forged fitting shipped from Metinox Overseas undergoes strict verification testing to guarantee reliability in high-temperature creep applications. Our quality processes feature standard testing options:
- Material Verification: Positive Material Identification (PMI) using handheld XRF analysis.
- Volumetric Inspections: 100% Ultrasonic Testing (UT) to identify internal forging voids per ASTM standards.
- Surface Evaluation: Liquid Penetrant Testing (LPT) or Magnetic Particle Testing (MPT) for structural weld preparations.
- Material Documentation: Certified Mill Test Reports issued in full accordance with EN 10204 3.1.
A182 F22 Alloy Fittings Size Chart
| Products | Size |
|---|---|
| ASTM A182 Alloy Steel F22 90° Elbows | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 Alloy Steel F22 45° Elbows | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

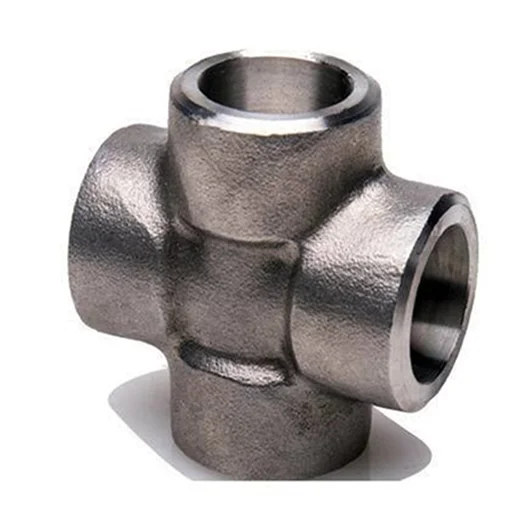

| ASTM A182 Alloy Steel F22 Forged Cross | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 F22 Inserts | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 F22 Forged Caps | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

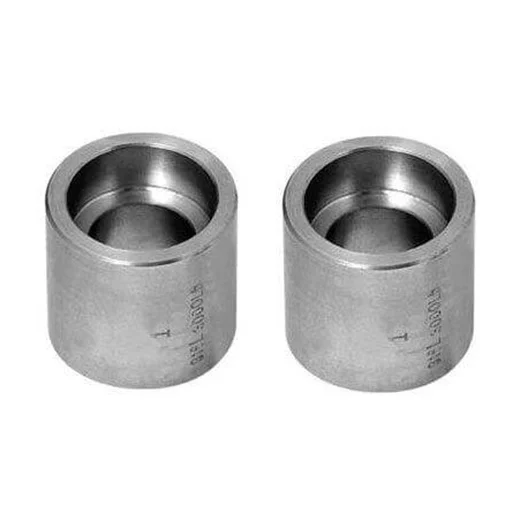

| ASTM A182 Alloy Steel F22 Couplings | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 Alloy Steel F22 Forged Tees | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 Alloy Steel F22 Unions | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

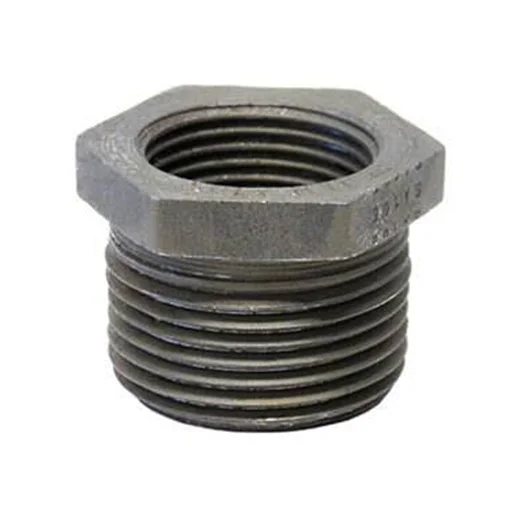

| ASTM A182 F22 Bushings | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 Alloy Steel F22 Pipe Nipple | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 Alloy Steel F22 Forged Plug | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

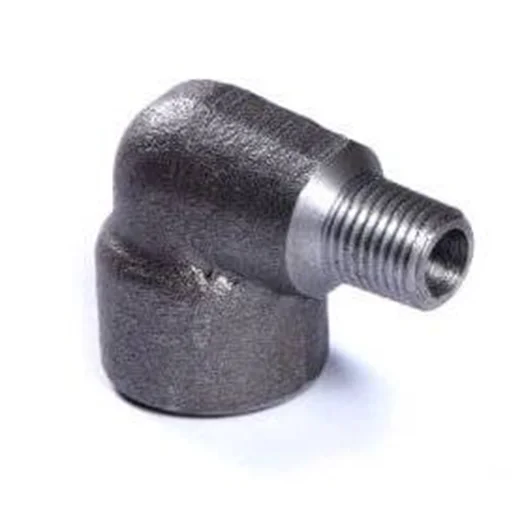

| ASTM A182 Alloy Steel F22 Street Elbows | Sizes 1/8"-4"; Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Application Industries of Alloy Steel F22 Forged Fittings
- Power Generation
- Oil & Gas
- Petrochemical
- Aerospace
- Pharmaceutical
- Marine
- Mining
- Automotive
- Pulp and Paper
- Food and Beverage
Ready to Source ASTM A182 F22 Forged Fittings?
Metinox Overseas supplies F22 Class 1 and Class 3 socket weld and threaded fittings with full material traceability, mill test reports, and third-party inspection. Share your inquiry with size, class, pressure rating, and quantity and our team will respond with a quotation within 24 hours.
Send RFQFrequently Asked Questions
Class 1 is annealed or normalized and tempered, with a minimum tensile of 415 MPa (60 ksi) and is used where ductility during forming is the priority. Class 3 is normalized and tempered, reaching 515 MPa (75 ksi) minimum tensile and 310 MPa (45 ksi) minimum yield, making it the required class for 6000 LB and 9000 LB pressure-class connections per ASME B16.11.
Upgrade to F91 only when service temperature exceeds the allowable stress limit of F22 in ASME B31.1, generally above 593°C (1100°F). F91 adds vanadium and niobium for superior creep resistance in ultra-supercritical boiler circuits. For most subcritical and conventional supercritical plant designs, F22 Class 3 remains the correct and more cost-effective selection.
ASTM A182 F22 forged fittings are manufactured from 1/4 inch to 4 inch NPS in 3000 LB, 6000 LB, and 9000 LB pressure classes per ASME B16.11. Both socket weld and threaded end connections are available across all pressure classes. Class 3 heat treatment is required for 6000 LB and 9000 LB ratings.
Both share the identical 2.25Cr-1Mo chemistry. ASTM A182 F22 covers forged socket weld and threaded fittings for small-bore connections dimensioned to ASME B16.11. ASTM A234 WP22 covers wrought buttweld fittings in larger bore sizes dimensioned to ASME B16.9. Specify A182 F22 for instrument taps and small-bore branches; specify A234 WP22 for main line buttweld elbows and tees.
