The stainless steel 316Ti welded pipes are popular in industries that demand a product that is highly resistant to corrosion, has high performance in high temperatures, and can be used in a long-lasting manner. Metinox Overseas offers high-quality SS 316Ti welded pipes, as per the ASTM A312, EN and DIN 1.4571 standards. The manufacturers employ high-grade materials and the latest and advanced welding techniques to offer SS 316Ti welded pipes with uniformity, durability and more accurate sizes. The resistance to corrosion of SS 316Ti is enhanced due to the introduction of chromium, nickel, and molybdenum to the austenitic stainless steel material and the introduction of titanium to the same material contributes to the fact that no precipitation of carbide of the stainless steel occurred during the welding process and the use of higher temperatures.
SS 316Ti Welded pipes are very pitting and crevice corrosion resistant within the chloride containing environment. They can resist sulphuric, hydrochloric, and formic acids. They can easily be welded using conventional fusion procedures. Heat treatment is not necessary after cold working. Heat treatment is not possible to harden this material. However, there is a possibility to increase strength and hardness through cold working. As such, Stainless Steel 316Ti Welded pipes can be commonly used in chemical processing plants, oil, gas, electricity production, heat transfer applications, as well as ship components.
Table of Contents
- Specifications of Stainless Steel 316Ti Welded Pipe
- Chemical Composition of Stainless Steel 316Ti Welded Pipes
- SS 316Ti Welded Pipes Mechanical Properties
- ASME SA 312 TP 316ti Pipes Equivalent Grades
- ASTM A312 TP 316Ti SS Pipe Schedule and Wall Thickness
- AISI 316ti welded Pipes Temperature Chart
- DIN 1.4571 SS 316Ti Pipe Pressure Rating Chart
- Different Types of Stainless Steel 316Ti Welded Pipes
- Applications & Industry Uses of SS 316Ti Welded Pipes
- Testing & Quality Assurance of Stainless Steel 316Ti Welded Pipes
- Frequently Asked Questions (FAQ)
Specifications of Stainless Steel 316Ti Welded Pipe
| Specifications | Details |
| Standard | ASTM A312 / ASME SA312 |
| Welded Pipe Size | 1/2" NB � 24" NB |
| Outside Diameter (OD) | 6.00 mm OD up to 914.4 mm OD (Sizes up to 24" NB available Ex-stock) |
| Thickness Range | 0.3 mm � 50 mm; SCH 5, 10, 40, 80, 80S, 160, XS, XXS |
| Type | Welded |
| Form | Round Pipes, Square Pipes, Rectangular Pipes |
| Length | Single Random, Double Random & Required Length |
| Pipe Ends | Plain End, Beveled End, Threaded |
| Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish, or as per customer requirement |
| Delivery Condition | Annealed & Pickled, Polished, Bright Annealed, Cold Drawn |
| EN 10216-5 | EN 10216-5 316Ti Welded Steel Pipe, 1.4571 Welded Steel Pipes for pressure purposes |
| EN 10217-7 | EN 10217-7 316Ti Welded Steel Pipe, 1.4571 Welded Pipe |
Chemical Composition of Stainless Steel 316Ti Welded Pipes
| Grade | C (max) | Mn (max) | Si (max) | P (max) | S (max) | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08% | 2.00% | 0.75% | 0.045% | 0.030% | 16.00 � 18.00% | 2.00 � 3.00% | 10.00 � 14.00% | 68.395% min |
SS 316Ti Welded Pipes Mechanical Properties
| Grade | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Rockwell B (HRB) � Max | Brinell (HB) � Max |
| SS 316Ti | 75,000 psi (515 MPa) | 30,000 psi (205 MPa) | 35% | 75 | 205 |
ASME SA 312 TP 316ti Pipes Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 316Ti | S31635 | 1.4571 | Z6CNDT17-12 | X6CrNiMoTi17-12-2 | SUS 316Ti | 320S31 | 08Ch17N13M2T |
ASTM A312 TP 316Ti SS Pipe Schedule and Wall Thickness
| Nominal Pipe Size | Outside Diameter (O.D.) | Sch 10s | Sch 40s / Std | Sch 40 | Sch 80s / E.H. | Sch 80 | Sch 160 |
| 1/8 | 0.405 | 0.049 | 0.049 | 0.068 | 0.068 | 0.095 | 0.095 |
| 1/4 | 0.540 | 0.065 | 0.065 | 0.088 | 0.088 | 0.119 | 0.119 |
| 3/8 | 0.675 | 0.065 | 0.065 | 0.091 | 0.091 | 0.126 | 0.126 |
| 1/2 | 0.840 | 0.083 | 0.083 | 0.109 | 0.109 | 0.147 | 0.187 |
| 3/4 | 1.050 | 0.083 | 0.083 | 0.113 | 0.113 | 0.154 | 0.218 |
| 1 | 1.315 | 0.109 | 0.109 | 0.133 | 0.133 | 0.179 | 0.250 |
| 1 1/4 | 1.660 | 0.109 | 0.109 | 0.140 | 0.140 | 0.191 | 0.250 |
| 1 1/2 | 1.900 | 0.109 | 0.109 | 0.145 | 0.145 | 0.200 | 0.281 |
| 2 | 2.375 | 0.109 | 0.109 | 0.154 | 0.154 | 0.218 | 0.343 |
| 2 1/2 | 2.875 | 0.120 | 0.120 | 0.203 | 0.203 | 0.276 | 0.375 |
| 3 | 3.500 | 0.120 | 0.120 | 0.216 | 0.216 | 0.300 | 0.437 |
| 3 1/2 | 4.000 | 0.120 | 0.120 | 0.226 | 0.226 | 0.318 | � |
| 4 | 4.500 | 0.120 | 0.120 | 0.237 | 0.237 | 0.337 | 0.531 |
| 5 | 5.563 | 0.134 | 0.134 | 0.258 | 0.258 | 0.375 | 0.625 |
| 6 | 6.625 | 0.134 | 0.134 | 0.280 | 0.280 | 0.432 | 0.718 |
| 8 | 8.625 | 0.148 | 0.148 | 0.322 | 0.322 | 0.500 | 0.906 |
| 10 | 10.750 | 0.165 | 0.165 | 0.365 | 0.365 | 0.500 | 1.125 |
| 12 | 12.750 | 0.180 | 0.180 | 0.375 | 0.406 | 0.500 | 1.312 |
| 14 | 14.000 | 0.188 | 0.250 | 0.375 | 0.437 | 0.500 | 1.406 |
| 16 | 16.000 | 0.188 | 0.250 | 0.375 | 0.500 | 0.500 | 1.593 |
| 18 | 18.000 | 0.188 | 0.250 | 0.375 | 0.562 | 0.500 | 1.781 |
AISI 316ti Welded Pipes Temperature Chart
| Test Temperature (�F / �C) | Yield Strength (0.2% Offset) ksi (MPa) | Tensile Strength ksi (MPa) | Elongation (2" gauge) (%) |
| 200 / 93 | 30.2 (208) | 75.2 (518) | 39.5 |
| 400 / 204 | 26.0 (179) | 66.0 (455) | 28.0 |
| 600 / 316 | 23.1 (159) | 64.2 (443) | 26.0 |
| 800 / 427 | 21.2 (146) | 62.7 (433) | 25.0 |
| 1000 / 538 | 21.0 (145) | 61.3 (423) | 23.0 |
| 1200 / 649 | 21.1 (146) | 54.4 (375) | 19.5 |
| 1400 / 760 | 21.1 (146) | 37.9 (261) | 23.0 |
| 1600 / 871 | 16.2 (112) | 22.5 (155) | 48.0 |
| 1800 / 982 | 8.0 (55) | 11.3 (78) | 41.0 |
DIN 1.4571 SS 316Ti Pipe Pressure Rating Chart
| Pipe Size | Schedule (SCH) | OD (in) | Wall (in) | 100�F | 400�F | 600�F | 750�F |
| 1" | 40 | 1.315 | 0.133 | 2205 | 2047 | 1783 | 1664 |
| 80 | 1.315 | 0.179 | 3061 | 2841 | 2475 | 2310 | |
| 160 | 1.315 | 0.250 | 4493 | 4170 | 3632 | 3390 | |
| 2" | 40 | 2.375 | 0.154 | 1371 | 1272 | 1108 | 1034 |
| 80 | 2.375 | 0.218 | 1985 | 1843 | 1605 | 1498 | |
| 160 | 2.375 | 0.344 | 3283 | 3047 | 2654 | 2477 | |
| 4" | 40 | 4.500 | 0.237 | 1102 | 1023 | 891 | 831 |
| 80 | 4.500 | 0.337 | 1596 | 1482 | 1291 | 1204 | |
| 160 | 4.500 | 0.531 | 2611 | 2424 | 2111 | 1970 | |
| 10" | 40 | 10.750 | 0.365 | 699 | 649 | 565 | 528 |
| 80 | 10.750 | 0.594 | 1159 | 1075 | 937 | 874 | |
| 160 | 10.750 | 1.125 | 2289 | 2124 | 1850 | 1727 |
Different Types of Stainless Steel 316Ti Welded Pipes
Metinox Overseas offers a comprehensive range of SS 316Ti welded pipe types to meet diverse industrial requirements:
 316Ti Pipes.webp)

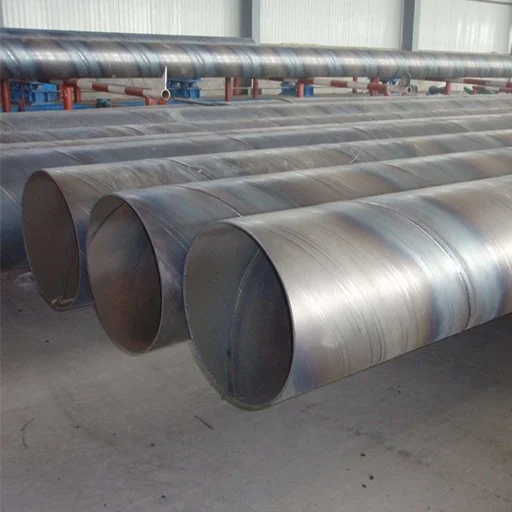

Spiral Welded (Helical SAW) 316Ti Pipes
Longitudinally Welded 316Ti Welded Pipes
 316Ti Welded Pipes.webp)

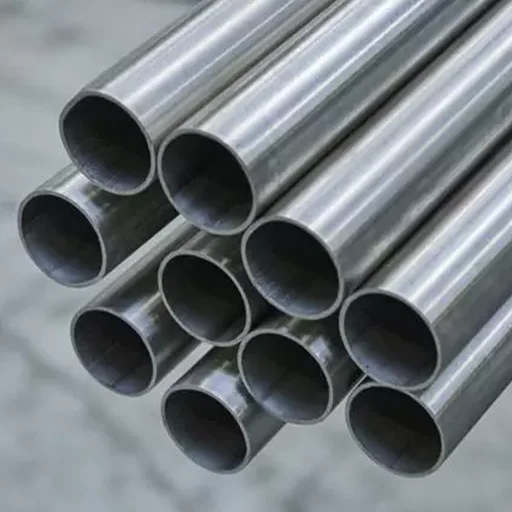

ERW (Electric Resistance Welded) 316Ti Welded Pipes
 316Ti Welded Pipes.webp)
EFW (Electric Fusion Welded) 316Ti Welded Pipes
Applications & Industry Uses of SS 316Ti Welded Pipes
The stainless steel 316Ti welded pipes are commonly used for many applications because of their resistance and stability in high temperature environments. Some of the most common industries that use this material are given below.
Petrochemical & Chemical Industry
The 316Ti welded pipes are common in most chemical processing plants in transporting corrosive chemicals, acids, and solvents. The titanium stabilization is used to eliminate precipitation of the carbide in high-temperature service.
Oil and Gas
You'll find these pipes in refinery networks, offshore platforms, and processing units where resisting chlorides, heat, and pressure matters most.
Generation of Electricity
At both thermal and nuclear power stations, 316Ti welded pipes can be found in the heat recovery sections, in the lines of exhaust, and in other high-temperature auxiliary piping applications.
Food, Dairy and Beverage
Due to their smooth surface, hygienic profile, and high corrosion resistance, these pipes become pertinent to food processing industries, dairies, and beverage production lines.
Pharmaceutical and Biotechnology
316Ti is suited to pharmaceutical process piping and clean-room environments because of its cleanliness, low risk of contamination, and durability.
Marine and Coastal
The properties of 316Ti welded pipes are good for salty, sea-coastal atmospheres and marine environments where the attack of chloride by seawater is a problem.
Testing & Quality Assurance of Stainless Steel 316Ti Welded Pipes
Stainless Steel 316Ti welded pipes are tightly tested and controlled in the course of production to ensure reliability, safety, and adherence to international requirements.
Chemical Composition Testing: In the chemical composition testing, a spectrochemical analysis that checks the presence of chromium, nickel, molybdenum, titanium, and carbon according to ASTM and EN.
Mechanical Testing: Tensile strength, yield strength, elongation and hardness, among others, are tests that confirm that the pipes satisfy the intended mechanical properties.
Weld Inspection: Weld seams are inspected closely in order to have uniformity, strength and to be defect-free.
Visual Inspection and Dimensional Inspection: Checking of outer diameter, wall thickness, length, and straightness, surface quality, and finish are involved.
Ultimate Documentation and Certification: Before dispatch, test certificates are provided to the pipes; usually, EN 10204 3.1 or similar certificates are used to confirm compliance.
Looking for High-Quality SS 316Ti Welded Pipes?
Choose Metinox Overseas � Your Reliable SS 316Ti Welded Pipe Supplier & Exporter.
Let us support your projects with quality, precision, and performance.
Frequently Asked Questions (FAQ)
The Stainless Steel 316Ti welded pipe is a pipe made by welding 316Ti stainless steel, which contains titanium for improved strength and corrosion resistance at high temperatures.
Titanium prevents carbide formation, which protects the pipe from intergranular corrosion, especially after welding or high-temperature use.
Yes, 316Ti welded pipes perform well at high temperatures and maintain strength and corrosion resistance.
The most common welding methods include TIG, MIG, ERW, and EFW welding.
For welding the 316Ti pipes, the filler materials such as ER316L or ER316Ti are typically used, depending on the application.
