The use of Inconel 601 pipes and Inconel 601 tubing is known to be very effective in situations that expose the materials to heat and chemical effects. This nickel, chromium and iron alloy is developed and made to be utilized in the carburizing and oxidation, as well as sulfurizing conditions and exposure to extreme heat. The higher levels of chromium provide better resistance to agents of oxidation, including nitric acid and chemical mixtures, and the inclusion of aluminum maintains the oxide scale resistance under specific heat conditions. Inconel 601 tubing and pipes are widely accepted for use in chemical processing, thermal processing, nuclear fuel reprocessing, and the petrochemical industry because of their specific characteristics.
Inconel 601 maintains a very good balance with respect to resilience, ductility, and stress corrosion cracking resistance. These Inconel 601 tubing and pipes can be obtained in seamless, welded, as well as ERW varieties. While seamless Inconel 601 tubing is highly admired for use in high-pressure applications, where leak-tightness is also a prime requirement, welded as well as ERW varieties provide excellent weldability along with satisfactory results. Thanks to their robustness, malleability, and considerable long life, Inconel 601 tubing and pipes continue to be a reliable choice for power plant installation, furnaces, heat exchangers, etc.
Table of Contents
- Specifications of Inconel 601 pipe and tube
- Grade 601 Inconel Pipes & Tubes Chemical Composition
- Inconel Alloy 601 Pipe & Tube Mechanical Properties
- Alloy 601 Pipes and Tubes Equivalent Grades
- Pressure Rating Of DIN 2.4851 Pipe And Tube
- Inconel 601 Pipe Weight Chart
- Types of Inconel 601 pipes and tubes
- Applications of Inconel 601 Pipes and Tubes
- Frequently Asked Questions (FAQ)
Specifications of Inconel 601 pipe and tube
| Parameter | Details & Specifications |
| Seamless Pipe & Tube Standard | ASTM B167 / ASME SB167 |
| Welded Pipe Standard | ASTM B517 / ASME SB517 |
| Welded Tube Standard | ASTM B516 / ASME SB516 |
| Industry Standards | ASTM, ASME, and API |
| Manufacturing Type | Seamless, ERW (Electric Resistance Welded), Welded, Fabricated |
| Pipe Size Range | 15NB to 601NB |
| Pipe Schedules | SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Tube Size Range | 1mm OD up to 254mm OD |
| Tube Thickness | 0.2mm to 20mm |
| Length | Single Random, Double Random, Required Length, Cut Length |
| End Connections | Plain End, Beveled End, Threaded |
Chemical Composition of Inconel 601 pipes and tubes
| Grade | C (%) | Mn (%) | Si (%) | S (%) | Cu (%) | Fe (%) | Ni (%) | Cr (%) |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 - 63.0 | 21.0 - 25.0 |
Mechanical Properties of Inconel 601 pipes and tubes
| Property | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Inconel 601 | 8.1 g/cm^3 | 1411 �C (2571 �F) | 80,000 psi / 550 MPa | 30,000 psi / 205 MPa | 35% |
Equivalent Grades of Inconel 601 pipes and tubes
| Standard | UNS | Werkstoff Nr. | JIS (JP) | AFNOR (FR) | BS (UK) | GOST (RU) | EN (EU) |
| Inconel 601 | N06601 | 2.4851 | NCF 601 | NC23FeA | NA 49 | XH60BT | NiCr23Fe |
Pressure Rating Of DIN 2.4851 Pipe And Tube
| O.D. (in.) | 0.028" | 0.035" | 0.049" | 0.065" | 0.083" | 0.095" | 0.109" | 0.120" |
| 1/8 | 7900 | 10100 | � | � | � | � | � | � |
| 1/4 | 3700 | 4800 | 7000 | 9500 | � | � | � | � |
| 5/16 | � | 3700 | 5400 | 7300 | � | � | � | � |
| 3/8 | � | 3100 | 4400 | 6100 | � | � | � | � |
| 1/2 | � | 2300 | 3200 | 4400 | � | � | � | � |
| 3/4 | � | � | 2200 | 3000 | 4000 | 4600 | � | � |
| 1 | � | � | � | 2200 | 2900 | 3400 | 3900 | 4300 |
Inconel 601 Pipe Weight Chart
| NPS (inch) | Outside Diameter (inch) | Outside Diameter (mm) | Wall Thickness (inch) | Wall Thickness (mm) | Schedule | Weight (kg/Mtr) | Weight (lb/ft) |
| 1/2? | 0.840 | 21 | 0.109 / 0.147 | 2.769 / 3.734 | 40 STD / 80 STD | 1.268 / 1.621 | 0.851 / 1.088 |
| 3/4? | 1.050 | 27 | 0.113 / 0.154 | 2.870 / 3.912 | 40 STD / 80 STD | 1.684 / 2.195 | 1.131 / 1.474 |
| 1? | 1.315 | 33 | 0.133 / 0.179 | 3.378 / 4.547 | 40 STD / 80 STD | 2.501 / 3.325 | 1.679 / 2.172 |
| 1 1/4? | 1.660 | 42 | 0.140 / 0.191 | 3.556 / 4.851 | 40 STD / 80 STD | 3.385 / 4.464 | 2.273 / 2.997 |
| 1 1/2? | 1.900 | 48 | 0.145 / 0.200 | 3.683 / 5.080 | 40 STD / 80 STD | 4.048 / 5.409 | 2.718 / 3.361 |
| 2? | 2.375 | 60 | 0.154 / 0.218 | 3.912 / 5.537 | 40 STD / 80 STD | 5.441 / 7.480 | 3.653 / 5.022 |
| 2 1/2? | 2.875 | 73 | 0.203 / 0.276 | 5.516 / 7.010 | 40 STD / 80 STD | 8.629 / 11.411 | 5.793 / 7.661 |
| 3? | 3.500 | 89 | 0.216 / 0.300 | 5.486 / 7.620 | 40 STD / 80 STD | 11.284 / 15.272 | 7.576 / 10.253 |
| 4? | 4.500 | 114 | 0.237 / 0.337 | 6.020 / 8.560 | � | 16.073 / 22.318 | 10.790 / 14.983 |
| 6? | 6.625 | 168 | 0.280 / 0.432 | 7.112 / 10.973 | 40 STD / 80 XHY | 58.263 / 42.561 | 18.974 / 28.573 |
| 8? | 8.625 | 219 | 0.322 / 0.500 | 8.179 / 12.700 | 40 / 80 XHY | 42.352 / 64.627 | 28.554 / 43.388 |
| 10? | 10.750 | 273 | 0.365 / 0.500 | 9.271 / 12.700 | 40 STD / 60 XHY | 63.301 / 81.530 | 40.483 / 54.735 |
| 12? | 12.750 | 324 | 0.375 / 0.500 | 9.525 / 12.700 | � | 73.824 / 97.438 | 49.562 / 65.415 |
| 14? | 14.000 | 356 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 81.281 / 107.381 | 54.568 / 72.090 |
| 16? | 16.000 | 406 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 93.213 / 123.289 | 62.578 / 82.770 |
| 18? | 18.000 | 457 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 105.144 / 139.198 | 70.588 / 93.450 |
| 20? | 20.000 | 508 | 0.375 / 0.500 | 9.525 / 12.700 | 20 STD / 30 XHY | 117.075 / 155.106 | 78.598 / 104.130 |
| 24? | 24.000 | 610 | 0.375 / 0.500 | 9.525 / 12.700 | 20 STD / XHY | 140.938 / 186.923 | 64.618 / 125.490 |
| 30? | 30.000 | 762 | 0.375 / 0.500 | 9.525 / 12.700 | STD / 20 XHY | 176.731 / 234.647 | 118.648 / 157.530 |
| 36? | 36.000 | 914 | 0.375 / 0.500 | 9.525 / 12.700 | STD / 20 XHY | 215.525 / 282.372 | 142.678 / 198.570 |
| 42? | 42.000 | 1067 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 248.319 / 33.097 | 166.708 / 221.610 |
| 48? | 48.000 | 1219 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 284.112 / 377.822 | 190.738 / 253.650 |
Types of Inconel 601 pipes and tubes

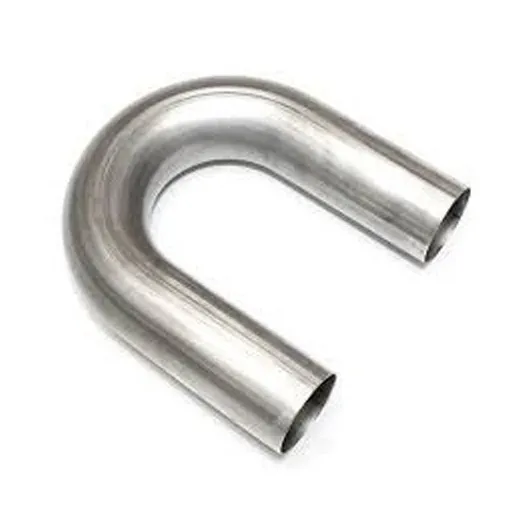

Fabricated & U-Bend Tubes
Precision & Coiled Tubes
Seamless Pipes & Tubes

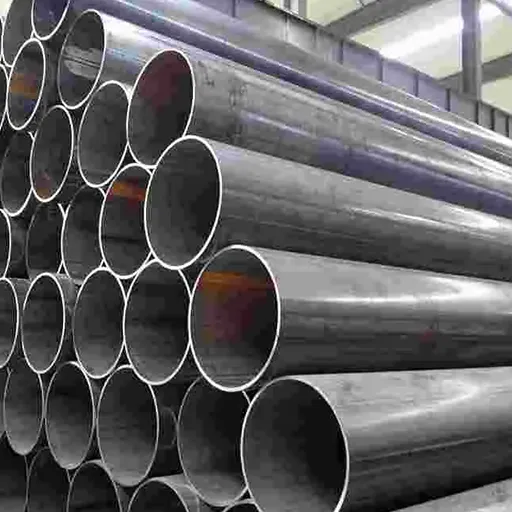

Welded & ERW Pipes
Applications of Inconel 601 Pipes and Tubes
Inconel 601 pipes and tubes shine wherever high temperature, oxidation, and intense environments drive materials to the edge. They're built for tough industrial settings where strength and dependability over a long time are most important.
- Furnace and heat treatment equipment: With their outstanding resistance to oxidation at high temperatures, these tubes are a favorite for furnaces, radiant tubes, and heat treatment lines.
- Chemical and petrochemical fields: They find their application in chemical processing units, reactors, and transfer lines that require resistance to corrosion, carburization, and chemical wear.
- Generation of electricity: The Inconel 601 tubes are used in power plants for powering heat exchangers, boilers, and superheaters to maintain consistent performance under extreme thermal stresses.
- Aerospace and aviation: The alloy is used in aerospace applications, such as exhaust systems and engine parts where the high strength and oxidation resistance at extreme temperatures are required.
- Thermal processing and incineration systems: Inconel 601 pipes resist thermal processing equipment and waste incinerators because they resist cyclic heating and aggressive atmospheres.
- Oil and gas industries: The tubes are applied in refining and processing applications involving exposure to heat, pressure, and corrosive media that require a high-performance material.
Frequently Asked Questions (FAQ)
They are nickel-chromium alloy pipes and tubes designed for high-temperature and corrosion-resistant applications.
Yes, they can be made in custom sizes, thicknesses, and lengths.
Yes, they resist corrosion, oxidation, and high-temperature degradation very well.
Yes, they can be welded using standard techniques with proper precautions.
The prices of the Inconel 601 pipes and tubes vary based on size, thickness, and quantity, but they are generally higher than standard steel due to their alloy composition.
