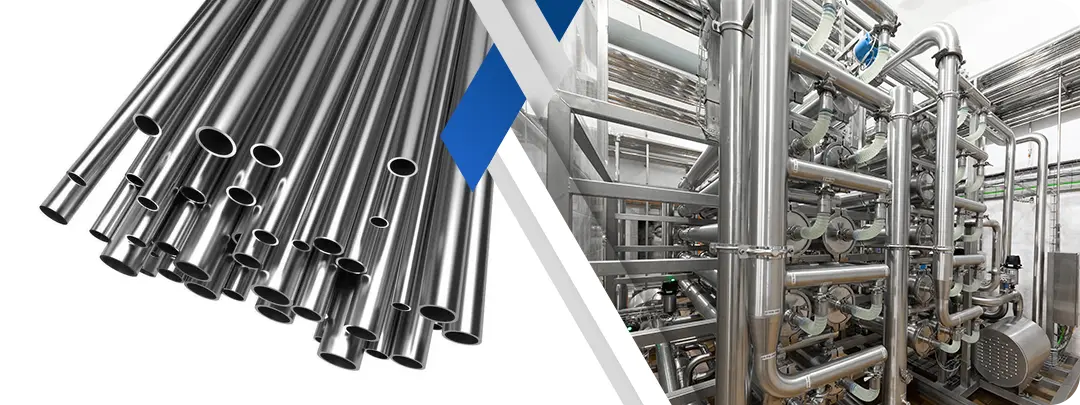

Metinox Overseas is renowned as a credible supplier and exporter of Inconel 600 pipes and tubes. These Inconel 600 pipes and tubes are made up of an alloy composition that includes nickel and chromium and has the ability to resist severe and corrosive environmental and high-temperature conditions. Inconel 600 pipes and tubes are preferred when there is a requirement for high strength, resistance to oxidation, and ability to maintain the metallurgical properties unaltered in the material. A high percentage of chromium content makes them resistant to oxidizing conditions; thus, they find many applications in pressure vessels, heat exchangers, and piping installations in high-temperature and high-pressure plants. These pipes display good resistance to creeping and maintain their mechanical properties intact even when subjected to prolonged high-temperature conditions.
In addition to their high resistance to corrosion, Inconel 600 seamless pipes have high tensile strength, excellent weld ability, and a stable microstructure, all of which result in good performance characteristics even in arduous conditions. The high chromium content in Inconel 600 welded and ERW tubes renders these products highly resistant to oxidizing agents, hot gases, and high-temperature oxidation conditions. Inconel 600 seamless tubes are perfectly suited for chemical processing, nuclear power stations, furnace parts, and nitric acid processing plants due to these desirable properties. Inconel 600 also possesses highly desirable resistance to stress corrosion cracking, particularly in steam generation and nuclear stations such as pipes, separators, and welded structures.
Table of Contents
- Specifications of Inconel 600 Pipes & Tubes
- Grade 600 Inconel Pipes & Tubes Chemical Composition
- Inconel Alloy 600 Pipe & Tube Mechanical Properties
- Alloy 600 Pipes and Tubes Equivalent Grades
- Weight Chart of Inconel Din 2.4816 Rectangular Pipe
- Types of Inconel 600 Pipes & Tubes
- Manufacturing Processes of Inconel 600 Pipes & Tubes
- Applications of Inconel 600 Pipes & Tubes
- Advantages of Inconel 600 Pipes & Tubes
- Frequently Asked Questions (FAQ)
Specifications of Inconel 600 Pipe & Tube
| Parameter | Details & Specifications |
| Seamless Pipe & Tube Standard | ASTM B167 / ASME SB167 |
| Welded Pipe Standard | ASTM B517 / ASME SB517 |
| Welded Tube Standard | ASTM B516 / ASME SB516 |
| Industry Standards | ASTM, ASME, and API |
| Manufacturing Type | Seamless, ERW (Electric Resistance Welded), Welded, Fabricated |
| Pipe Size Range | 15 NB to 600 NB |
| Pipe Schedules | SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Tube Size Range | 1 mm OD up to 254 mm OD |
| Tube Thickness | 0.2 mm to 20 mm |
| Length | Single Random, Double Random, Required Cut Length |
| End Connections | Plain End, Beveled End, Threaded |
Grade 600 Inconel Pipes & Tubes Chemical Composition
| Grade | C (%) | Mn (%) | Si (%) | S (%) | Cu (%) | Fe (%) | Ni (%) | Cr (%) |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 � 10.00 | 72.00 min | 14.00 � 17.00 |
Inconel Alloy 600 Pipe & Tube Mechanical Properties
| Element / Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Inconel 600 | 8.47 g/cm� | 1413�C (2580 �F) | 95,000 psi / 655 MPa | 45,000 psi / 310 MPa | 40% |
Alloy 600 Pipes and Tubes Equivalent Grades
| Standard | UNS | Werkstoff Nr. | JIS (JP) | AFNOR (FR) | BS (UK) | GOST (RU) | EN (EU) |
| Inconel 600 | N06600 | 2.4816 | NCF 600 | NC15FE | NA 13 | ????? 28-2,5-1,5 | NiCr15Fe |
Weight Chart of Inconel Din 2.4816 Rectangular Pipe
| NPS | OD (in) | OD (mm) | Wall Thickness (in) | Wall Thickness (mm) | Schedule | Weight (kg/Mtr) | Weight (lb/ft) |
| 1/2" | 0.840 | 21 | 0.109 / 0.147 | 2.769 / 3.734 | 40 STD / 80 STD | 1.268 / 1.621 | 0.851 / 1.088 |
| 3/4" | 1.050 | 27 | 0.113 / 0.154 | 2.870 / 3.912 | 40 STD / 80 STD | 1.684 / 2.195 | 1.131 / 1.474 |
| 1" | 1.315 | 33 | 0.133 / 0.179 | 3.378 / 4.547 | 40 STD / 80 STD | 2.501 / 3.325 | 1.679 / 2.172 |
| 1 1/4" | 1.660 | 42 | 0.140 / 0.191 | 3.556 / 4.851 | 40 STD / 80 STD | 3.385 / 4.464 | 2.273 / 2.997 |
| 1 1/2" | 1.900 | 48 | 0.145 / 0.200 | 3.683 / 5.080 | 40 STD / 80 STD | 4.048 / 5.409 | 2.718 / 3.361 |
| 2" | 2.375 | 60 | 0.154 / 0.218 | 3.912 / 5.537 | 40 STD / 80 STD | 5.441 / 7.480 | 3.653 / 5.022 |
| 2 1/2" | 2.875 | 73 | 0.203 / 0.276 | 5.516 / 7.010 | 40 STD / 80 STD | 8.629 / 11.411 | 5.793 / 7.661 |
| 3" | 3.500 | 89 | 0.216 / 0.300 | 5.486 / 7.620 | 40 STD / 80 STD | 11.284 / 15.272 | 7.576 / 10.253 |
| 4" | 4.500 | 114 | 0.237 / 0.337 | 6.020 / 8.560 | � / 80 | 16.073 / 22.318 | 10.790 / 14.983 |
| 6" | 6.625 | 168 | 0.280 / 0.432 | 7.112 / 10.973 | 40 STD / 80 XHY | 58.263 / 42.561 | 18.974 / 28.573 |
| 8" | 8.625 | 219 | 0.322 / 0.500 | 8.179 / 12.700 | 40 / 80 XHY | 42.352 / 64.627 | 28.554 / 43.388 |
| 10" | 10.750 | 273 | 0.365 / 0.500 | 9.271 / 12.700 | 40 STD / 60 XHY | 63.301 / 81.530 | 40.483 / 54.735 |
| 12" | 12.750 | 324 | 0.375 / 0.500 | 9.525 / 12.700 | � | 73.824 / 97.438 | 49.562 / 65.415 |
| 14" | 14.000 | 356 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 81.281 / 107.381 | 54.568 / 72.090 |
| 16" | 16.000 | 406 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 93.213 / 123.289 | 62.578 / 82.770 |
| 18" | 18.000 | 457 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 105.144 / 139.198 | 70.588 / 93.450 |
| 20" | 20.000 | 508 | 0.375 / 0.500 | 9.525 / 12.700 | 20 STD / 30 XHY | 117.075 / 155.106 | 78.598 / 104.130 |
| 24" | 24.000 | 610 | 0.375 / 0.500 | 9.525 / 12.700 | 20 STD / XHY | 140.938 / 186.923 | 64.618 / 125.490 |
| 30" | 30.000 | 762 | 0.375 / 0.500 | 9.525 / 12.700 | STD / 20 XHY | 176.731 / 234.647 | 118.648 / 157.530 |
| 36" | 36.000 | 914 | 0.375 / 0.500 | 9.525 / 12.700 | STD / 20 XHY | 215.525 / 282.372 | 142.678 / 198.570 |
| 42" | 42.000 | 1067 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 248.319 / 330.097 | 166.708 / 221.610 |
| 48" | 48.000 | 1219 | 0.375 / 0.500 | 9.525 / 12.700 | STD / XHY | 284.112 / 377.822 | 190.738 / 253.650 |
Types of Inconel 600 Pipes & Tubes
.webp)
Seamless Pipes & Tubes
ASTM B167 / B829
.webp)
Welded & Fabricated
ASTM B517 / B816

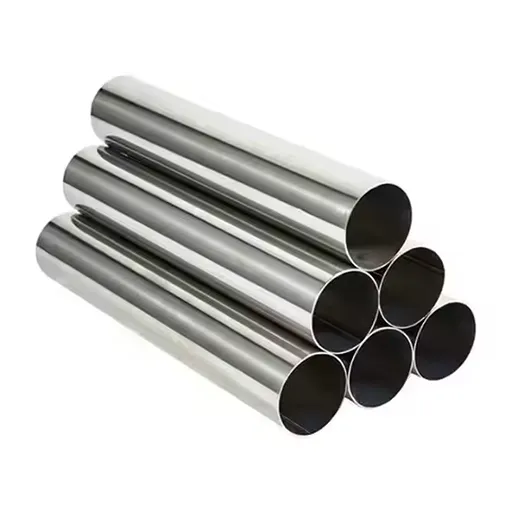

Aerospace & High-Precision
AMS 5580
.webp)

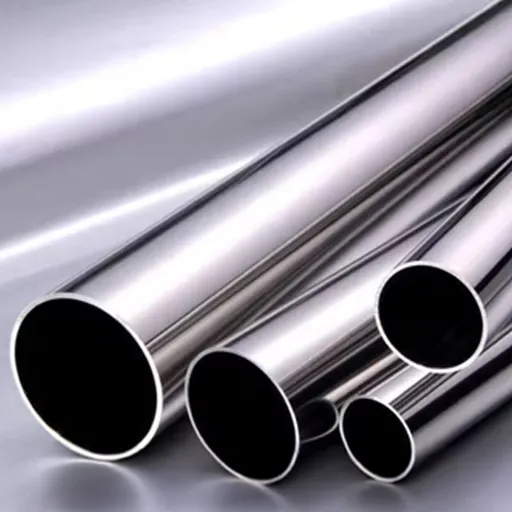

European & Special Forms
EN 2.4816
Manufacturing Processes of Inconel 600 Pipes & Tubes
The manufacturing of Inconel 600 pipes and tubes is done under a low level of control to make them reliable in high temperature and corrosive conditions. The emphasis of every step of the process is on the quality and consistency of materials.
- Raw Material Selection: It starts with the selection of premium nickel-chromium alloy billets of balanced chemical composition to provide strength, corrosion resistance and durability.
- Heating and Rotary Piercing : The process involves even heating and piercing of these billets with a rotary piercing to make a hollow shell. This smooth shape enhances general power and performance.
- Hot Rolling and Cold Drawing : Hollow shell is hot rolled and cold drawn to reach a very accurate size, smooth finish of the surface, and better mechanical properties.
- Heat Treatment : Annealing of the solution is done to eliminate internal stress, enhance ductility, and regain corrosion resistance.
- Surface Finishing : The pipes are completed as annealed and pickled, polished, or bright annealed, depending on requirements of the application.
- Testing and Inspection : Every pipe is strictly tested, including chemical analysis, mechanical testing, and non-destructive tests to make sure that the quality standards are achieved.
Applications of Inconel 600 Pipes & Tubes
Inconel 600 pipes and tubes find application in many industries due to their excellent corrosion and heat resistance, and some of the common industries are listed below.
- Industry Chemical Processing: They are widely used in heat exchangers, reactors, and piping systems that deal with aggressive chemicals.
- Nuclear Power Sector: Applicable to steam generators and high temperature radiation components of the reactor.
- Aerospace Applications: Applications in engine parts and exhaust systems that need high thermal stability.
- Industrial Furnaces: Best suited in furnace needs and heat treatment equipment that is in high temperatures.
- Marine Industry: Does not corrode in the seawater environment thus it can be used in marine piping system.
- Oil and Gas Industry: Used in refineries and processing units where they are required to work under pressure.
Advantages of Inconel 600 Pipes & Tubes
Inconel 600 pipes and tubes have a number of useful advantages, which is why they are used in the most demanding applications.
- Excellent Corrosion Resistance: Oxidation and corrosion resistance in acidic and alkaline environments.
- Suitable for high temperatures: Strong and stable even when the temperature is extremely high.
- Good Workability: Welded, formed and shaped with ease and using conventional methods.
- Stress Corrosion Resistance: Works in stress corrosion cracking environments.
- Long Service Life: Offers reliable service and does not demand a lot of maintenance.
- Long-run Cost-Effective: The high prices are offset by the low cost of replacement and downtime due to its durability.
Frequently Asked Questions (FAQ)
Inconel 600 is a nickel-chromium alloy known for its excellent corrosion resistance, high-temperature strength, and oxidation resistance, making it ideal for pipes and tubes used in extreme and aggressive environments.
Yes, Inconel 600 can withstand temperatures up to approximately 1100�C (2000�F) while maintaining mechanical strength and excellent resistance to oxidation.
Inconel 600 tubes perform exceptionally well in nuclear and power generation systems due to their resistance to corrosion, heat, and stress, making them suitable for steam generators, reactors, and high-temperature piping systems.
Standard tests include chemical analysis, mechanical testing, hardness testing, hydrostatic testing, and non-destructive testing. Certifications typically follow ASTM, ASME, and ISO standards.
Yes, Inconel 600 pipes and tubes can be welded and fabricated using standard fabrication methods. However, proper precautions are required to prevent stress corrosion cracking and ensure structural integrity.
