Incoloy 800 pipes and tubes are known to be reliable when operating in the environment of high temperature and aggressive environments, where you need to guard against oxidation, carburizing and chloride induced stress cracks. The composition of Incoloy 800 is a nickel-iron-chromium alloy to be strong and able to resist corrosion in different temperatures. Incoloy 800 (in its intelligent material structure) does not degrade when subjected to high temperatures. The contents of chromium are allied with high-temperature resistance; balanced nickel and iron contents are allied with resistance to water corrosion and high-temperature fatigue. These features render Incoloy 800 pipe systems dependable when subjected to strict operations in the industry.
Application areas for the seamless and welded tubes and pipes made from Incoloy 800 include chemical processing, petroleum refinement for petrochemicals, power plants, heat exchangers, furnace parts, and boilers. The seamless pipes made from Incoloy 800 are widely sought for their use in higher-pressure applications due to their homogeneous structure, precise dimensional accuracy, and resistance to creep. The welded and ERW variants of the Incoloy 800 tubes are equally good and economic options that do not compromise on strength and corrosion resistance. These pipes and tubes are usually sold in the solution-annealed condition and find an excellent balance between their strength and ductility.
Table of Contents
- Specifications of Incoloy / Alloy 800 / 800H / 800HT Pipe & Tube
- Grade 800/800H/800HT Incoloy Pipes & Tubes Chemical Composition
- Incoloy Alloy 800/800H/800HT Pipe & Tube Mechanical Properties
- Alloy 800/800H/800HT Pipes and Tubes Equivalent Grades
- Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes Weight Chart
- Size Chart of Incoloy 800/ 800H/ 800HT Pipe
- Types of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
- Manufacturing Processes of Alloy 800 / 800H / 800HT Pipes & Tubes
- Applications of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
- Advantages of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
- Frequently Asked Questions (FAQ)
Specifications of Incoloy / Alloy 800 / 800H / 800HT Pipe & Tube
| Parameter | Specification / Details |
| Seamless Pipe & Tube | ASTM B407 / ASME SB407 |
| Welded Pipe | ASTM B514 / ASME SB514 |
| Welded Tube | ASTM B515 / ASME SB515 |
| Standard | ASTM, ASME, and API |
| Type | Seamless / ERW / Welded / Fabricated |
| Length | Single Random, Double Random, Required Length, Cut Length |
| Pipe Size | 15 NB up to 800 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Tube Size | 1 mm OD up to 254 mm OD in 0.2 to 20 mm thickness |
| End | Plain End, Beveled End, Threaded |
Chemical Composition of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Alloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.0�35.0 | 19.0�23.0 | 0.15�0.60 | 0.15�0.60 |
| Alloy 800H | 0.05�0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.0�35.0 | 19.0�23.0 | 0.15�0.60 | 0.15�0.60 |
| Alloy 800HT | 0.06�0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.0�35.0 | 19.0�23.0 | 0.15�0.60 | 0.15�0.60 |
Mechanical Properties of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
| Grade | Density | Melting Point | Tensile Strength (min) | Yield Strength (0.2% Offset) | Elongation (min) |
| 800 | 7.94 g/cm� | 1385 �C (2525 �F) | 75,000 psi (520 MPa) | 30,000 psi (205 MPa) | 30% |
| 800H | 7.94 g/cm� | 1385 �C (2525 �F) | 75,000 psi (520 MPa) | 30,000 psi (205 MPa) | 30% |
Equivalent Grades of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
| Grade | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN / DIN |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ??670 | Z8NC32-21 | X10NiCrAlTi32-20 |
| Incoloy 800H | 1.4958 | N08810 | NCF 800H | NA 15(H) | ??670 | Z8NC33-21 | X5NiCrAlTi31-20 |
| Incoloy 800HT | 1.4859 | N08811 | NCF 800HT | NA 15(HT) | ??670 | � | X8NiCrAlTi32-21 |
Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes Weight Chart
| NPS (Inches) | DN (mm) | Outside Diameter (mm) | Wall Thickness (mm) | Weight (Kg/Meter) |
| 1/2" | 15 | 21.3 | 2.77 | 1.27 |
| 3/4" | 20 | 26.7 | 2.87 | 1.69 |
| 1" | 25 | 33.4 | 3.38 | 2.50 |
| 1 1/2" | 40 | 48.3 | 3.68 | 4.05 |
| 2" | 50 | 60.3 | 3.91 | 5.44 |
| 2 1/2" | 65 | 73.0 | 5.16 | 8.63 |
| 3" | 80 | 88.9 | 5.49 | 11.29 |
| 4" | 100 | 114.3 | 6.02 | 16.07 |
| 6" | 150 | 168.3 | 7.11 | 28.26 |
| 8" | 200 | 219.1 | 8.18 | 42.56 |
| 10" | 250 | 273.0 | 9.27 | 60.31 |
| 12" | 300 | 323.8 | 9.53 | 73.86 |
| 14" | 350 | 355.6 | 9.53 | 81.33 |
| 16" | 400 | 406.4 | 9.53 | 93.27 |
| 18" | 450 | 457.0 | 9.53 | 105.16 |
| 20" | 500 | 508.0 | 9.53 | 117.48 |
| 24" | 600 | 610.0 | 9.53 | 141.30 |
Size Chart of Incoloy 800/ 800H/ 800HT Pipe
| Pipe Size (in) | Outside Diameter (in) | Inside Diameter (in) | Nom. Thickness (in) | Transverse Area External (in2) | Transverse Area Internal (in2) | Length per Sq. Ft Surface (ft) | Volume (ft3/ft) | Weight (lb/ft) | Weight (kg/m) | Threads per Inch |
| 1/8 | 0.405 | 0.27 | 0.07 | 0.13 | 0.06 | 9.43 | 0.0004 | 0.24 | 0.36 | 27 |
| 1/4 | 0.540 | 0.36 | 0.09 | 0.23 | 0.10 | 7.07 | 0.0007 | 0.42 | 0.63 | 18 |
| 3/8 | 0.675 | 0.49 | 0.09 | 0.36 | 0.19 | 5.66 | 0.0013 | 0.57 | 0.84 | 18 |
| 1/2 | 0.840 | 0.62 | 0.11 | 0.55 | 0.30 | 4.55 | 0.0021 | 0.85 | 1.26 | 14 |
| 3/4 | 1.050 | 0.82 | 0.11 | 0.87 | 0.53 | 3.64 | 0.0037 | 1.13 | 1.68 | 14 |
| 1 | 1.315 | 1.05 | 0.13 | 1.36 | 0.86 | 2.90 | 0.0060 | 1.68 | 2.50 | 11 ½ |
| 1 1/4 | 1.660 | 1.38 | 0.14 | 2.16 | 1.50 | 2.30 | 0.0104 | 2.27 | 3.38 | 11 ½ |
| 1 1/2 | 1.900 | 1.61 | 0.15 | 2.84 | 2.04 | 2.01 | 0.0141 | 2.72 | 4.04 | 11 ½ |
| 2 | 2.375 | 2.07 | 0.15 | 4.43 | 3.36 | 1.61 | 0.0233 | 3.65 | 5.43 | 11 ½ |
| 2 1/2 | 2.875 | 2.47 | 0.20 | 6.49 | 4.79 | 1.33 | 0.0333 | 5.79 | 8.62 | 8 |
| 3 | 3.500 | 3.07 | 0.22 | 9.62 | 7.39 | 1.09 | 0.0513 | 7.58 | 11.27 | 8 |
| 3 1/2 | 4.000 | 3.55 | 0.23 | 12.56 | 9.89 | 0.95 | 0.0687 | 9.11 | 13.56 | 8 |
| 4 | 4.500 | 4.03 | 0.24 | 15.90 | 12.73 | 0.85 | 0.0884 | 10.79 | 16.06 | 8 |
| 5 | 5.563 | 5.05 | 0.26 | 24.30 | 20.00 | 0.69 | 0.1389 | 14.61 | 21.74 | 8 |
| 6 | 6.625 | 6.07 | 0.28 | 34.47 | 28.89 | 0.58 | 0.2006 | 18.97 | 28.23 | 8 |
| 8 | 8.625 | 7.98 | 0.32 | 58.42 | 50.02 | 0.44 | 0.3552 | 28.55 | 42.49 | 8 |
| 10 | 10.750 | 10.02 | 0.37 | 90.76 | 78.85 | 0.36 | 0.5476 | 40.48 | 60.24 | 8 |
| 12 | 12.750 | 11.94 | 0.41 | 127.64 | 111.90 | 0.30 | 0.7763 | 53.60 | 79.77 | 8 |
| 14 | 14.000 | 13.13 | 0.44 | 153.94 | 135.30 | 0.27 | 0.9354 | 63.00 | 93.75 | 8 |
| 16 | 16.000 | 15.00 | 0.50 | 201.05 | 176.70 | 0.24 | 1.2230 | 78.00 | 116.08 | 8 |
| 18 | 18.000 | 16.88 | 0.56 | 254.85 | 224.00 | 0.21 | 1.5550 | 105.00 | 156.26 | 8 |
| 20 | 20.000 | 18.81 | 0.59 | 314.15 | 278.00 | 0.19 | 1.9260 | 123.00 | 183.05 | 8 |
| 24 | 24.000 | 22.63 | 0.69 | 452.40 | 402.10 | 0.16 | 2.7930 | 171.00 | 254.48 | 8 |
Types of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
Alloy 800H Round Tubes
Incoloy 800H Expansion Loops
Incoloy 800H Seamless Tube

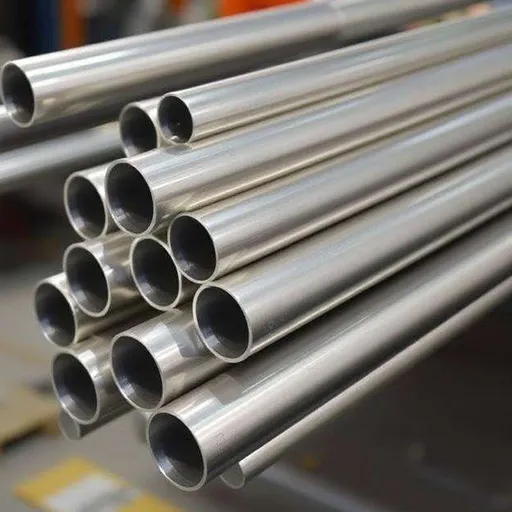

Incoloy 800HT Decorative Tube
Incoloy 800HT Heat Exchanger Tube
Incoloy 800HT Heat Exchanger Tube

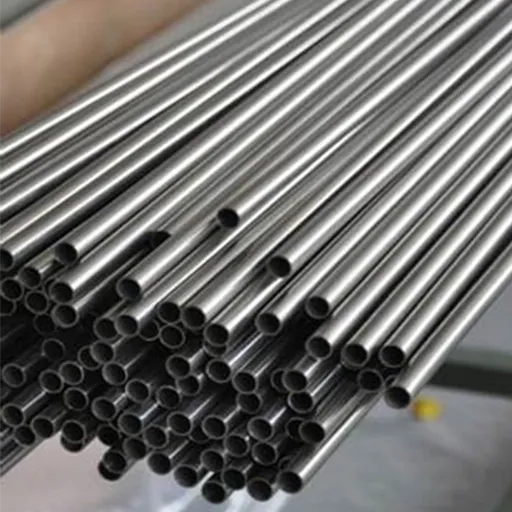

Incoloy 800HT Instrumentation Tube

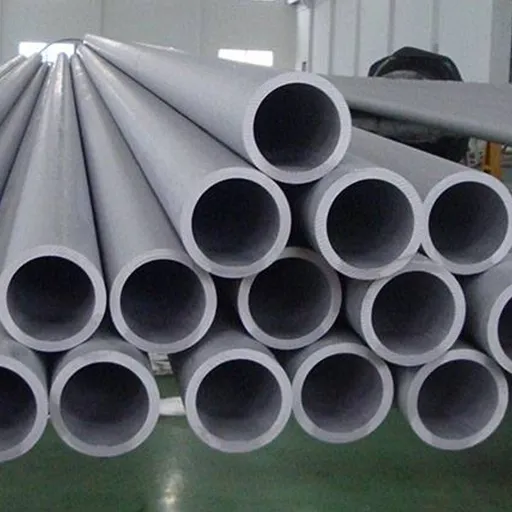

Incoloy Alloy 800HT Welded Tube

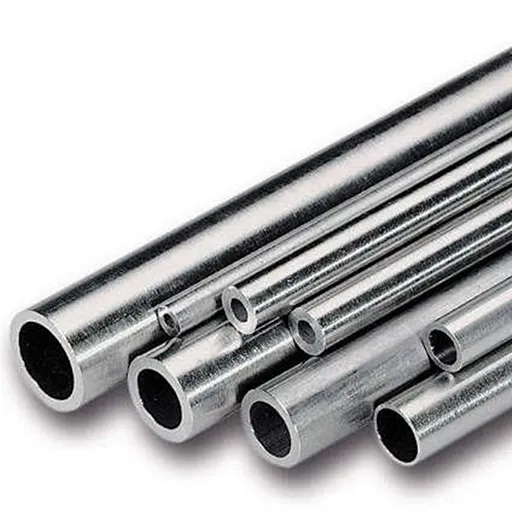

Incoloy Alloy 8000 Capillary Tube
Manufacturing Processes of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
Incoloy / Alloy 800, 800H, and 800HT pipes and tubes have high oxidation, carburization and high-temperature strength resistance. Such alloys find extensive applications in hot and corrosive conditions like chemical processing, power generation and furnace applications. The manufacturing process follows the following step-by-step process.
- Raw Material Selection: The best Incoloy 800 / 800H / 800HT billets are chosen. These alloys have better strengths, corrosion and elevated temperature stability especially in nickel-iron-chromium alloys.
- Heating: To obtain the necessary plasticity of the hot working and shaping, the billets are heated to a controlled range of temperatures (usually approximately 1150 regarding 1250 o C).
- Piercing: A rotary piercer or mandrel mill is used to pierce the heated billets into a hollow shell that is used to create seamless pipes or tubes.
- Elongation & Sizing: A hollow shell is rolled elongated to obtain the desired outside diameter and thickness of the walls to get the desired dimension.
- Hot Rolling & Annealing: Hot rolling improves homogeneity and mechanical characteristics. Solution annealing is done to relieve the internal stresses as well as enhance ductility and corrosion resistance.
- Cleaning & Surface Finish: Pickling is also done to clean the oxide scale and surface impurities. Pipes and tubes can also be polished and passivated depending on the requirements needed by the application.
- Cutting & Inspection: The completed products are sliced to the demanded length, straightened and undergo a dimensional test, pressure test and surface inspection to verify the standards like ASTM B407 and ASTM B163.
Applications of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
Incoloy / Alloy 800 / 800H / 800HT pipes and tubes are widely used in those industries where high temperature operation and resistance to oxidation and long life are needed. Some of the most common industries that use this material are given below.
- Chemical and Petrochemical: Applications include heat exchangers, reactors and piping systems of corrosive chemicals and high temperature process fluids.
- Oil and Gas Industry: Used in processing units, reformers and high temperature piping where carburization resistance and thermal stress resistance is required.
- Power Generation Plants: Usually applied in boiler tubing, superheaters, and heat exchangers because they are able to maintain their strength at higher temperatures.
- Furnaces & Heat treatment equipment: Best suited in furnace tubes, radiant tubes, and retorts that are working under severe heat and oxidizing conditions.
- Food and Beverage: Applied in processing and heating systems where oxidation resistance and thermal stability are needed without being compromised by cleanliness.
- Biotechnology and Pharmaceutical: Applicable in clean steam lines and high-purity systems where resistance to corrosion and stability of materials matter.
Advantages of Incoloy / Alloy 800 / 800H / 800HT Pipes & Tubes
Incoloy / Alloy 800 / 800H / 800HT pipes and tubes offer exceptional benefits making them the preferred choice for demanding industrial applications including excellent high-temperature strength, superior corrosion resistance, and long service life.
Frequently Asked Questions (FAQ)
They are nickel-iron-chromium alloys for high-temperature service. The 800 is the standard grade, 800H offers higher high-temperature strength, and 800HT provides the best strength and stability at very high temperatures.
They can handle temperatures up to about 800�1100�C, depending on the grade.
Yes, all three grades are easily weldable using standard welding methods.
Used in chemical processing, oil & gas, power plants, heat exchangers, and furnaces.
800HT offers better strength, creep resistance, and durability at very high temperatures.
