Metinox Overseas is a reputable manufacturer, supplier, and exporter of Alloy 20 Pipes and Tubes with a complete array of them to suit different industrial needs. Our Alloy 20 pipes and tubes come in a wide range of sizes, wall thickness, length, shapes and end finish including seamless and welded models. Our solutions are also custom-made depending on the client's drawings and application requirements. Our products are manufactured in Alloy 20 (also referred to as Carpenter 20) of the finest quality, which meets the standards of ASTM and ASME among other world standards, and therefore their performance, life span and resistance to corrosion are consistent and reliable in all the demanding conditions.
Alloy 20 is a nickel-chromium-molybdenum alloy that has a high nickel content of around 32 to 38 to be used specifically in high resistance to sulfuric acid and corrosion that occurs due to chloride. Copper also helps in increasing its resistance to sulfuric acid attack greatly and molybdenum and chromium also help in improving the pitting and crevice corrosion resistance. UNS N08020 (Niobium-stabilized Alloy 20) is also an added structural stability alloy and reduces intergranular corrosion during welding. Alloy 20 Pipes & Tubes find extensive application in chemical processing, petroleum plants, power generation, pharmaceuticals, plastics and heat exchangers, particularly in areas where 316/316L stainless steel is vulnerable to stress corrosion cracking. Metinox Overseas is the provider of Alloy 20 piping solutions that can be applied to high-pressure industrial processes all over the globe with the help of competitive prices and quality that is highly reliable.
Table of Contents
- Specifications of ASME SB 729 Alloy 20 Pipe & Tube
- UNS N08020 Pipes & Tubes Chemical Composition
- Alloy 20 Pipes & Tubes Mechanical Properties
- Alloy UNS N08020 Pipes & Tubes Equivalent Grades
- Types of Alloy 20 Pipes & Tubes
- Manufacturing Process of Alloy 20 Pipes & Tubes
- Applications & Usage of Alloy 20 Pipes & Tubes
- Frequently Asked Questions (FAQs)
Specifications of ASME SB 729 Alloy 20 Pipes & Tubes
| Specifications | Details |
| Specifications | ASTM B729, B464, B468 / ASME SB729, SB464, SB468 |
| Standard | ASTM, ASME and API |
| Size | 4 mm to 219 mm |
| Wall Thickness (W.T.) | 0.5 mm to 20 mm |
| Type | Seamless / ERW / Welded / Fabricated |
| Length | Single Random, Double Random & Required Length, Cut Length or as per customer's requirement |
| Schedule | SCH 20, SCH 30, SCH 40, STD, SCH 80, XS, SCH 60, SCH 120, SCH 140, SCH 160, XXS |
UNS N08020 Pipes & Tubes Chemical Composition
| Grade | C (Carbon) | Mn (Manganese) | Si (Silicon) | S (Sulfur) | Cu (Copper) | Ni (Nickel) | Cr (Chromium) | Fe (Iron) | Mo (Molybdenum) | P (Phosphorus) |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 � 4.00 | 32.00 � 38.00 | 19.00 � 21.00 | 29.85 min* | 2.00 � 3.00 | 0.045 max |
Alloy 20 Pipes & Tubes Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Alloy 20 | 8.1 g/cm� | 1443 �C (2430 �F) | 80,000 psi / 551 MPa | 35,000 psi / 241 MPa | 30% |
Alloy UNS N08020 Pipes & Tubes Equivalent Grades
| Standard | Werkstoff Nr. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Types of Alloy 20 Pipes & Tubes

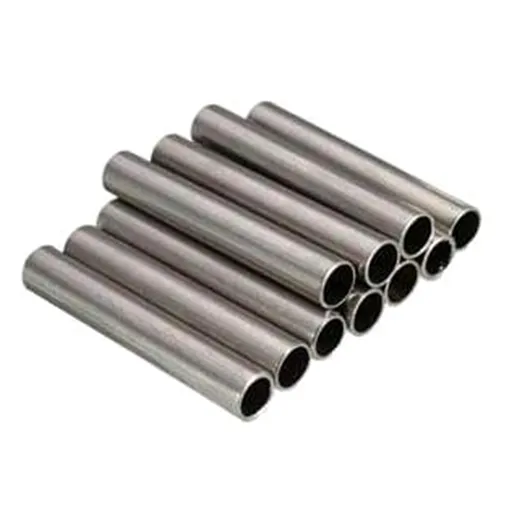

Alloy 20 ERW Pipes

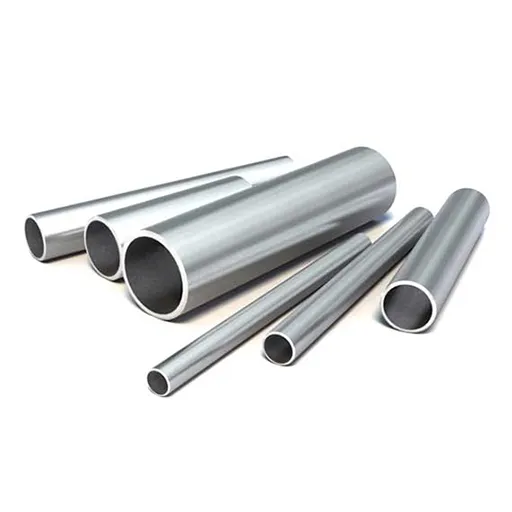

Alloy 20 ERW Tubes

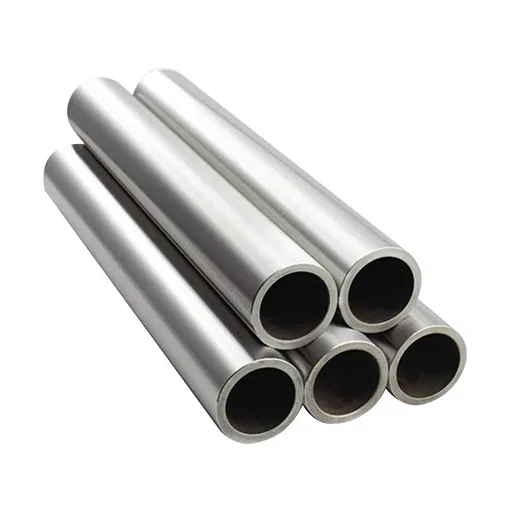

Alloy 20 Seamless Pipes

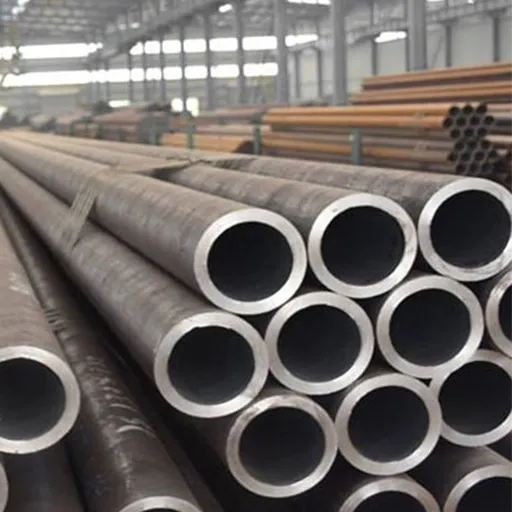

Alloy 20 Seamless Tubes

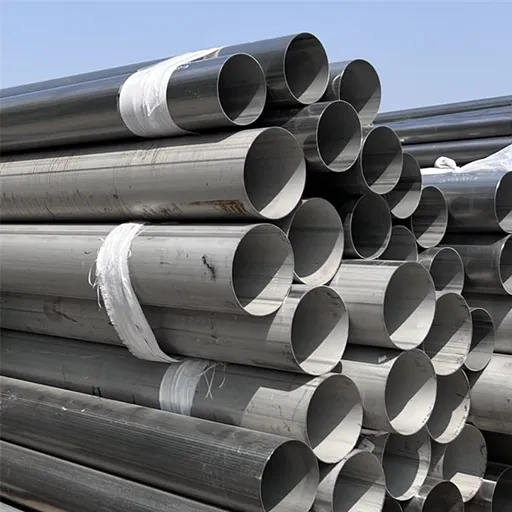

Alloy 20 Welded Pipes

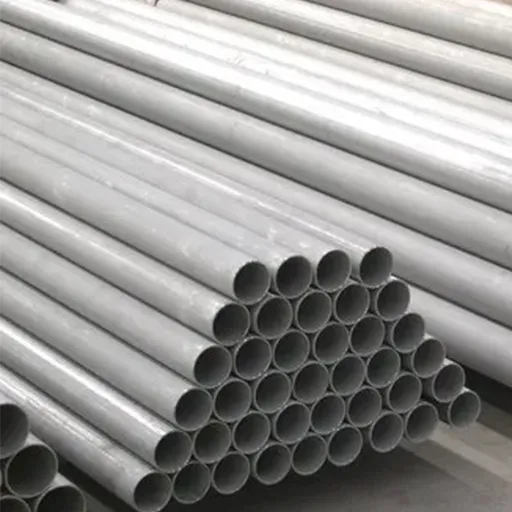

Alloy 20 Welded Tubes
Manufacturing Process of Alloy 20 Pipes & Tubes
Alloy 20 pipes and tubes are manufactured by means of a highly controlled process that guarantees high resistance to corrosion of sulfuric acid, high mechanical strength, and long-term operation in hostile industrial conditions.
- Selection of Raw Materials
High-quality nickel, chromium, molybdenum, copper and iron are used to produce alloy 20. The balanced chemical composition is also carefully maintained to offer excellent resistance against sulfuric acid, pitting corrosion and chloride-induced stress corrosion cracking. - Melting & Refining Process
The chemical homogeneity, low impurity content and corrosion resistance are achieved through the advanced melting techniques, which include Electric Arc Furnace (EAF) and then followed by Argon Oxygen Decarburization (AOD) or Vacuum Induction Melting (VIM). - Pipe & Tube Forming
The alloy 20 pipes and tubes are produced by the method of seamless extrusion or welded fabrication. Hot rolling and cold drawing processes guarantee tight dimensional tolerances, even wall thickness and clean surface finish. - Heat Treatment & Annealing
Controlled cooling of the solution annealed is done in order to restore ductility, enhance toughness and stabilize the microstructure of the alloy. This is an important step in ensuring that there is corrosion resistance in the acidic and high-pressure conditions.
Applications & Usage of Alloy 20 Pipes & Tubes
Alloy 20 pipes and tubes find wide application in the industries that require top resistance to sulfuric acid, chlorides and hostile chemical atmosphere, and good mechanical characteristics.
- Chemical Processing
The Alloy 20 has a high level of resistance to sulfuric acid and chemical corrosion, and is widely used in acid handling systems, reactors, storage tanks and heat exchangers. - Refining and Petrochemical
Used in processing units, pipelines and heat transfer equipment where they come in contact with chemicals that are corrosive and also high temperatures. - Pharmaceutical
Applied in high-purity piping systems, reactors, and processing equipment where resistance to contamination, cleanliness, and stability of materials are vital. - Food & Beverage
Applicable to hygienic piping, storage and processing lines due to the fact that the Alloy 20 does not corrode and ensures purity and safety of the product. - Power Generation
Applied in flue gases, condensers and heat exchangers in thermal and chemical based power plants, where there are acidic condensates. - Water Treatment &Pollution Control
It is common in scrubbers, effluent treatment plants and desulfurization systems, because of its acid and corrosive wastage resistance. - Pulp & Paper Industry
Used in plants of bleaching, chemical recovery systems, where bleaching solutions are significantly used in the process.
Frequently Asked Questions (FAQs)
Alloy 20 pipes are used in chemical processing, acid handling, and industrial piping where strong corrosion resistance is required.
Yes, Alloy 20 has excellent resistance to sulfuric acid.
Yes, Alloy 20 performs better than stainless steel in highly corrosive and acidic environments.
For the Alloy 20, the UNS number is N08020.
Alloy 20 offers good resistance to chloride-induced corrosion and stress corrosion cracking.
