The Super Duplex Steel UNS S32760 Pipes have been characterized as having impressive corrosion resistance, mechanical strength and performance in the hostile environment. We are the supplier and exporter of high quality UNS S32760 pipes which are produced to high standards of international standards in Metinox Overseas. This grade of super duplex is a balanced austenite ferrite microstructure with added chromium, molybdenum and nitrogen, resulting in higher resistance to pitting, crevice, and stress corrosion cracking. Super Duplex S32760 Pipes are much more efficient in terms of durability under moisture and chlorides and other adverse industrial environments as compared to the traditional carbon steel, and thus their use is usually preferred in high-pressure services.
The use of UNS S32760 seamless, as well as welded, pipes is extensive in the oil & gas industry, petrochemical industry, shipping industry, food industry, as well as in the power industry. The iron alloy is known for its outstanding resistance to rusting, as well as staining, but is sensitive to parameters such as oxygen concentration, salinity, temperature, and concentrations of chemicals. The use of these pipes is also an important aspect in equipment, pressure tanks, heat exchangers, structural parts, as well as heavy machinery, whereby high strength, as well as high resistance, is the primary factor. Due to the ability of the iron alloy to withstand highly pressurized, as well as highly acidic, environments, the Super Duplex S32760 pipes can withstand highly challenging environments, provided that the correct selection, as well as standards, are followed.
Table of Contents
- Super Duplex Stainless Steel UNS S32760 Pipe Specification
- ASME SA790 Super Duplex Steel S32760 Pipes Chemical Composition
- UNS S32760 Super Duplex Stainless Steel Seamless and Welded Pipe Mechanical Properties
- ASTM A790 Super Duplex Steel S32760 Pipes Equivalent Grades
- Size Chart of ASTM A790 Super Duplex F55 UNS S32760 Pipe
- Different Types of Super Duplex Steel UNS S32760 Pipes
- Manufacturing Process of Super Duplex Steel UNS S32760 Pipes
- Industries & Applications of Super Duplex Steel UNS S32760 Pipes
- Frequently Asked Questions (FAQs)
Super Duplex Stainless Steel UNS S32760 Pipe Specification
| Specifications | Details |
| Standards | ASTM A790 / ASME SA790 |
| Dimensions | ASTM, ASME, and API |
| Schedule | SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Seamless Pipe Sizes | 1/2" NB � 8" NB |
| Welded Pipe Sizes | 6" NB � 24" NB |
| Length | Single Random, Double Random & Required Length |
| End Finish | Plain End, Beveled End, Threaded |
| Outer Diameter | 6.0 mm � 630 mm |
| Thickness | 0.3 mm � 50 mm |
ASME SA790 Super Duplex Steel S32760 Pipes Chemical Composition
| Element | Carbon (C) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) | Chromium (Cr) | Molybdenum (Mo) | Nickel (Ni) | Nitrogen (N) | Iron (Fe) |
| Value (%) | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 � 26.00 | 3.00 � 4.00 | 6.00 � 8.00 | 0.20 � 0.30 | 57.61 min |
UNS S32760 Super Duplex Stainless Steel Seamless and Welded Pipe Mechanical Properties
| Property | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Hardness Brinell (HB) max |
| S32760 | 795 | 550 | 25 | 270 |
ASTM A790 Super Duplex Steel S32760 Pipes Equivalent Grades
| Common Name | UNS Designation | Werkstoff Nr. | EN Designation |
| Super Duplex F55 | S32760 | 1.4501 | X2CrNiMoCuWN25-7-4 |
Size Chart of ASTM A790 Super Duplex F55 UNS S32760 Pipe
| Pipe Size (in) | Ext. Dia (in) | Int. Dia (in) | Nom. Thick (in) | Trans. Area (in�) | Steel Area (in�) | Ext. Surf (ft/ft�) | Int. Surf (ft/ft�) | Volume (ft�/ft) | Weight (lb/ft) | Weight (kg/m) | Threads/Inch |
| 1/8 | 0.405 | 0.270 | 0.070 | 0.130 | 0.060 | 9.43 | 14.20 | 0.0004 | 0.24 | 0.36 | 27 |
| 1/4 | 0.540 | 0.360 | 0.090 | 0.230 | 0.100 | 7.07 | 10.49 | 0.0007 | 0.42 | 0.63 | 18 |
| 3/8 | 0.675 | 0.490 | 0.090 | 0.360 | 0.190 | 5.66 | 7.75 | 0.0013 | 0.57 | 0.84 | 18 |
| 1/2 | 0.840 | 0.620 | 0.110 | 0.550 | 0.300 | 4.55 | 6.14 | 0.0021 | 0.85 | 1.26 | 14 |
| 3/4 | 1.050 | 0.820 | 0.110 | 0.870 | 0.530 | 3.64 | 4.64 | 0.0037 | 1.13 | 1.68 | 14 |
| 1 | 1.315 | 1.050 | 0.130 | 1.360 | 0.860 | 2.90 | 3.64 | 0.0060 | 1.68 | 2.50 | 11� |
| 1 1/4 | 1.660 | 1.380 | 0.140 | 2.160 | 1.500 | 2.30 | 2.77 | 0.0104 | 2.27 | 3.38 | 11� |
| 1 1/2 | 1.900 | 1.610 | 0.150 | 2.840 | 2.040 | 2.01 | 2.37 | 0.0141 | 2.72 | 4.04 | 11� |
| 2 | 2.375 | 2.070 | 0.150 | 4.430 | 3.360 | 1.61 | 1.85 | 0.0233 | 3.65 | 5.43 | 11� |
| 2 1/2 | 2.875 | 2.470 | 0.200 | 6.490 | 4.790 | 1.33 | 1.55 | 0.0333 | 5.79 | 8.62 | 8 |
| 3 | 3.500 | 3.070 | 0.220 | 9.620 | 7.390 | 1.09 | 1.25 | 0.0513 | 7.58 | 11.27 | 8 |
| 3 1/2 | 4.000 | 3.550 | 0.230 | 12.560 | 9.890 | 0.95 | 1.08 | 0.0687 | 9.11 | 13.56 | 8 |
| 4 | 4.500 | 4.030 | 0.240 | 15.900 | 12.730 | 0.85 | 0.95 | 0.0884 | 10.79 | 16.06 | 8 |
| 5 | 5.563 | 5.050 | 0.260 | 24.300 | 20.000 | 0.69 | 0.76 | 0.1389 | 14.61 | 21.74 | 8 |
| 6 | 6.625 | 6.070 | 0.280 | 34.470 | 28.890 | 0.58 | 0.63 | 0.2006 | 18.97 | 28.23 | 8 |
| 8 | 8.625 | 7.980 | 0.320 | 58.420 | 50.020 | 0.44 | 0.48 | 0.3552 | 28.55 | 42.49 | 8 |
| 10 | 10.750 | 10.020 | 0.370 | 90.760 | 78.850 | 0.36 | 0.38 | 0.5476 | 40.48 | 60.24 | 8 |
| 12 | 12.750 | 11.940 | 0.410 | 127.640 | 111.900 | 0.30 | 0.32 | 0.7763 | 53.60 | 79.77 | 8 |
| 14 | 14.000 | 13.130 | 0.440 | 153.940 | 135.300 | 0.27 | 0.28 | 0.9354 | 63.00 | 93.75 | 8 |
| 16 | 16.000 | 15.000 | 0.500 | 201.050 | 176.700 | 0.24 | 0.25 | 1.2230 | 78.00 | 116.08 | 8 |
| 18 | 18.000 | 16.880 | 0.560 | 254.850 | 224.000 | 0.21 | 0.23 | 1.5550 | 105.00 | 156.26 | 8 |
| 20 | 20.000 | 18.810 | 0.590 | 314.150 | 278.000 | 0.19 | 0.20 | 1.9260 | 123.00 | 183.05 | 8 |
| 24 | 24.000 | 22.630 | 0.690 | 452.400 | 402.100 | 0.16 | 0.17 | 2.7930 | 171.00 | 254.48 | 8 |
Different Types of Super Duplex Steel UNS S32760 Pipes
Super Duplex UNS S32760 Pipe Supplier in India, UNS S32760 Super Duplex Steel Pipe Gauges, Super Duplex Stainless Steel UNS S32760 schedule 160 Pipes, Stainless Steel 2507 Super Duplex Pipe, Super Duplex UNS S32760 schedule 40 Pipe, Super Duplex UNS S32760 schedule 80 Pipes, Seamless Super Duplex Stainless Steel UNS S32760 Pipe exporter in India, Super Duplex Steel UNS S32760 Pipe price list in India, WNR 1.4501 Welded Pipe, 2507 Super Duplex Electric Resistance Welded Pipe, Super Duplex Steel UNS S32760 schedule 10 Pipe, Super Duplex Steel 1.4501 EFW Pipe Manufacturer in India, DIN 1.4501 Seamless Pipes, Welded Super Duplex Stainless Steel UNS S32760 Pipe

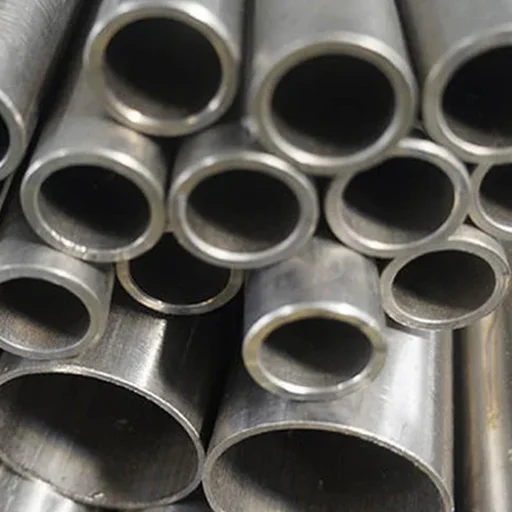

Super Duplex Steel S32760 Welded Pipe

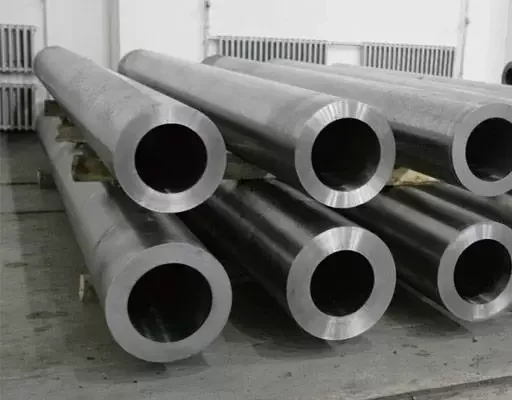

Super Duplex Steel S32750 Seamless Pipe

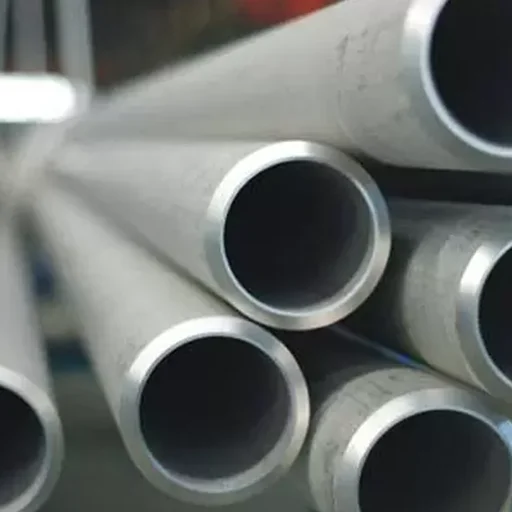

Super Duplex UNS S32760 Round Pipe
Manufacturing Process of Super Duplex Steel UNS S32760 Pipes
Super Duplex Steel UNS S32760 pipes are made through modern technologies in order to make sure that they are of great strength, corrosion resistance, and reliability in severe service conditions. All manufacturing processes are closely observed to ensure that there is the right microstructure and that performance is uniform.
Seamless Pipe ProductionIt starts with high-quality alloy billets, which are heated, and holes are pierced in their middle to form hollow regions. These parts are then subjected to hot forming and finishing processes in order to obtain very tight tolerances, smooth finishes and great mechanical integrity.
Welded Pipe ManufacturingIn welded pipes, Super Duplex steel plates or coils are rolled to tubular surfaces and welded together by means of controlled welding. Optimization of the welding process is done so that the joint offers equal strength and corrosion resistance as the parent material.
Heat Treatment ProcessSolution annealing is done after forming or welding of the pipes. This heat technology increases toughness, eliminates remaining stresses, and increases pitting resistance and stress corrosion cracking resistance.
Inspection and Testing
The pipes are checked in terms of quality, such as dimensional checking, mechanical checking, and non-destructive testing, to check their adherence to the international standards.
Industries & Applications of Super Duplex Steel UNS S32760 Pipes
The pipes made of Super Duplex Steel, UNS S32760, are also widely spread in industries where high strength is needed to be high, along with the necessary corrosion resistance. The applications that are commonly used are as outlined below.
Oil & Gas Industry
They are widely used in offshore and onshore oil and gas projects in terms of flowlines, pipelines, and processing equipment, because they are able to overcome high pressure and corrosive media.
Chemical and Process Industries
UNS S32760 pipes are designed to incorporate aggressive chemical and high temperature fluids in processing plants, reactors, and piping systems.
Marine and Seawater Applications
These pipes are normally applied in marine structures, shipbuilding, and seawater intake systems because of their high ability to resist seawater corrosion.
Water Treatment Plants and Desalination
They are also used extensively in desalination plants, evaporators, and reverse osmosis systems due to their salty and brackish water resistance.
Pressure Equipment and Heat Exchangers
The pipes are used in heat exchangers and pressure vessels where high strength, durability, and resistance against corrosion are needed.
Frequently Asked Questions (FAQs)
Super Duplex Steel UNS S32760 is a high-alloy stainless steel with a mixed austenitic and ferritic structure. It offers much higher strength and better corrosion resistance than standard stainless steels, especially in chloride and harsh environments.
These pipes are commonly used in oil and gas, chemical processing, marine systems, desalination plants, and power generation industries where strength and corrosion resistance are critical.
Super Duplex S32760 pipes have higher strength and superior resistance to corrosion compared to standard duplex steels and 316 stainless steel, making them more suitable for extreme conditions.
Yes, they are highly suitable for seawater and offshore use because of their excellent resistance to saltwater corrosion and stress corrosion cracking.
The main benefits include high strength, excellent corrosion resistance, and long service life. On the other hand, the limitation is the higher cost and the need for proper fabrication and welding control.
