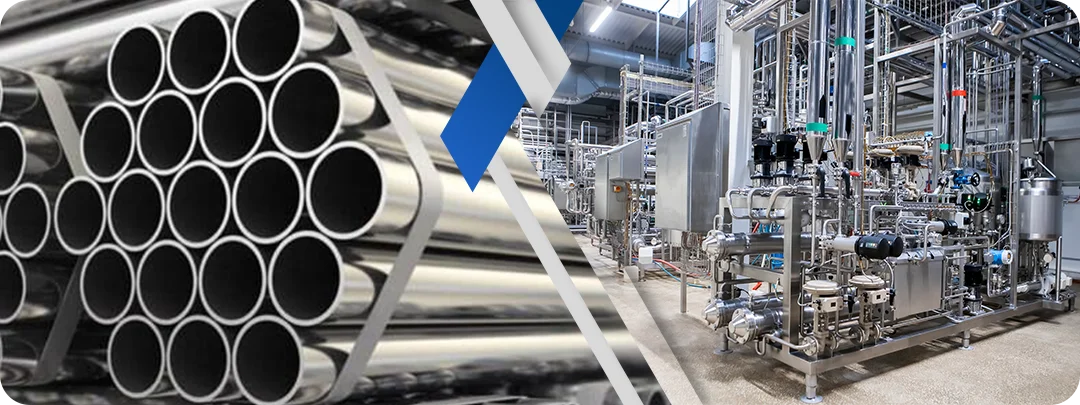

Stainless Steel 316Ti Tubes

Metinox Overeas is a reputed manufacturer and supplier of high quality Stainless Steel 316Ti Seamless Tubes, which could be utilized in most diluted organic acids under moderate temperatures. Stainless Steel 316Ti Seamless Tubesis could be used in pure phosphoric acid under low temperature and in diluted solutions of up to 10 percent under high temperatures. Even in low concentrations (even in chloride solutions) Stainless Steel 316Ti Welded Tubes is not well suited to service in the chloride solution, or in sulphuric acid service. Stainless Steel 316Ti EFW Tubes are recommended in the forging, upsetting and other hot working processes with working temperatures of 2100 Degree F -2300 Degree F (1149 Degree C -1260 Degree C). The stainless steel 316Ti ERW Tubes has large concentrations of costly components including molybdenum and nickel. SS 316Ti Tubes is entirely non-magnetic under any condition and is very formable and welds well. Type 316Ti Seamless Tubes also possess an excellent toughness, even to cryogenic temperature, owing to its austenitic structure.

Grade 316Ti Seamless Tubes Grade 316Ti Seamless Tubes is a titanium stabilized austenitic alloy that is heat resistant and used in services at the 1000 Degree F -1600 Degree F temperature range. Alloy 316Ti Seamless Tubes are mainly used in areas of continuous and intermittent service temperatures that adhere to the carbide precipitation range of 800 Degree F -1500 Degree F. Stainless Steel UNS S31635 Tubes is stronger at high temperatures and is occasionally used in a structural and pressure containing application at temperatures in excess of approximately 500 Degree C.

Request a QuoteQuote Icon

Stainless Steel 316Ti Tube Specification

Specifications ASTM A213, A249, A269 / ASME SA213, SA249, SA269
Outside Diameter 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range 0.3mm � 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type Seamless / ERW / Welded / Fabricated / CDW
Form Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tubes
Length Single Random, Double Random & Required Length
End Plain End, Beveled End, Treaded
Outside Finish 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements
Delivery Condition Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5 EN 10216 316Ti Seamless Steel Tubes, EN 10216-5 1.4571 Seamless Steel Tube for pressure purposes
EN 10217-7 EN 10217 316Ti Welded Steel Tubes, Steel EN 10217-7 1.4571 Welded Tube for pressure purposes

Stainless Steel UNS S31635 Tubes Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
SS 316Ti S31635 1.4571 Z6CNDT17-123 X6CrNiMoTi17-12-2 SUS 316Ti 320S31 08Ch17N13M2T

316Ti Stainless Steel Tube Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 316Ti 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.395 min

ASME SA213 SS TP316Ti Tubes Mechanical Properties

Grade Tensile Strength Yield Strength (0.2%Offset) Elongation Hardness
        Rockwell B (HR B) max Brinell (HB) max
SS 316Ti Psi � 75000, MPa � 515 Psi � 30000, MPa � 205 35 % 75 205

ASTM A312 TP316Ti Stainless Steel Tube Sizes

1/8" IPS(.405" O.D.) 3 1/2" IPS( 4.000" O.D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540" O.D.) 4" IPS(4.500" O.D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675" O.D.) 5" IPS( 5.563" O.D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840" O.D.) 6" IPS(6.625" O.D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050" O.D.) 8 " IPS(8.625" O.D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315' O.D.) 10" IPS(10.750" O.D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660" O.D.) 12" IPS(12.750" O.D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900" O.D.) 14" IPS(14.000" O.D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375" O.D.) 16" IPS(16.000" O.D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875" O.D.) 18" IPS (18.000" O.D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500" O.D.)
SCH 5, 10, 40, 80, 160, XXH

Stainless Steel 316Ti Seamless Tube Surface Finish

Surface Finish Internal Surface(ID) Exterbal Surface(OD)
Roughness Average(RA) Roughness Average(RA)
  � inch �m � inch �m
AP
Annealed & Pickled
Not defined Not defined 40 or Not defined 1.0 or Not defined
BA
Beight Annealed
40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
MP
Mechanical Polish
40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
EP
Electro Polish
15,10,7,5 0.38,0.25,0.20;0.13 32 0.8

SS TP316Ti Tube Tolerances

Stainless Steel 316Ti Tube OD Tolerance
Stainless Steel 316Ti Tube OD Stainless Steel 316Ti Tube Tolerance
4mm to 35mm +/- 0.08mm
35mm to 38mm +/- 0.15mm
38mm to 60mm +/- 0.20mm
60mm and above +/- 0.25mm
Stainless Steel 316Ti Tube Wall Thickness
028 = .028" Thick
035 = .035" Thick
039 = .039" Thick
049 = .049" Thick
065 = .065" Thick
083 = .083" Thick
109 = .109" Thick

Other types of Stainless Steel 316Ti Tubes

ASTM A249 TP316Ti Tubes, SS 316Ti Tube Price List, 316Ti Stainless Steel U-Tubes, SS 316Ti Fabricated Tube, SS 316Ti Electric Resistance Welded Tube, 1/2" Stainless Steel 316Ti Tubing, ASTM A269 TP316Ti Tubing, 3/8" Stainless Steel 316Ti Tube Stockists in India, ASTM A213 316Ti Stainless Steel Tube, Seamless Stainless Steel 316Ti Tube Manufacturer in Mumbai, Seamless and Welded Austenitic Stainless Steel 316Ti Tubing Distributor, 16mm Stainless Steel 316Ti Tube Supplier in India, Welded Stainless Steel UNS S31635 Tubing, Stainless Steel 316Ti Rectangle Tubes, Stainless Steel 316Ti Tube Gauges, Grade TP316Ti Tubes, SS 316Ti Cold Drawn Tube exporter in India
