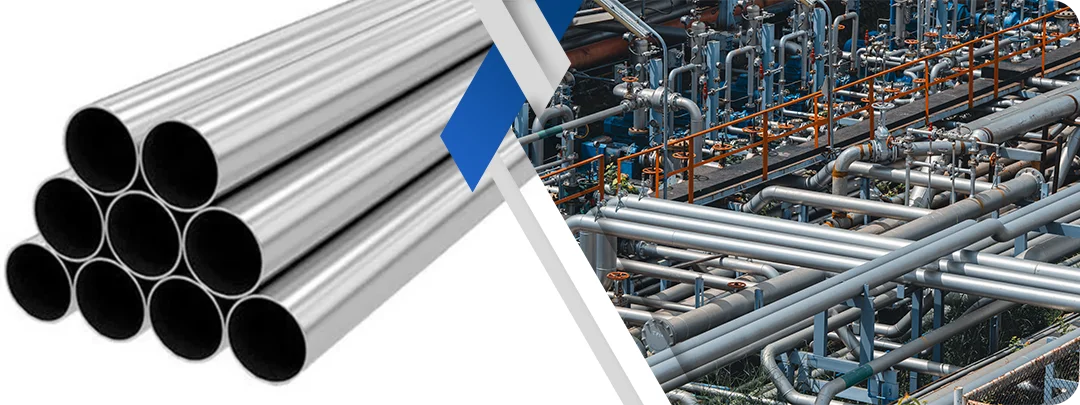

Metinox Overseas is a major manufacturer and supplier of Stainless Steel 316Ti Seamless Pipes, and they provide this in a large variety to satisfy the requirements of both international and domestic customers. Such pipes are produced using high quality of UNS S31635 alloy, which is excellent in terms of corrosion resistance, mechanical strength as well as performance at high temperatures. Our SS 316Ti pipes are very tough, leak-free and have high level of dimensional accuracy, hence they are ideal in industries that demand a good piping system like chemical processing, pharmaceuticals, power generation and also in the marine industry. It is a material of choice where the harsh environment is concerned as 316Ti is resistant to general corrosion and has high-temperature strength.
Our Stainless Steel 316Ti Seamless Pipes are available in most sizes, wall thicknesses, and lengths, it can be tailor-made to meet the needs of each client. Our pipes are manufactured with high-quality alloys and advanced technology and are stringently tested to satisfy the requirements of such international standards as ASTM A312 and ASME. All the pipes are thoroughly quality checked and this has meant that the pipes perform better in the extreme applications. In Metinox Overseas, we boast of offering competitive prices, delivery on time and delivering excellent customer service. You can get the pipes of standard size or custom size; our team is willing to help you with 316Ti stainless steel pipes. Get in touch with us now and know more about our products and services.
| Parameter | Details & Manufacturing Range |
| Specifications | ASTM A312 / ASME SA312, EN 10216-5, EN 10217-7 |
| Seamless Pipe Size | 1/2" NB to 16" NB (Standard); up to 24" NB available Ex-stock |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD |
| Thickness Range | 0.3 mm to 50 mm |
| Pipe Schedules | SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type & Form | Seamless; Round Pipes, Square Pipes, Rectangular Pipes |
| Length | Single Random, Double Random & Required Cut Lengths |
| End Connections | Plain End, Beveled End, Threaded |
| Outside Finish | 2B, No.1, No.4, No.8 Mirror Finish; Custom finishes available |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| European Equiv. | Seamless: EN 10216-5 (1.4571) / Welded: EN 10217-7 (1.4571) |
| Grade | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Mo (%) | Ni (%) | Fe (%) |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 � 18.00 | 2.00 � 3.00 | 10.00 � 14.00 | 68.395 min |
| Grade | Tensile Strength (min) | Yield Strength (0.2% Offset) (min) | Elongation (min) | Hardness (max) |
| SS 316Ti | 75,000 psi (515 MPa) | 30,000 psi (205 MPa) | 35% | Rockwell B (HRB): 75 / Brinell (HB): 205 |
| Physical Property | Value (Metric) | Value (Imperial) |
| Density | 7.99-8.00 g/cm� | 0.289-0.290 lb/in� |
| Melting Range | 1370-1400 �C | 2500-2550 �F |
| Modulus of Elasticity | 193 GPa | 28.0 x 10� ksi |
| Electrical Resistivity | 74 �O�cm (at 20�C) | 29.1 �O�in |
| Specific Heat | 500 J/kg�K (0�100 �C) | 0.12 BTU/lb��F |
| Magnetic Permeability | < 1.02 (Annealed) | Non-Magnetic |
| Standard | UNS | Werkstoff Nr. | AFNOR | EN | JIS | BS | GOST |
| SS 316Ti | S31635 | 1.4571 | Z6CNDT17-12 | X6CrNiMoTi17-12-2 | SUS 316Ti | 320S31 | 08Ch17N13M2T |
Metinox Overseas offers a comprehensive range of SS 316Ti pipe types to meet diverse industrial requirements.

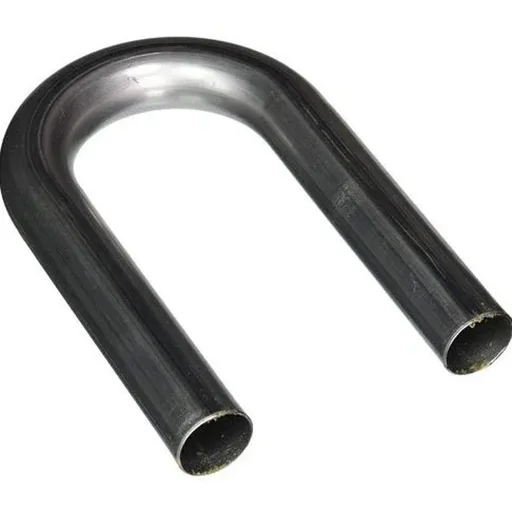

U-Shape Pipes
Thick-Wall Pipes
Square Pipes

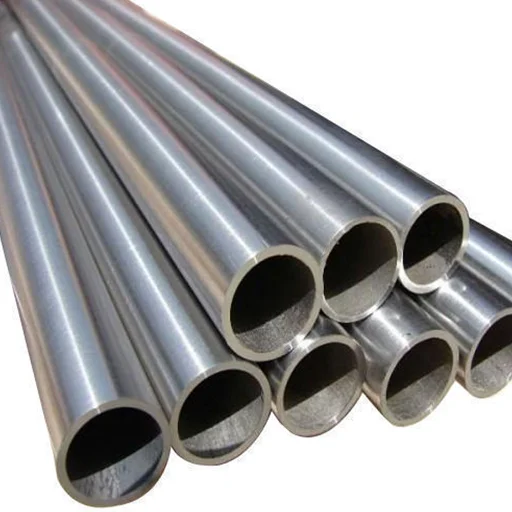

Round Pipes
Rectangular Pipe

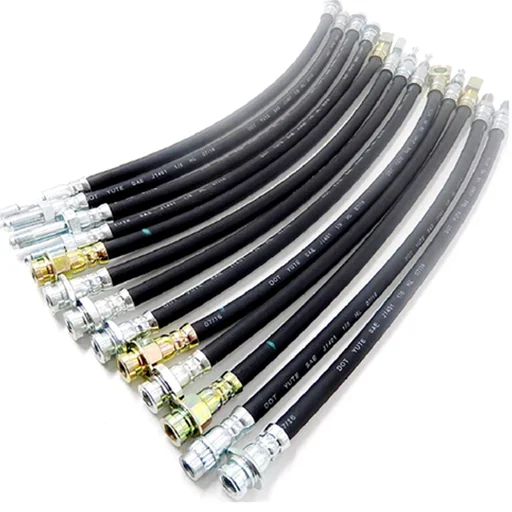

Hydraulic Pipe
Honed Tubes
Coiled Tubing
The SS 316Ti Seamless Pipe has been engineered and strongly tested to meet the high-performance requirements of its durability, corrosion resistance, and stability in high temperatures.
The SS 316Ti seamless Pipes are utilized in most industries because it has good corrosion resistance and high mechanical strength and is able to operate under extreme conditions.
The SS 316Ti pipes are commonly applied in the offshore platforms, refineries and pipelines. They resist corrosion and strong at elevated temperatures hence are applicable in the processing of corrosive and high-pressure fluids in such industries.
They apply in chemical reactors, distillation columns as well as other demanding applications where aggressive chemicals and high temperatures are involved. SS 316Ti pipes have a great capacity of withstanding chemical corrosion.
SS 316Ti seamless pipes are applied in heat exchangers, boilers, and steam generators, where a high strength and resistance to heat are required in power generation.
Due to its corrosion resistance qualities, SS 316Ti is one of the preferred materials in marine and offshore systems involving the use of seawater systems, shipbuilding, and offshore platforms where chloride environments are common.
The pipes are usually Ss 316Ti that can be used in structural piping, pressure systems, and other industrial purposes because they are strong, durable, and corrosion-resistant.
The pipes find application in architectural construction, pulp mills and heat transfer systems where corrosion resistance and stability at high temperatures are important.
Choose Metinox Overseas � Your Reliable SS 316Ti Seamless Pipe Supplier & Exporter.
Let us support your projects with quality, precision, and performance.
The 316Ti stainless steel seamless pipes are used in high-temperature applications and corrosive environments, including chemical processing, marine, offshore, power plants, and heat exchangers.
316Ti contains titanium, which improves high-temperature performance and resistance to sensitization, making it better for elevated temperature environments compared to 316/316L, which is more suitable for low-carbon applications.
316Ti seamless pipes meet international standards such as ASTM A312, ASME SA312, EN 10216-5, and EN 10217-7.
Yes, 316Ti pipes are designed to withstand high temperatures, offering excellent performance in environments with extreme heat.
316Ti seamless pipes are available in various sizes (from 1/2" NB to 16" NB), with thicknesses ranging from 0.3mm to 50mm. They come in different schedules like SCH 5, SCH 10, SCH 40, SCH 80, and others.
