SS 904L Pipe Fittings Manufacturer & Supplier in India
Metinox Overseas is a leading manufacturer, supplier, and exporter of premium-quality SS 904L pipe fittings in India. Engineered for superior performance, our 904L stainless steel pipe fittings offer excellent resistance to highly corrosive environments, particularly against strong acids such as sulphuric acid. This low-carbon, non-stabilised austenitic grade provides outstanding weldability, high ductility, and enhanced resistance to crevice corrosion and stress corrosion cracking due to its elevated copper content.
Our UNS N08904 / DIN 1.4539 pipe fittings are known for their non-magnetic properties, excellent oxidation resistance, and long-term durability in demanding conditions. SS 904L pipe fittings maintain reliable mechanical strength and corrosion resistance at service temperatures up to approximately 450°C (840°F) under typical operating conditions. For non-load-bearing applications in oxidising environments, they can resist temperatures up to 850°C. Additionally, solution annealing is performed within the range of 1080°C to 1150°C to restore optimal corrosion resistance after fabrication.
Manufactured in compliance with international standards such as ASTM B366 and ASME SB366, Metinox Overseas ensures high precision, consistent quality, and long service life across all products. Our extensive range includes socket weld and threaded pipe fittings, suitable for both high-pressure and low-pressure systems. Socket weld fittings are widely preferred in critical applications requiring strong, leak-proof joints, while threaded fittings are commonly used in cost-effective systems such as water distribution and fire protection pipelines.
SS 904L pipe fittings from Metinox Overseas are widely used across industries including chemical processing, oil & gas, marine and seawater handling, pollution control, and pharmaceuticals. We also offer value-added services such as heat treatment, pickling, polishing, and custom fabrication to meet specific project requirements.
Choose Metinox Overseas for reliable, high-performance SS 904L pipe fittings at competitive prices.
Table of Contents
- Types of ASTM A403 WP304 Pipe Fittings
- Specification of ASTM A403 WP304 Pipe Fittings
- Chemical Composition of ASTM A403 WP304 Pipe Fittings
- Mechanical Properties of ASTM A403 WP304 Pipe Fittings
- ASTM A403 WP304L Pipe Fittings Dimensions, Thickness & Size Chart
- ASTM A403 WP304 Pipe Fittings Sizes
- ASTM A403 Threaded Fittings
- ASTM A403 WP304 Pipe Fittings Price
- ASTM A403 WP304L Pipe Fittings Packing and Shipment
- ASTM A403 WP304L Pipe Fittings Applications & Usage
- FAQs on ASTM A403 WP304 Pipe Fittings
SS 904L Buttweld Pipe Fittings Specifications
| Category | Details |
|---|---|
| Stock Sizes | Seamless: ½” – 10” Welded: ½” – 48” |
| Wall Thickness | SCH 10 to SCH 160 |
| Standards | ASTM A403 / ASME SA403 ANSI B16.9 / ASME B16.28 MSS SP-43 |
| Material Grades | UNS N08904 WNR 1.4539 |
| Surface Finish | Polished, Pickled, Mill Finish |
| Manufacturing Type | Seamless, Welded, Fabricated |
| Elbow Bending Methods | Rotary Draw Bending Mandrel Bending Ram-Type Bending Roll Bending |
| Bending Radius | 1D, 2D, 3D, 5D |
| Physical Properties | Density: 8.05 g/cm³ Melting Point: 1350°C (2460°F) Temp Range: 850°C – 1150°C |
| Product Forms | Elbow, Tee, Reducer, Cap |
| Testing | Ultrasonic Test PMI HIC Testing |
| Inspection | 100% Radiography Test Report Third-Party Inspection |
| Manufacturing Process | Hot Forming, Mandrel Forming |
| Trade Names | INOX 904L, SUS 904L, AISI 904L |
| Origin | Indian, Japanese, Korean, European, American |
| Applications | Power Generation, Construction, Shipbuilding |
| Packaging | Bubble Wrap, Wooden Boxes, Custom Packaging |
| Service Life | Up to 30 Years |
Types of 904L Stainless Steel Pipe Fittings
SS 904L Pipe Fittings Schedule Chart
| DN (mm) | Schedule 80S 90° Elbow | 45° Elbow | Equal Tee | Schedule 10S 90° Elbow | 45° Elbow | Equal Tee | Schedule 40S 90° Elbow | 45° Elbow | Equal Tee |
|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.04 | 0.03 | 0.07 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 |
| 10 | 0.06 | 0.04 | 0.09 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 |
| 15 | 0.10 | 0.05 | 0.14 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 |
| 20 | 0.11 | 0.05 | 0.20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 |
| 25 | 0.22 | 0.14 | 0.38 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 |
| 32 | 0.40 | 0.23 | 0.68 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 |
| 40 | 0.51 | 0.29 | 1.02 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 |
| 50 | 0.91 | 0.59 | 1.59 | 0.50 | 0.25 | 0.85 | 0.70 | 0.40 | 1.28 |
| 65 | 1.81 | 0.99 | 3.13 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 |
| 80 | 2.97 | 1.50 | 4.45 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 |
| 90 | 4.00 | 2.00 | 5.44 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 |
| 100 | 6.18 | 2.81 | 7.71 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 |
| 150 | 16.32 | 8.16 | 13.61 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 |
| 200 | 33.11 | 16.56 | 28.12 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 |
| 250 | 51.71 | 25.86 | 49.90 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 |
| 300 | 79.38 | 39.69 | 83.91 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 |
SA 403 WP904L Cross Fittings Weight Chart
| Size (Inches) | Weight (KG) |
|---|---|
| ¾ | 0.17 |
| 1 | 0.30 |
| 1¼ | 0.60 |
| 1½ | 0.90 |
| 2 | 1.30 |
| 2½ | 2.20 |
| 3 | 3.30 |
| 4 | 5.30 |
| 6 | 11.00 |
| 8 | 21.00 |
| 10 | 36.00 |
| 12 | 62.00 |
SS 904L Pipe Fittings Standard Designation
| Property | Specification |
|---|---|
| Material Grade | Stainless Steel 904L |
| UNS Number | N08904 |
| DIN / EN | 1.4539 |
| Type | Austenitic Stainless Steel |
SS 904L Pipe Caps Dimensions Chart
| NPS (Inches) | Cap Length (Inches) | Outside Diameter (mm) | Outside Diameter (Inches) |
|---|---|---|---|
| 1/2 | 1.0 | 21.3 | 0.840 |
| 3/4 | 1.0 | 26.7 | 1.050 |
| 1 | 1.5 | 33.4 | 1.315 |
| 1 1/4 | 1.5 | 42.2 | 1.660 |
| 1 1/2 | 1.5 | 48.3 | 1.900 |
| 2 | 1.5 | 60.3 | 2.375 |
| 2 1/2 | 1.5 | 73.0 | 2.875 |
| 3 | 2.0 | 88.9 | 3.500 |
| 3 1/2 | 2.5 | 101.6 | 4.000 |
| 4 | 2.5 | 114.3 | 4.500 |
| 5 | 3.0 | 141.3 | 5.563 |
| 6 | 3.5 | 168.3 | 6.625 |
| 8 | 4.0 | 219.1 | 8.625 |
| 10 | 5.0 | 273.1 | 10.750 |
| 12 | 6.0 | 323.9 | 12.750 |

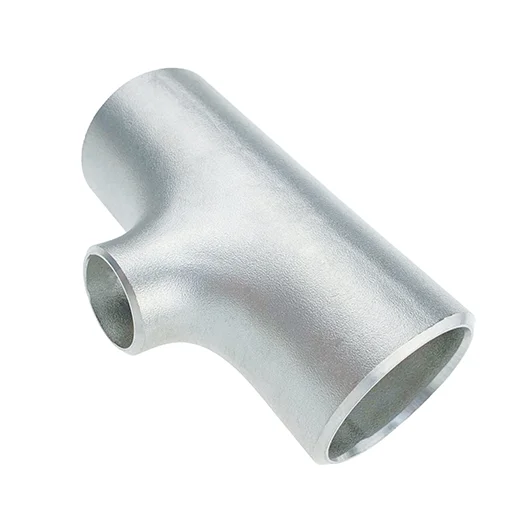

SS 904L Unequal Tee Dimensions Chart
| Nominal Pipe Size (Inches) | Center to End (Inches) | Outside Diameter (Inches) | Outside Diameter (mm) |
|---|---|---|---|
| 1/2 | 1.0 | 0.840 | 21.3 |
| 3/4 | 1.125 | 1.050 | 26.7 |
| 1 | 1.5 | 1.315 | 33.4 |
| 1 1/4 | 1.875 | 1.660 | 42.2 |
| 1 1/2 | 2.25 | 1.900 | 48.3 |
| 2 | 2.5 | 2.375 | 60.3 |
| 2 1/2 | 3.0 | 2.875 | 73.0 |
| 3 | 3.375 | 3.500 | 88.9 |
| 3 1/2 | 3.75 | 4.000 | 101.6 |
| 4 | 4.125 | 4.500 | 114.3 |
| 5 | 4.875 | 5.563 | 141.3 |
| 6 | 5.625 | 6.625 | 168.3 |
| 8 | 7.0 | 8.625 | 219.1 |
| 10 | 8.5 | 10.750 | 273.1 |
| 12 | 10.0 | 12.750 | 323.9 |
Documentation for SUS 904L Seamless Pipe Fittings
Metinox Overseas provides complete quality documentation with every shipment of SS 904L pipe fittings, including:
- Material Test Certificates (MTC)
- Raw Material Test Reports
- Heat Treatment Records
- Quality Assurance Plan (QAP)
- Packing List & Commercial Invoice
- Guarantee Letter & Traceability Records
Bending Radius Chart – SA 403 WP904L Elbows
SS 904L Pipe Fittings – Standard Elbow Radius & Angle (ASME B16.9 / B16.28)
| Fitting Type | Angle | Radius Type | Radius (D) | Standard |
|---|---|---|---|---|
| Long Radius Elbow | 90° | LR | 1.5D | ASME B16.9 |
| Long Radius Elbow | 45° | LR | 1.5D | ASME B16.9 |

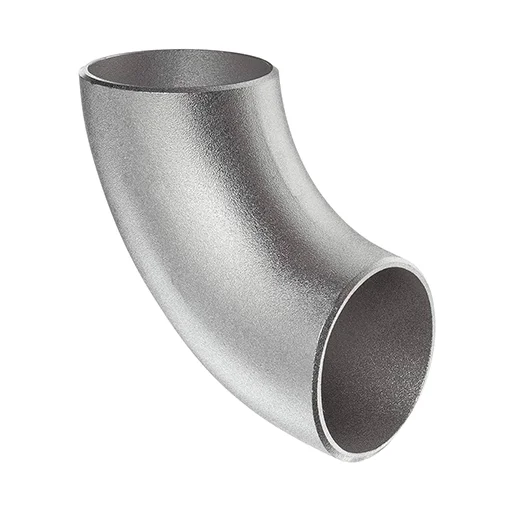

| Short Radius Elbow | 90° | SR | 1D | ASME B16.28 |
| Return Bend | 180° | LR | 1.5D | ASME B16.9 |
| Return Bend | 180° | SR | 1D | ASME B16.28 |
| 3D Elbow | 90° | Custom | 3D | Project-specific |
Note:
Custom bend radii such as 2D, 5D, and 10D are available on request for specialized applications like pigging systems and long pipeline routing, typically manufactured as per MSS SP-75 or project specifications.
Global Export & Delivery Network
Weekly Shipments
| Country | Continent | Transit Time (Days) | Port |
|---|---|---|---|
| Egypt | Africa | 18 | Damietta |
| Kenya | Africa | 19 | Lamu |
| Netherlands | Europe | 30 | Harlingen |
Monthly Shipments
| Country | Continent | Transit Time (Days) | Port |
|---|---|---|---|
| South Africa | Africa | 25–30 | Port Elizabeth |
| Oman | Asia | 5 | Sultan Qaboos |
SA 403 WP904L Cross Fittings Dimensions
| NPS (Inches) | Center to End (Inches) | OD (mm) | OD (Inches) |
|---|---|---|---|
| 1 | 1.5 | 33.4 | 1.315 |
| 1 1/4 | 1.875 | 42.2 | 1.660 |
| 1 1/2 | 2.25 | 48.3 | 1.900 |
| 2 | 2.5 | 60.3 | 2.375 |
| 2 1/2 | 3.0 | 73.0 | 2.875 |
| 3 | 3.375 | 88.9 | 3.500 |
| 3 1/2 | 3.75 | 101.6 | 4.000 |
| 4 | 4.125 | 114.3 | 4.500 |
| 5 | 4.875 | 141.3 | 5.563 |
| 6 | 5.625 | 168.3 | 6.625 |
| 8 | 7.0 | 219.1 | 8.625 |
| 10 | 8.5 | 273.1 | 10.750 |
| 12 | 10.0 | 323.9 | 12.750 |

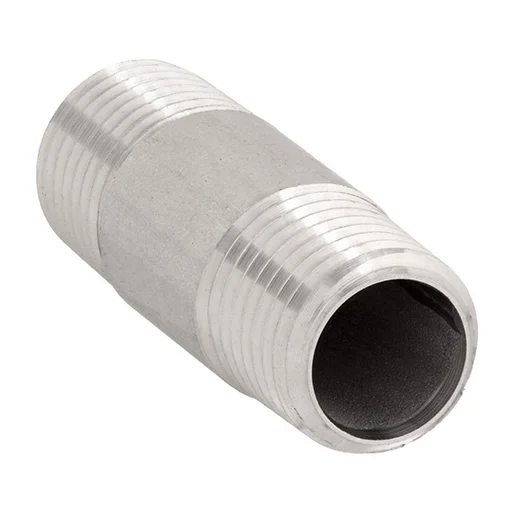

UNS N08904 Nipple Size Chart
| Size (Inch) | Threads (TPI) | Decimal Equivalent |
|---|---|---|
| 1/16 | 27 | 0.313 |
| 1/8 | 27 | 0.405 |
| 1/4 | 18 | 0.540 |
| 3/8 | 18 | 0.675 |
| 1/2 | 14 | 0.840 |
| 3/4 | 14 | 1.050 |
| 1 | 11.5 | 1.315 |
| 1 1/4 | 11.5 | 1.660 |
| 1 1/2 | 11.5 | 1.900 |
| 2 | 11.5 | 2.375 |
| 2 1/2 | 8 | 2.875 |
| 3 | 8 | 3.500 |
| 3 1/2 | 8 | 4.000 |
| 4 | 8 | 4.500 |
Surface Finishes Available
- Pickled
- Sand Blasted
- Polished
- Annealed
SS 904L Concentric Reducer Weight Chart
| NPS | Weight (KG) | Weight (LBS) |
|---|---|---|
| 1/2 | 0.08 | 0.18 |
| 3/4 | 0.09 | 0.19 |
| 1 | 0.18 | 0.40 |
| 1 1/4 | 0.27 | 0.60 |
| 1 1/2 | 0.41 | 0.90 |
| 2 | 0.73 | 1.60 |
| 2 1/2 | 1.47 | 3.25 |
| 3 | 2.27 | 5.00 |
| 3 1/2 | 3.06 | 6.75 |
| 4 | 4.08 | 9.00 |
| 5 | 6.80 | 15.00 |
| 6 | 11.11 | 24.50 |
| 8 | 22.68 | 50.00 |
| 10 | 39.92 | 88.00 |
| 12 | 56.70 | 125.00 |
| 14 | 72.57 | 160.00 |
| 16 | 93.44 | 206.00 |
| 18 | 117.93 | 260.00 |
| 20 | 145.15 | 320.00 |
| 22 | 178.72 | 394.00 |
| 24 | 208.65 | 460.00 |
| 26 | 249.48 | 550.00 |
| 30 | 332.94 | 734.00 |
| 36 | 481.72 | 1062.00 |
Chemical Composition of SS 904L Pipe Fittings (UNS N08904)
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 23.0 – 28.0 |
| Chromium (Cr) | 19.0 – 23.0 |
| Molybdenum (Mo) | 4.0 – 5.0 |
| Copper (Cu) | 1.0 – 2.0 |
| Carbon (C) | 0.020 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.035 max |
WNR 1.4539 (SS 904L) Elbow Chemical Composition
| Element | Description | Composition (%) |
|---|---|---|
| Nickel (Ni) | Enhances corrosion resistance | 23.0 – 28.0 |
| Chromium (Cr) | Improves oxidation resistance | 19.0 – 28.0 |
| Molybdenum (Mo) | Increases pitting resistance | 4.0 – 5.0 |
| Copper (Cu) | Protects against acid corrosion | Up to 1.0 |
| Manganese (Mn) | Improves strength | Up to 1.00 |
| Silicon (Si) | Enhances heat resistance | Up to 1.0 |
| Phosphorus (P) | Controlled impurity | Max 0.045 |
| Sulfur (S) | Controlled impurity | Max 0.035 |
SS 904L Pipe Fittings Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength | 220 MPa (min) |
| Tensile Strength | 490 MPa (min) |
| Elongation | 35% (min) |
| Hardness | 90 HRB (max) |
Note: These values comply with ASTM A403 / EN 10088 standards for UNS N08904 (SS 904L) and ensure reliable performance in high-stress and corrosive environments.
SS 904L Pipe Fittings Equivalent Grades
| Standard | Grade |
|---|---|
| UNS | N08904 |
| EN / DIN | 1.4539 |
| EN Name | X1NiCrMoCu25-20-5 |
| JIS | SUS 904L |
| BS | 904S13 |
| AFNOR | Z2NCDU25-20 |
SS 904L Pipe Fittings Physical Properties
| Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Electrical Resistivity | 1.0 µΩ·m |
| Modulus of Elasticity | 195 GPa |
| Thermal Conductivity | 15.8 W/m·°C |
| Specific Heat | 450 J/kg·°C |
Metinox Overseas is a globally recognized supplier of SS 904L pipe fittings, delivering high-performance materials engineered for durability, corrosion resistance, and demanding industrial applications.
SS 904L Pipe Fittings Manufacturing Standards
Metinox Overseas manufactures and supplies SS 904L pipe fittings in compliance with globally recognized standards, ensuring high precision, durability, and performance in corrosive and high-pressure environments.
| Standard | Description |
|---|---|
| ASME B16.9 | Buttweld Pipe Fittings |
| ASME B16.28 | Short Radius Fittings |
| MSS SP-43 | Wrought Stainless Steel Fittings (Low Pressure) |
| MSS SP-75 | High-Test Wrought Fittings (High Strength Applications) |
SS 904L Pipe Fittings Price List
| Product Type | Price Range (INR/kg) |
|---|---|
| 90° Elbow (SCH 40S) | ₹600 – ₹900 |
| 45° Elbow (SCH 40S) | ₹550 – ₹850 |
| Equal Tee (SCH 40S) | ₹650 – ₹950 |
| Reducer (Concentric / Eccentric) | ₹500 – ₹750 |
| Pipe Cap | ₹450 – ₹700 |
| Cross Fittings | ₹700 – ₹1,000 |
Note: Prices are indicative and may vary based on size, schedule, quantity, and raw material market fluctuations. For international buyers, pricing is available in USD/AED on request. Payment Terms: TT, LC, Cheque.
Applications of ASTM A403 WP904L Pipe Elbows
SS 904L pipe fittings are specifically designed for highly corrosive and chemically aggressive environments. Their superior resistance makes them suitable for the following critical applications:
- Sulphuric Acid Plants
SS 904L was originally developed for handling sulphuric acid. Its copper content (1–2%) significantly improves resistance in acid concentrations where standard 316L fails. - Offshore & Seawater Systems
Widely used in seawater cooling systems, heat exchangers, and firewater pipelines due to excellent resistance to chloride-induced corrosion. - Chemical Processing Industry
Ideal for handling phosphoric acid, nitric acid, and mixed chemical streams in reactors, storage tanks, and piping systems. - Oil & Gas Industry
Used in offshore platforms, refineries, and petrochemical plants where corrosion resistance and durability are critical. - Nuclear & Waste Processing Plants
Suitable for handling aggressive media in nuclear fuel reprocessing and waste treatment systems.
Pollution Control Equipment
Used in scrubbers and flue gas desulfurization (FGD) systems exposed to acidic gases.
Related Products
- SS 904L Pipes
- Duplex Steel Pipe Fittings
- Hastelloy Pipe Fittings
- Inconel Pipe Fittings
- SS 316L Pipe Fittings
Frequently Asked Questions — SS 904L Pipe Fittings
SS 904L pipe fittings are manufactured from Grade 904L stainless steel (UNS N08904 / DIN 1.4539), a low-carbon, high-alloy austenitic grade with enhanced copper content. They offer superior resistance to sulphuric acid, phosphoric acid, and chloride-containing environments compared to 316L, making them ideal for chemical processing and offshore applications.
SS 904L pipe fittings typically comply with ASTM A403 / ASME SA403 for wrought stainless steel fittings, ASME B16.9 for factory-made buttweld fittings, ASME B16.28 for short-radius elbows, MSS SP-43 for low-pressure corrosion-resistant fittings, and MSS SP-75 for high-strength wrought fittings. Material certification is generally supplied as EN 10204 3.1 MTC.
SS 904L contains 24–26% nickel, 4–5% molybdenum, and 1–2% copper, which gives it much better resistance to sulphuric and phosphoric acids, chloride pitting, and stress corrosion cracking compared to SS 316L. It is preferred when 316L is insufficient for aggressive chemical environments.
Available types include 90° and 45° elbows (LR and SR), equal and reducing tees, unequal tees, concentric and eccentric reducers, pipe caps, crosses, nipples, stub ends, and 180° return bends — commonly manufactured as per ASME B16.9 in SCH 10S to SCH 160.
Metinox Overseas supplies ASTM A403 WP904L pipe fittings in seamless and welded forms from ½" to 48", complete with EN 10204 3.1 MTC certification and export support for global markets including UAE, Saudi Arabia, USA, and UK.
Enquire Now
Get pricing within 24 hours!
