Stainless Steel 316Ti Flanges Manufacturer in India

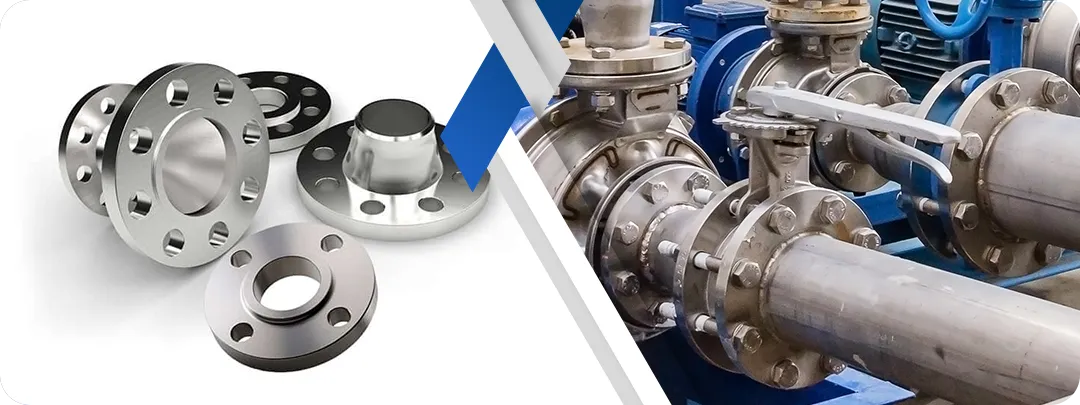

SS 316ti stainless steel is a titanium-stabilized austenitic stainless steel grade that has been designed to increase its performance in a high temperature and corrosion environment. Titanium increases intergranular corrosivity resistance, eliminates carbide formation at high temperatures, and molybdenum increases pitting, crevice corrosivity, and chemical attack resistance. SS 316Ti Flanges are also commonplace in piping systems that require high thermal stability, corrosion resistance, mechanical strength and long life. The flanges are effective in high-temperature/high-pressure and chemically aggressive environments, and are provided with substantial structural integrity and leak free connection with high consistency in applications such as chemical processing, petrochemical plants, refineries, power generation, offshore installations pharmaceutical plants and other taxing industrial applications.
Table of Contents
- What Are SS 316Ti Flanges?
- Specification of SS 316Ti Flanges
- Chemical Composition of Grade F316Ti Stainless Steel Flanges
- Mechanical Properties of ASTM A182 SS 316Ti Flanges
- Equivalent Grades of SS 316Ti Flanges
- Size Chart of Stainless Steel 316Ti Flanges
- ASTM A182 F316Ti Stainless Steel Flanges Weight Chart
- Pressure Rating Chart of SS 316Ti Flanges
- Types Of Grade 316Ti Stainless Steel Flanges
- Application and Industrial Usage of SS 316Ti Flanges
- Frequently Asked Questions (FAQ)
What Are SS 316Ti Flanges?
The SS 316Ti flanges can be manufactured in compliance with the standards of ASTM A182 F316Ti and are created out of forged and rolled stainless steel to be used as high-performance piping systems. Titanium is a stabilizing element in this grade with molybdenum which offers more resistance against corrosion, oxidation and chemical assault in harsh industrial settings. Titanium stabilization helps to avoid the formation of carbide during service and welding at high temperatures, and therefore SS 316Ti flanges are very suitable in long-term high temperature services. These flanges are made specifically for systems that are exposed to high temperature, pressure, and harsh industrial media. Chemical plants, refineries, petrochemical and heat exchangers, power plants, exhaust systems, offshore platforms, and other segments that require high thermal stability, corrosion resistance, and long-time durability are typical applications of SS 316Ti flanges.
Specification of SS 316Ti Flanges
| Feature | Details |
| Specification | ASTM A182 / ASME SA182 |
| Dimension Standard | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2? (15 NB) to 48? (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| DIN Flanges | DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673 |
| JIS Flanges | JIS B2220 5K, 10K, 16K, 20K |
| BS Flanges | BS4504 (PN 6 to PN 250), BS 10, BS Table D, E, F, H |
Chemical Composition of Grade F316Ti Stainless Steel Flanges
The SS 316Ti is made with the composition of different metals, and the information about these metals' composition is given below.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.395 min |
Mechanical Properties of ASTM A182 SS 316Ti Flanges
The mechanical properties of SS 316Ti flanges are given in the table below.
| Property | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Value | 8.0 g/cm- | 1399 -C (2550 -F) | 515 MPa (75,000 Psi) | 205 MPa (30,000 Psi) | 35 % |
Equivalent Grades of SS 316Ti Flanges
The stainless steel 316Ti Flanges are manufactured with different grades in different countries. Some of the common grades are given below.
| Standard | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
| SS 316Ti | S31635 | 1.4571 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 | SUS 316Ti | 904S13 | - |
Size Chart of Stainless Steel 316Ti Flanges
The stainless steel size chart gives you exact information according to your requirements. The table shows the different sizes of Stainless Steel 316Ti Flanges.
| Nom. Pipe Size | O | T | R | X | No. / Dia. of Holes | Bolt Circle Dia. | L2 | H | B2 | 3 | L | Br | L3 | 4 | B3 |
| 1/2 | 3.50 | 0.44 | 1.38 | 1.19 | 4 - 0.62 | 2.38 | 1.88 | 0.84 | 0.62 | 0.62 | 0.88 | 0.12 | 0.62 | 0.90 | 0.38 |
| 3/4 | 3.88 | 0.50 | 1.69 | 1.50 | 4 - 0.62 | 2.75 | 2.06 | 1.05 | 0.82 | 0.62 | 1.09 | 0.12 | 0.62 | 1.11 | 0.44 |
| 1 | 4.25 | 0.56 | 2.00 | 1.94 | 4 - 0.62 | 3.12 | 2.19 | 1.32 | 1.05 | 0.69 | 1.36 | 0.12 | 0.69 | 1.38 | 0.50 |
| 1-1/4 | 4.62 | 0.62 | 2.50 | 2.31 | 4 - 0.62 | 3.50 | 2.25 | 1.66 | 1.38 | 0.81 | 1.70 | 0.19 | 0.81 | 1.72 | 0.56 |
| 1-1/2 | 5.00 | 0.68 | 2.88 | 2.56 | 4 - 0.62 | 3.88 | 2.44 | 1.90 | 1.61 | 0.88 | 1.95 | 0.25 | 0.88 | 1.97 | 0.62 |
| 2 | 6.00 | 0.75 | 3.62 | 3.06 | 4 - 0.75 | 4.75 | 2.50 | 2.38 | 2.07 | 1.00 | 2.44 | 0.31 | 1.00 | 2.46 | 0.69 |
| 2-1/2 | 7.00 | 0.88 | 4.12 | 3.56 | 4 - 0.75 | 5.50 | 2.75 | 2.88 | 2.47 | 1.12 | 2.94 | 0.31 | 1.12 | 2.97 | 0.75 |
| 3 | 7.50 | 0.94 | 5.00 | 4.25 | 4 - 0.75 | 6.00 | 2.75 | 3.50 | 3.07 | 1.19 | 3.57 | 0.38 | 1.19 | 3.60 | 0.81 |
| 3-1/2 | 8.50 | 0.94 | 5.50 | 4.81 | 8 - 0.75 | 7.00 | 2.81 | 4.00 | 3.55 | 1.25 | 4.07 | 0.38 | 1.25 | 4.10 | 0.88 |
| 4 | 9.00 | 0.94 | 6.19 | 5.31 | 8 - 0.75 | 7.50 | 3.00 | 4.50 | 4.03 | 1.31 | 4.57 | 0.44 | 1.31 | 4.60 | 0.94 |
| 5 | 10.00 | 0.94 | 7.31 | 6.44 | 8 - 0.88 | 8.50 | 3.50 | 5.56 | 5.05 | 1.44 | 5.66 | 0.44 | 1.44 | 5.69 | 0.94 |
| 6 | 11.00 | 1.00 | 8.50 | 7.56 | 8 - 0.88 | 9.50 | 3.50 | 6.63 | 6.07 | 1.56 | 6.72 | 0.50 | 1.56 | 6.75 | 1.06 |
| 8 | 13.50 | 1.12 | 10.62 | 9.69 | 8 - 0.88 | 11.75 | 4.00 | 8.63 | 7.98 | 1.75 | 8.72 | 0.50 | 1.75 | 8.75 | 1.25 |
| 10 | 16.00 | 1.19 | 12.75 | 12.00 | 12 - 1.00 | 14.25 | 4.00 | 10.75 | 10.02 | 1.94 | 10.88 | 0.50 | 1.94 | 10.92 | 1.31 |
| 12 | 19.00 | 1.25 | 15.00 | 14.38 | 12 - 1.00 | 17.00 | 4.50 | 12.75 | 12.00 | 2.19 | 12.88 | 0.50 | 2.19 | 12.92 | 1.56 |
| 14 | 21.00 | 1.38 | 16.25 | 15.75 | 12 - 1.12 | 18.75 | 5.00 | 14.00 | 13.25 | 2.25 | 14.14 | 0.50 | 3.12 | 14.18 | 1.63 |
| 16 | 23.50 | 1.44 | 18.50 | 18.00 | 16 - 1.12 | 21.25 | 5.00 | 16.00 | 15.25 | 2.50 | 16.16 | 0.50 | 3.44 | 16.19 | 1.75 |
| 18 | 25.00 | 1.56 | 21.00 | 19.88 | 16 - 1.25 | 22.75 | 5.50 | 18.00 | 17.25 | 2.69 | 18.18 | 0.50 | 3.81 | 18.20 | 1.94 |
| 20 | 27.50 | 1.69 | 23.00 | 22.00 | 20 - 1.25 | 25.00 | 5.69 | 20.00 | 19.25 | 2.88 | 20.20 | 0.50 | 4.06 | 20.25 | 2.13 |
| 22 | 29.50 | 1.81 | 25.25 | 24.25 | 20 - 1.38 | 27.25 | 5.88 | 22.00 | 21.25 | 3.13 | 22.22 | 0.50 | 4.25 | 22.25 | 2.38 |
| 24 | 32.00 | 1.88 | 27.25 | 26.12 | 20 - 1.38 | 29.50 | 6.00 | 24.00 | 23.25 | 3.25 | 24.25 | 0.50 | 4.38 | 24.25 | 2.50 |
ASTM A182 F316Ti Stainless Steel Flanges Weight Chart
The SS 316Ti flange weight chart is given below. For more precise information, contact us.
| Standard Of Flanges | Class Of Flanges | Diameter Of Flanges | Diameter Of Bolt Circle | Bolts Number | Size Of Bolt | Bolt Hole Diameter |
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
Pressure Rating Chart of SS 316Ti Flanges
The pressure rating chart helps you to choose the right stainless steel 316Ti flanges for your application.
| Temp. (-C) | Class 75 | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 |
| -29 to 38 | 10.0 | 20.0 | 51.7 | 68.9 | 103.4 | 155.1 |
| 50 | 9.8 | 19.5 | 51.7 | 68.9 | 103.4 | 155.1 |
| 100 | 8.8 | 17.7 | 50.7 | 67.5 | 101.3 | 152.0 |
| 150 | 7.9 | 15.8 | 45.9 | 61.2 | 91.9 | 137.8 |
| 200 | 6.9 | 13.8 | 42.7 | 56.9 | 85.3 | 128.0 |
| 250 | 6.0 | 12.1 | 40.5 | 53.9 | 80.9 | 121.4 |
| 300 | 5.1 | 10.2 | 38.9 | 51.8 | 77.7 | 116.6 |
Types Of Grade 316Ti Stainless Steel Flanges
ASTM A182 SS 316Ti Blind Flanges
ASTM A182 SS 316Ti Lap Joint Flanges
ASTM A182 SS 316Ti Long Weld Neck Flanges
ASTM A182 SS 316Ti Plate Flanges
ASTM A182 SS 316Ti Reducing Flanges
ASTM A182 SS 316Ti Ring Type Joint Flanges
ASTM A182 SS 316Ti Slip On Flanges
ASTM A182 SS 316Ti Socket Weld Flanges
ASTM A182 SS 316Ti Spectacle Blind Flanges
ASTM A182 SS 316Ti Weld Neck Flanges
Application and Industrial Usage of SS 316Ti Flanges
SS 316Ti flanges are a critical component of industrial piping systems where high-temperature stability, corrosion resistance, and long-term reliability are required. Their applications are widespread across chemical processing plants, petrochemical facilities, refineries, power generation units, and heat exchanger systems, where exposure to heat, pressure, and aggressive chemicals is common. They are also extensively used in offshore platforms, exhaust systems, pharmaceutical plants, marine installations, and industrial processing lines that demand resistance to corrosion and thermal stress. In addition, SS 316Ti flanges play an important role in water treatment systems, heavy engineering structures, and high-temperature industrial piping networks, making them essential infrastructure components for environments where durability, performance, and operational safety are critical.
Looking for High-Quality SS 316Ti Flanges?
Choose Metinox Overseas - Your Reliable SS 316Ti Flanges Manufacturer & Exporter.
Let us support your projects with quality, precision, and performance.
Frequently Asked Questions (FAQ)
SS 316Ti flanges are titanium-stabilized austenitic stainless steel pipe connectors designed for high-temperature and corrosive environments.
The 316Ti contains titanium, which prevents carbide precipitation at high temperatures, giving better corrosion resistance and thermal stability compared to 316 and 316L flanges.
Titanium is added to stabilize the steel, prevent carbide formation during welding, and improve corrosion resistance at elevated temperatures.
They are widely used in chemical processing, petrochemical, offshore platforms, refineries, power plants, pharmaceutical, marine, and high-temperature industrial piping systems.
You can buy high-quality SS 316Ti flanges from Metinox Overseas, a trusted manufacturer and supplier offering ASTM-certified flanges with reliable performance and timely delivery across India.
