Stainless Steel 310 Flanges Manufacturer in India
SS 310 stainless steel is a premium grade of austenitic stainless steel alloy, with a composition of high chrome and high nickel that is specifically engineered to provide excellent performance in an environment with extremely high temperatures and oxidation. The chromium content is great with regard to oxidation and corrosion resistance, whereas the nickel content makes it strong and resistant to high temperatures. SS 310 Flanges have become very popular in piping systems that require high thermal resistance, mechanical strength, corrosion resistance, and a long life cycle. These flanges are used in high-pressure, high-temperature, and chemically hostile environments and provide good structural integrity and leak-free connections in chemical processing, petrochemical plants, refineries, power generation units, furnaces, heat treatment plants, exhaust environments, offshore, and other extreme environments of the industrial environment.
Table of Contents
- What Are SS 310 Flanges?
- Specification Table of SS 310 Flanges
- Chemical Composition of SS 310 Flanges
- SS DIN 1.4841 Forged Flanges Mechanical Properties
- Equivalent Grades of Stainless Steel 310 Flanges
- A182 F310 Threaded Flange Sizes And Schedules Chart
- Weight Chart of SS 310 WERKSTOFF NR. 1.4841 Flanges
- Types Of SS Grade 310 Industrial Flanges
- Application Uses of SS 310 Flanges
- Frequently Asked Questions (FAQ)
What Are SS 310 Flanges?
The SS 310 flanges are made in line with ASTM A182 F310 and are made out of forged and rolled stainless steel, and are used in high-performance and high-temperature piping systems. It is a grade that has a high composition of chromium and nickel that renders it very resistant to oxidation, scaling, and corrosion in a continuous service operation at high temperature. The SS 310 flanges are designed in a special way to suit systems that are subjected to excessive pressure, heat, and difficult industrial media. They find application in chemical facilities, refineries, petrochemical plants, furnaces, heat exchangers, power facilities, thermal processing, exhaust, offshore facilities, and other high-performance applications that require thermal stability, corrosion resistance, and a long service life.
Specification Table of SS 310 Flanges
| Feature | Specifications |
| Material Standards | ASTM A182 / ASME SA182 |
| Pressure Ratings | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Metric Pressure Ratings | PN6, PN10, PN16, PN25, PN40, PN64, etc. |
| Size Chart | 1/2? (15 NB) to 48? (1200 NB) |
| Dimensional Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48 |
| International Standards | BS 10, BS 4504, DIN, EN-1092 |
| Standard Bodies | ANSI, ASME, BS, DIN, EN |
Chemical Composition of SS 310 Flanges
The detailed composition of this material is given in the following table.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015% max | 2.0% max | 0.15% max | 0.020% max | 0.015% max | 24.00 - 26.00% | 0.10% max | 19.00 - 21.00% | 54.7% min |
SS DIN 1.4841 Forged Flanges Mechanical Properties
The mechanical properties decide the shelflife of the material. The table below gives the information about the chemical properties of SS 310 Flanges.
| Property | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Value | 7.9 g/cm- | 1402 -C (2555 -F) | 515 MPa (75,000 Psi) | 205 MPa (30,000 Psi) | 40 % |
Equivalent Grades of Stainless Steel 310 Flanges
The SS 310 Flanges are manufactured in different standards, and some of the popular ones are listed below.
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20 | S2 | X15CrNi25-20 |
A182 F310 Threaded Flange Sizes And Schedules Chart
This material comes in different schedules and sizes, and detailed information is provided in the following table.
| NPS | O.D. (O) | Thk (Q) | R.F. (R) | Hub Base (X) | Lth Thru Hub (Y) | Bore (B) | Hub Bevel (W) | Fillet (r) | Socket Depth (Z) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 / 5/8 / 5/8 | 0.88 / 0.90 | 0.84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 / 5/8 / 5/8 | 1.09 / 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 / 11/16 / 11/16 | 1.36 / 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 / 13/16 / 13/16 | 1.70 / 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 / 7/8 / 7/8 | 1.95 / 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 / 1 / 1 | 2.44 / 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 / 1-1/8 / 1-1/8 | 2.94 / 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 / 1-3/16 / 1-3/16 | 3.57 / 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 / 1-1/4 / 1-1/4 | 4.07 / 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 / 1-5/16 / 1-5/16 | 4.57 / 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7-5/16 | 6-7/16 | 3-1/2 / 1-7/16 / 1-7/16 | 5.66 / 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 / 1-9/16 / 1-9/16 | 6.72 / 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 / 1-3/4 / 1-3/4 | 8.72 / 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 / 1-15/16 / 1-15/16 | 10.88 / 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 / 2-3/16 / 2-3/16 | 12.88 / 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 / 2-1/4 / 3-1/8 | 14.14 / 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 / 2-1/2 / 3-7/16 | 16.16 / 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 / 2-11/16 / 3-13/16 | 18.18 / 18.20 | 18.00 | 1/2 | 1-15/16 |
| 20 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 / 2-8/7 / 4-1/16 | 20.20 / 20.25 | 20.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 / 3-1/4 / 4-3/8 | 24.25 / 24.25 | 24.00 | 1/2 | 2-1/2 |
Weight Chart of SS 310 WERKSTOFF NR. 1.4841 Flanges
The weight of the material helps you to plan your costs and delivery. The detailed information on the different weights of this material is given below.
| Pipe Size (dn) | O.D. (O) | Thk (C) | Hub (X) | Raised Face (G) | Hub Lth (Y/T) | Bolt Circle (BC) | Hole (BH) | No. Bolts (N) | Bolt Diam (BD) | Weight (KG) | Weight (LB) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" (15) | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" (20) | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" (25) | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" (32) | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" (40) | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" (50) | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" (65) | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" (80) | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9.0 |
| 3-1/2" (90) | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" (100) | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13.0 |
| 5" (125) | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7.0 | 15.4 |
| 6" (150) | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" (200) | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13.0 | 28.6 |
| 10" (250) | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18.0 | 39.5 |
| 12" (300) | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29.0 | 64.0 |
| 14" (350) | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39.0 | 86.0 |
| 16" (400) | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47.0 | 103.0 |
| 18" (450) | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 577.90 | 31.80 | 16 | 1-1/8" | 57.0 | 126.0 |
| 20" (500) | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 635.00 | 31.80 | 20 | 1-1/8" | 76.0 | 167.0 |
| 24" (600) | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 749.30 | 35.10 | 20 | 1-1/4" | 97.0 | 214.0 |
Types Of SS Grade 310 Industrial Flanges
Stainless Steel 310 Flanges (Size: 10? to 20?)

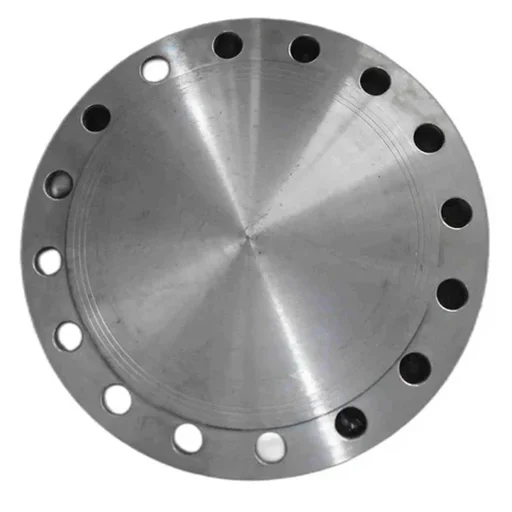

Stainless Steel 310 Flanges (Size: 15-450 MM NB)

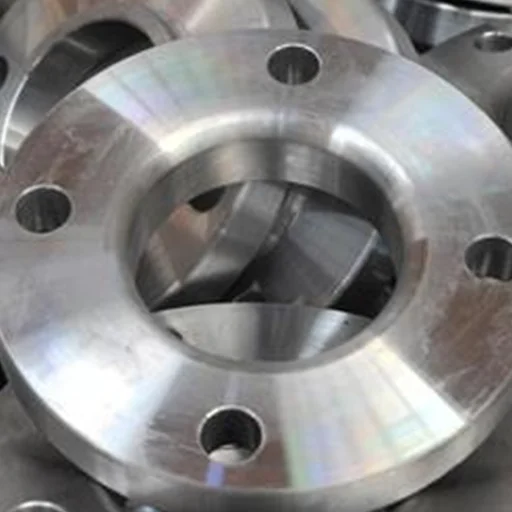

Stainless Steel 310 Flanges (Size: Up to 30?)

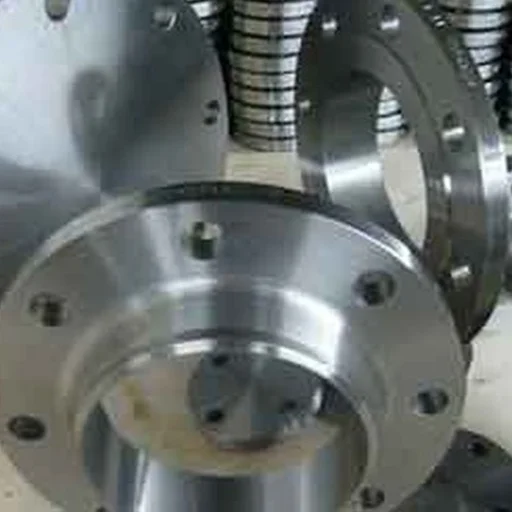

Stainless Steel 310 / 310S Flanges

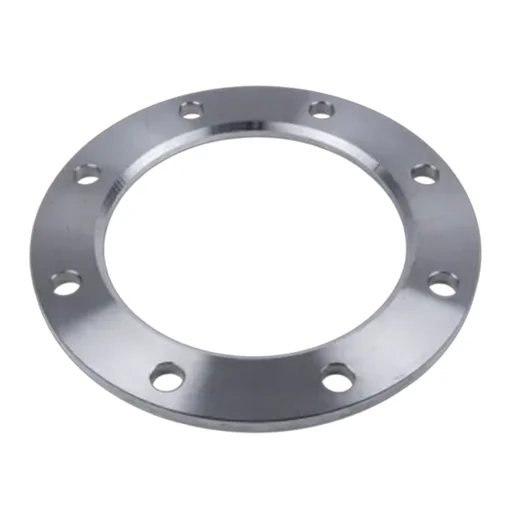

Round Stainless Steel 310 Flanges (Size: 1? to 5?)

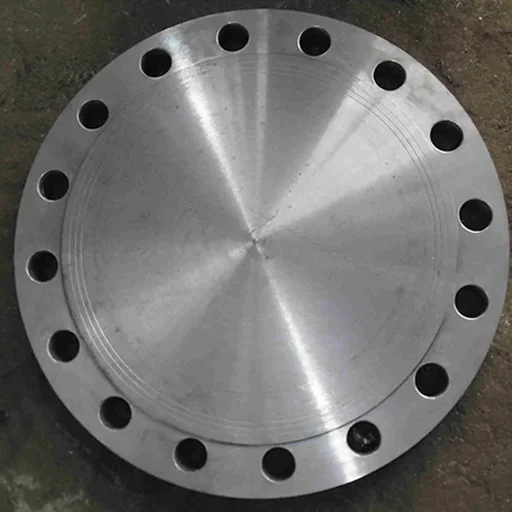

ASTM A182 Stainless Steel 310 Flange (Oil Industry)
ANSI B16.5 Stainless Steel 310 Blind Flange

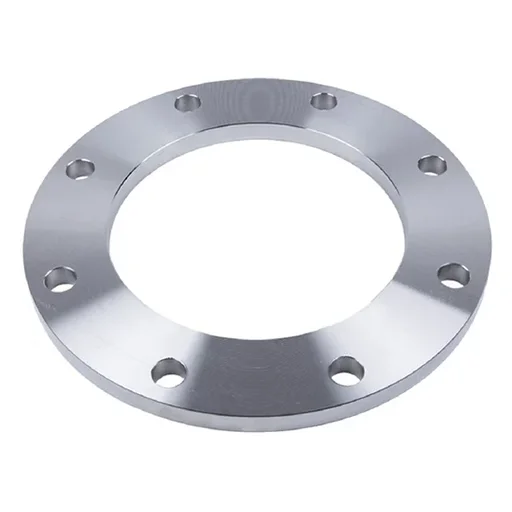

2 3/8? Stainless Steel 347 Pipe Flange
Application Uses of SS 310 Flanges
The stainless steel 310 Flanges are commonly used in many industrial applications, and some of the common industries are given below.
Heat Treatment Plants
They are used in radiant tubes, burners, kilns, and furnace piping, where constant exposure to the high temperatures necessitates high oxidation and high heat resistance.
Petrochemical & Refineries
Used in heat exchangers, reformers, flare lines, and high temperature process pipelines where thermal stability and long-time performance is of paramount importance.
Power Plants
It is fitted in boilers, superheaters, steam lines, and exhaust systems where there is a high temperature and pressure without getting weak.
Industry Chemical Processing
Applied to hot chemical pipeline, the reactors and thermal process systems that are operated in corrosive and high temperature conditions.
Oil & Gas Industry
The majority of the companies apply this in the flare systems, heat transfer lines and the high temperature pipeline networks that are exposed to heat and adverse working conditions.
Aerospace Industry
Used in exhaust systems in high temperatures and thermal components where the stability of materials under heat is vital.
Industrial Exhaust Systems
It is applied in chimneys, ducting and ventilation systems that are under constant stress insofar as there are hot gases and thermal load.
Thermal Processing Units
It is normally installed in incinerators, reactors and thermal plants where durability to heat and oxidation is needed.
Looking for High-Quality SS 310 Flanges?
Let us support your projects with quality, precision, and performance.
Frequently Asked Questions (FAQ)
The SS 310 is a high-temperature stainless steel used to make flanges that can handle extreme heat and oxidizing environments.
SS 310 is made for high-temperature service, while SS 304 is better for general corrosion resistance and normal-temperature applications.
SS 310 flanges are highly resistant to rust and corrosion, but very harsh conditions can still cause surface oxidation over time.
SS 310 flanges can be welded using standard stainless steel welding methods with proper filler material and controlled heat input.
SS 316 flanges are stronger in corrosion resistance, while SS 310 flanges are stronger in high-temperature performance.
