Copper Nickel Fittings are very important and the most popular material due to the good properties such as high durability and non-corrosive nature, thus making them highly durable even under tough environmental conditions. Copper-Nickel alloy exists in different types, such as C70600 and C71500. The uses of copper-nickel fittings range from marine and offshore industries to desalination plants. It comes in different types, such as elbows, tees, reducers, and stub ends, which are fabricated using standards such as ASTM B366. The fittings have a long life span in tough situations since they are resistant to corrosion, biofouling, and wear. These types of pipe fittings make up cupro nickel fittings for marine offshore applications. Metinox Overseas is an established CuNi pipe fittings manufacturer in India. We manufacture high-quality pipe fittings made of 90/10 and 70/30 copper-nickel.
Request a Copper Nickel 90/10 Pipe Fittings QuoteTable of Contents
- Specifications of Copper Nickel 90/10 Pipe Fittings
- Chemical Composition of Copper Nickel 90/10 Pipe Fittings
- Mechanical Properties of Copper Nickel 90/10 Pipe Fittings
- Types of 90/10 Copper Nickel Pipe Fittings
- Equivalent Grades of 90/10 Copper Nickel Pipe Fittings
- Dimension Chart of Copper Nickel 90/10 Pipe Fittings
- Applications and Industrial Uses of Copper Nickel 90/10 Pipe Fittings
- Frequently Asked Questions
Specifications of Copper Nickel 90/10 Pipe Fittings
| Specification Parameter | Details / Reference Standards |
|---|---|
| Material Specifications | ASTM B61, B62, B151, B152, B466, B467 / ASME SB61, SB62, SB151, SB152, SB466, SB467 |
| Dimension Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| ASME B16.9 Requirement | Standard for Factory-Made Wrought Buttwelding Fittings |
| ASME B16.25 Requirement | Buttwelding Ends |
| ASME B16.28 Requirement | Standard for Butt-Welded Short Radius Elbows & Returns Bends |
| MSS SP-43 Requirement | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Fittings Type | Seamless / Welded / Fabricated |
| Overall Size Range | 1/2" NB to 24" NB (DN6 ~ DN100) in Sch 10s, 40s, 80s, 160s, XXS |
| Seamless Butt Weld Size | 1/2" - 10" |
| Welded Butt Weld Size | 1/2" - 48" |
| Available Thicknesses | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Radius |
Chemical Composition of Copper Nickel 90/10 Pipe Fittings
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Cu-Ni 90/10 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 - 16.50 | 4.00 - 7.00 | 15.00 - 17.00 | 0.04 max |
Mechanical Properties of Copper Nickel 90/10 Pipe Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| 90/10 Copper Nickel | 8.89 g/cm3 | 1370°C (2500°F) | Psi - 1,15,000, MPa - 790 | Psi - 52,000, MPa - 355 | 40% |
Types of 90/10 Copper Nickel Pipe Fittings

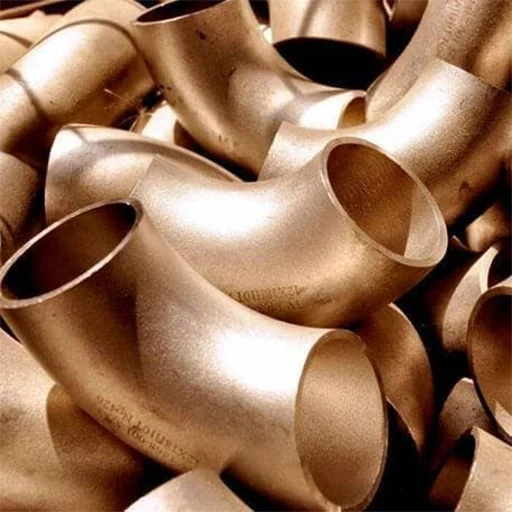

Cu 90_10 Elbow
Cupro Nickel 90_10 Buttweld Cap
Cupro Nickel 90_10 Concentric Reducer

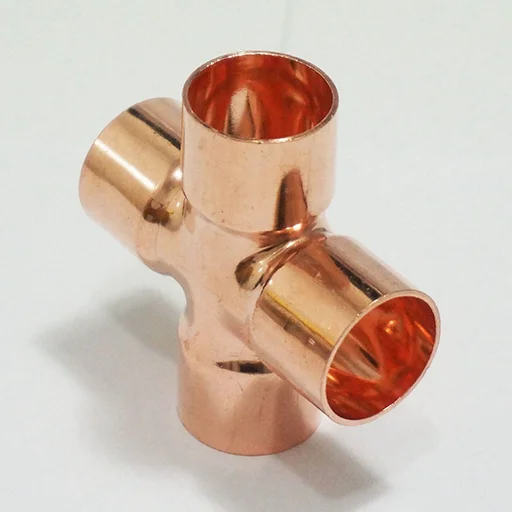

Cupro Nickel 90_10 Cross

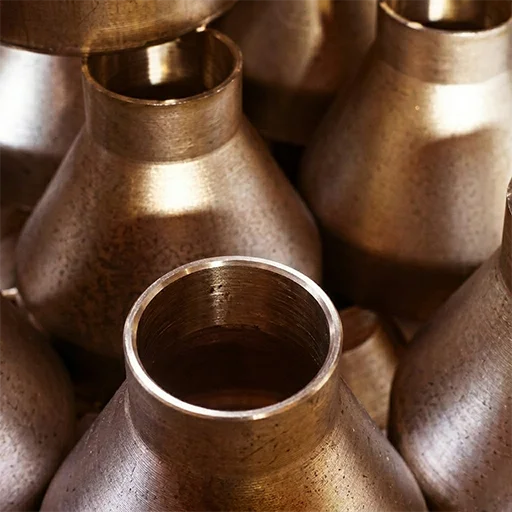

Cupro Nickel 90_10 Eccentric Reducer
Cupro Nickel 90_10 Long Stub End

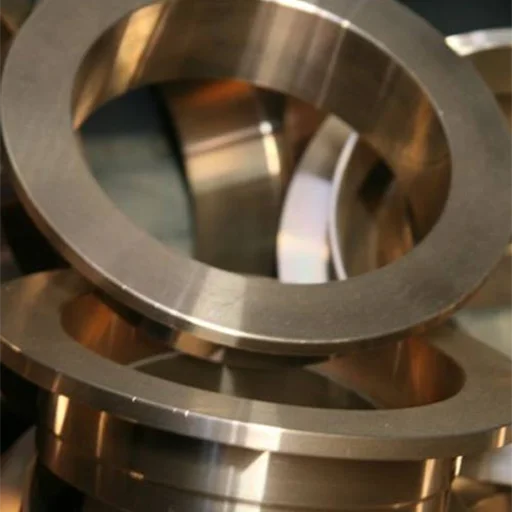

Cupro Nickel 90_10 Short Stub End

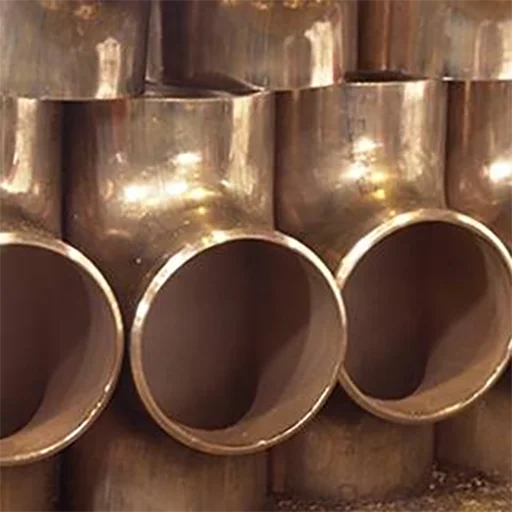

Cupro Nickel 90_10 Tee
Equivalent Grades of 90/10 Copper Nickel Pipe Fittings
| Standard | Werkstoff Nr. | UNS |
|---|---|---|
| Copper Nickel 90 / 10 | 2.0872 | C70600 |
Dimension Chart of Copper Nickel 90/10 Pipe Fittings
| Nominal Pipe Size (NPS) | All Fittings: O.D. at Bevel | All Fittings: I.D. at End | All Fittings: Wall Thickness | Elbows / Tees: Center-to-End (A, B, C, M) | 180° Returns: Center-to-Center (O) | 180° Returns: Back-to-Face (K) | 180° Returns: Alignment (U) | Reducers: Overall Length (H) | Caps: Overall Length (E) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 to 2-1/2 | +0.06 / -0.03 | ±0.03 | ≥ 87.5% of nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.12 |
| 3 to 3-1/2 | ±0.06 | ±0.06 | ≥ 87.5% of nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.12 |
| 4 | ±0.06 | ±0.06 | ≥ 87.5% of nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.12 |
| 5 to 8 | +0.09 / -0.06 | ±0.06 | ≥ 87.5% of nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.25 |
| 10 to 18 | +0.16 / -0.12 | ±0.12 | ≥ 87.5% of nominal | ±0.09 | ±0.38 | ±0.25 | ±0.06 | ±0.09 | ±0.25 |
| 20 to 24 | +0.25 / -0.19 | ±0.19 | ≥ 87.5% of nominal | ±0.09 | ±0.38 | ±0.25 | ±0.06 | ±0.09 | ±0.25 |
| 26 to 30 | +0.25 / -0.19 | ±0.19 | ≥ 87.5% of nominal | ±0.12 | - | - | - | ±0.19 | ±0.38 |
| 32 to 48 | +0.25 / -0.19 | ±0.19 | ≥ 87.5% of nominal | ±0.19 | - | - | - | ±0.19 | ±0.38 |
Applications and Industrial Uses of Copper Nickel 90/10 Pipe Fittings
- Marine & Shipbuilding
- Offshore Oil & Gas
- Desalination
- Power Generation
- Petrochemical
- Chemical Processing
- HVAC (Heating, Ventilation & Air Conditioning)
(HVAC Conditioning) - Fire Protection
- Pulp & Paper
- Water Treatment
Frequently Asked Questions
Copper Nickel 90/10 pipe fittings are piping components made from a copper-nickel alloy used to connect and direct flow in systems requiring high corrosion resistance.
UNS C70600 is a copper-nickel alloy grade known as 90/10 CuNi, widely used for its strength and resistance to seawater corrosion.
It contains approximately 90% copper and 10% nickel, with small amounts of iron and manganese for improved strength.
They are used in marine, offshore, desalination, and power plant piping systems.
Because it offers excellent resistance to seawater corrosion, biofouling, and erosion.
Yes, it has excellent corrosion resistance, especially in seawater and saline environments.
