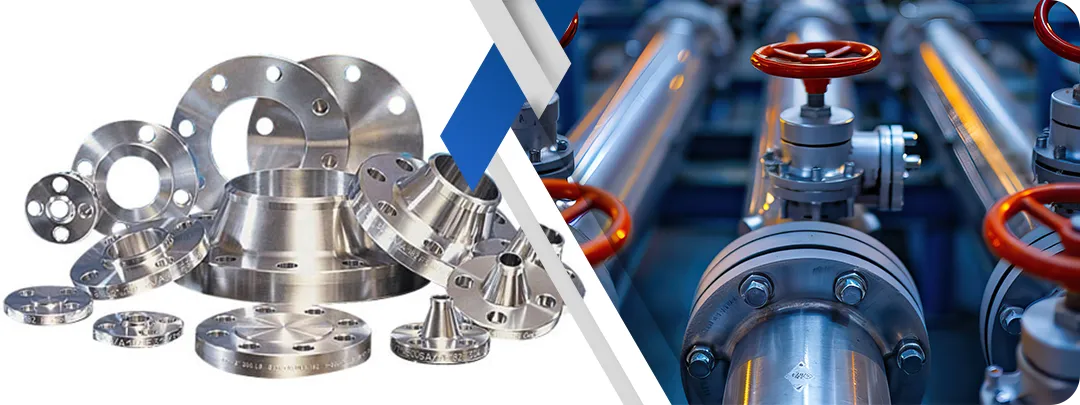

Inconel 601 Flanges Manufacturer in India
Metinox Overseas is a trusted producer of Inconel 601 Flanges in India that manufactures high-performance, durable flanges that can be used in industrial applications. Our experience and ISO 9001:2008 certification also help us to make sure that all of the Inconel 601 flanges are of high quality. The flanges are also engineered to work remarkably in high-temperature applications, are able to resist oxidation and corrosion, and hence can be used in a harsh industrial environment.
All the Inconel 601 flanges are manufactured according to international standards such as ANSI B16.5, ASME B16.47, MSS-SP44, DIN, and BS. We provide all the other types of flanges that include slip-on, weld neck, blind flanges, etc., which can easily fit with different pipling system and applications.
The quality checks on all Inconel 601 flanges, such as verification of materials, mechanical strength and dimension checking, are done to guarantee safety and a good working performance. We have ready stocks in India and abroad, which provide us with quick delivery. Such flanges have many applications in the oil and gas industry, chemical industry, petrochemical industry, power generation industry, marine sector, aerospace industry and the industrial industry where reliability and performance that lasts over time is important.
Table of Contents
- Specifications of Inconel 601 Flanges
- Chemical Composition of Inconel 601 Flanges
- Mechanical Properties of Inconel 601 Flanges
- Inconel 601 Flanges Equivalent Grades
- Weight Chart of Inconel 601 Flanges
- Different Types Of Inconel 601 Flanges
- Application and Industrial Uses of Inconel 601 Flanges
- Frequently Asked Questions (FAQ)
Specifications of Inconel 601 Flanges
| Category | Details |
| Material Standard | ASTM B564 / ASME SB564 |
| Dimensional Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Compatible Standards | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size Range | 1/2" (15 NB) to 48" (1200 NB) |
| Pressure Ratings | Class: 150#, 300#, 600#, 900#, 1500#, 2500# PN: PN6, PN10, PN16, PN25, PN40, PN64 |
| Face Types | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Chemical Composition of Inconel 601 Flanges
The detailed chemical composition of Inconel 601 Flanges are given below.
| Grade | Ni | Cr | Al | Fe | Mn | Cu | Si | C | S |
| 601 | 58.0 - 63.0 | 21.0 - 25.0 | 1.0 - 1.7 | Balance | 1.0 max | 1.0 max | 0.5 max | 0.1 max | 0.015 max |
Mechanical Properties of Inconel 601 Flanges
The mechanical properties of Inconel 601 Flanges include its tensile strength and other properties that are given below.
| Grade | Density | Melting Point | Yield Strength (0.2% Offset) | Tensile Strength | Elongation |
| Inconel 601 | 8.1 g/cm- | 1411 -C (2571 -F) | 45,000 Psi / 310 MPa | 80,000 Psi / 550 MPa | 30% |
Inconel 601 Flanges Equivalent Grades
The Inconel 601 Flanges come in different standard and some of the common international standards are given below.
| Standard | UNS | Werkstoff Nr. | EN | JIS | BS | GOST |
| Inconel 601 | N06601 | 2.4851 | NiCr23Fe | NCF 601 | NA 49 | XH60BT (??868) |
Weight Chart of Inconel 601 Flanges
The weight chart of the Inconel 601 flanges provides detailed information on the different weights of this material.
| Standard | Class | Diameter (mm) | Bolt Circle Dia (mm) | No. of Bolts | Bolt Size | Bolt Hole Dia (mm) |
| AS 4087 | PN14 Flanges | 100 | 73 | 4 | M12 | 14 |
| AS 2129 | Table C | 100 | 73 | 4 | 13 | 14 |
| Table D | 100 | 73 | 4 | 13 | 14 | |
| Table E | 100 | 73 | 4 | 13 | 14 | |
| Table F | 100 | 73 | 4 | 13 | 14 | |
| Table H | 115 | 83 | 4 | 16 | 18 | |
| Table J | 115 | 83 | 4 | 16 | 18 | |
| ANSI B16.5 | ANSI 150 | 98 | 70 | 4 | 13 | 16 |
| ANSI 300 | 117 | 83 | 4 | 16 | 19 | |
| ANSI 600 | 117 | 83 | 4 | 16 | 19 | |
| ANSI 900 | 130 | 89 | 4 | 19 | 22 | |
| ANSI 1500 | 130 | 89 | 4 | 19 | 22 | |
| ISO 7005 (DIN) | PN6 | 90 | 65 | 4 | M10 | 11 |
| PN10 | 105 | 75 | 4 | M12 | 14 | |
| PN16 | 105 | 75 | 4 | M12 | 14 | |
| PN20 | 100 | 70 | 4 | M14 | 16 | |
| PN25 | 105 | 75 | 4 | M12 | 14 | |
| PN40 | 105 | 75 | 4 | M12 | 14 |
Different Types Of Inconel 601 Flanges
Inconel 601 Orifice Flange
Inconel 601 Threaded Flange
Inconel 601 Reducing Flange
Inconel 601 Lap Joint Flange
Inconel 601 Long Weld Neck Flange
Inconel 601 Socket Weld Flange
Inconel 601 Weld Neck Flange
Inconel 601 Blind Flange
Inconel 601 Slip-On Flange
Application and Industrial Uses of Inconel 601 Flanges
The Inconel 601 flanges are very popular in the construction industry, which needs high heat, corrosion, and extreme condition resistance. Their uses are essential in the processing of chemical and petrochemical industries, where they are used to handle corrosive liquids. These flanges are utilized in jet engines, airframes, and other components that should withstand high temperatures in the aerospace industry. They are needed by the oil and gas industry in pipelines, valves, and wellhead equipment, which require strength and durability. They are also employed in the production of energy, such as nuclear reactors and heat exchangers, as well as in marine engineering, where corrosion in the seawater is a critical problem. Furthermore, Inconel 601 flanges are used in pulp and paper processing, food processing equipment, and heat treatment systems, therefore making it a very versatile and reliable product with wide acceptance in a variety of industrial and high-performance systems.
Frequently Asked Questions (FAQ)
Inconel 601 flanges are pipe flanges made from a nickel-chromium alloy designed for high strength, heat resistance, and corrosion resistance.
Yes, they are ideal for high-temperature environments, maintaining strength and stability even under extreme heat.
Yes, they resist corrosion from acids, chemicals, and seawater, making them suitable for harsh industrial conditions.
They are available in various pressure classes, typically ranging from 150 Lbs to 2500 Lbs, for low- to high-pressure systems.
They are used in chemical & petrochemical plants, aerospace, oil & gas, power generation, marine engineering, and other high-performance industrial applications.
