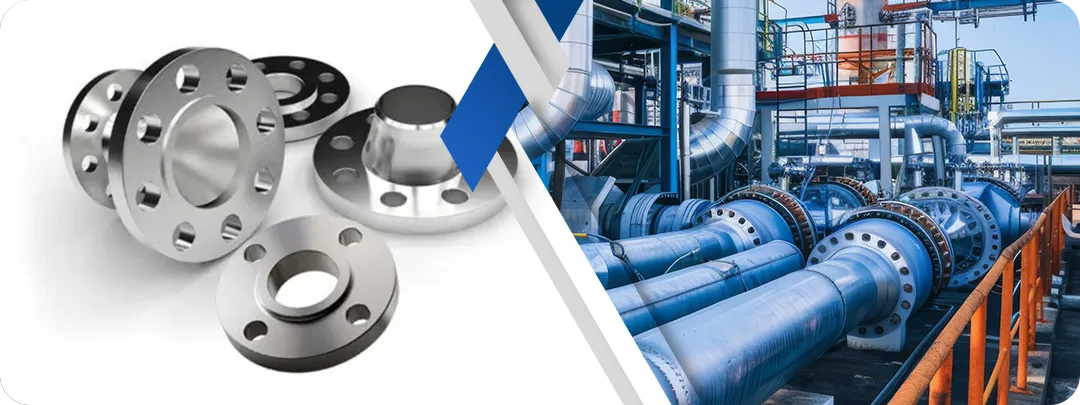

Inconel 600 Flanges Manufacturer in India
Metinox Overseas is a trusted manufacturer of Inconel 600 Flanges in India, which provides powerful and performance flanges in rough industrial situations. We always produce high-quality nickel chromium alloy products, which is supported by ISO 9001:2008 certification, and have years of experience in production. Our every Inconel 600 flages are made to perform well in high-temperature, oxidation, and corrosion.
Inconel 600 flanges are produced at our Mumbai plant to the international standards that include ANSI B16.5, ASME B16.47, MSS-SP44, DIN, and BS. We offer Slip-On, Weld Neck, Blind, Threaded, Socket Weld, and Lap Joint flanges so that people can easily use them in various piping systems and applications.
All flanges are subjected to adequate quality inspection, such as material inspection, strength checking, and dimensional inspection checks to make sure that they are safe and perform. We offer home delivery within India and across the globe because we have ready stocks. Our Inconel 600 flanges are employed in the oil and gas sectors, chemical, petrochemical, power generation, marine, aerospace and industrial sectors where a high level of reliability and life cycle are crucial.
Table of Contents
- Specifications of Inconel 600 Flanges
- Chemical Composition of Alloy 600 Flanges
- Inconel 600 Flanges Mechanical Properties
- Equivalent Grades Of Inconel 600 Flange
- Dimensions Chart of Inconel 600 Flanges
- ANSI B16.5 Alloy 600 Flanges Weight Chart
- Inconel 600 Flanges Pressure Rating
- Types of Inconel 600 Flanges
- Application Uses of Inconel 600 Flanges
- Frequently Asked Questions (FAQ)
Specifications of Inconel 600 Flanges
| Category | Details |
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, DIN, ANSI, ASME, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48 |
| ANSI Pressure Ratings | Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500 |
| DIN Pressure Ratings | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar / PN6, PN10, PN16, PN25, PN40, PN64 |
| JIS Pressure Ratings | 5K, 10 K, 16 K, 20 K, 30 K, 40 K, 63 K |
| UNI/EN Pressure Ratings | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar |
| Most Common Types | Threaded, Screwed, Forged, Plate |
| Shapes and Faces | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Production Techniques | Forged, heat-treated, and Machined |
| Testing Methods | Hydrostatic testing machine, Direct-reading Spectrograph, X-ray detector, Magnetic particle detector, Ultrasonic flaw detector |
| Equipment Used | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, Electric bevelling machine |
Chemical Composition of Alloy 600 Flanges
The data table provided below gives detailed information on Alloy 600 Flanges Chemical composition.
| Grade | Ni | Cr | Fe | Mn | Cu | Si | C | S |
| Inconel 600 | 72.00 min | 14.00 - 17.00 | 6.00 - 10.00 | 1.00 max | 0.50 max | 0.50 max | 0.15 max | 0.015 max |
Inconel 600 Flanges Mechanical Properties
The mechanical properties include many things, such as tensile and yield strength of Inconel 600 flanges, which are given below.
| Material | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Inconel 600 | 8.47 g/cm- | 1413 -C (2580 -F) | 95,000 Psi / 655 MPa | 45,000 Psi / 310 MPa | 40% |
Equivalent Grades Of Inconel 600 Flange
The Inconel 600 flanges are made in different standards, and some of the popular ones are given below.
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | ????? 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Dimensions Chart of Inconel 600 Flanges
The dimension chart of Inconel 600 flanges is provided below. For more information, contact us.
| Size (in) | OD (O) | Thk (C) | Hub at Base (X) | RF Dia (R) | Length Thru Hub (Y) | Bore (B) | Fillet (r) |
| - | 3.50 | 7/16 | 1-3/16 | 1-3/8 | 5/8 | 0.84 | 1/8 |
| - | 3.88 | 1/2 | 1-1/2 | 1-11/16 | 5/8 | 1.05 | 1/8 |
| 1 | 4.25 | 9/16 | 1-15/16 | 2 | 11/16 | 1.32 | 1/8 |
| 1 - | 4.62 | 5/8 | 2-5/16 | 2-1/2 | 13/16 | 1.66 | 3/16 |
| 1 - | 5.00 | 11/16 | 2-9/16 | 2-7/8 | 7/8 | 1.90 | 1/4 |
| 2 | 6.00 | 3/4 | 3-1/16 | 3-5/8 | 1 | 2.38 | 5/16 |
| 2 - | 7.00 | 7/8 | 3-9/16 | 4-1/8 | 1-1/8 | 2.88 | 5/16 |
| 3 | 7.50 | 15/16 | 4-1/4 | 5 | 1-3/16 | 3.50 | 3/8 |
| 3 - | 8.50 | 15/16 | 4-13/16 | 5-1/2 | 1-1/4 | 4.00 | 3/8 |
| 4 | 9.00 | 15/16 | 5-5/16 | 6-1/16 | 1-5/16 | 4.50 | 7/16 |
| 5 | 10.00 | 15/16 | 6-7/16 | 7-5/16 | 1-7/16 | 5.56 | 7/16 |
| 6 | 11.00 | 1 | 7-9/16 | 8-1/2 | 1-9/16 | 6.63 | 1/2 |
| 8 | 13.50 | 1-1/8 | 9-11/16 | 10-5/8 | 1-3/4 | 8.63 | 1/2 |
| 10 | 16.00 | 1-3/16 | 12 | 12-3/4 | 1-15/16 | 10.75 | 1/2 |
| 12 | 19.00 | 1-1/4 | 14-3/8 | 15 | 2-3/16 | 12.75 | 1/2 |
| 14 | 21.00 | 1-3/8 | 15-3/4 | 16-1/4 | 3-1/8 | 14.00 | 1/2 |
| 16 | 23.50 | 1-7/16 | 18 | 18-1/2 | 3-7/16 | 16.00 | 1/2 |
| 18 | 25.00 | 1-9/16 | 19-7/8 | 21 | 3-13/16 | 18.00 | 1/2 |
| 20 | 27.50 | 1-11/16 | 22 | 23 | 4-1/16 | 20.00 | 1/2 |
| 24 | 32.00 | 1-7/8 | 26-1/8 | 27-1/4 | 4-3/8 | 24.00 | 1/2 |
ANSI B16.5 Alloy 600 Flanges Weight Chart
Before buying any material, knowing about the weight helps you to plan your cost and delivery. The chart provides detailed information on the Inconel 600 flanges' weight.
| Standard | Class | Diameter (mm) | Bolt Circle Diameter (mm) | Number of Bolts | Bolt Size | Diameter of Bolt Hole (mm) |
| AS 4087 | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
Inconel 600 Flanges Pressure Rating
To know about the detailed pressure rating of the Inconel 600 Flanges, refer to the table below.
| Temperature (-F) | Class 2500 | Class 1500 | Class 900 | Class 600 | Class 400 | Class 300 | Class 150 |
| -20 to 100 | 6000 | 3600 | 2160 | 1440 | 960 | 720 | 275 |
| 200 | 5000 | 3000 | 1800 | 1200 | 800 | 600 | 230 |
| 400 | 4140 | 2485 | 1490 | 995 | 660 | 495 | 190 |
| 600 | 3640 | 2185 | 1310 | 875 | 580 | 435 | 140 |
| 800 | 3360 | 2015 | 1210 | 805 | 540 | 405 | 80 |
| 1000 | 2675 | 1605 | 965 | 640 | 430 | 320 | 20 |
| 1200 | 1285 | 770 | 465 | 310 | 205 | 155 | 20 |
| 1400 | 400 | 240 | 145 | 95 | 65 | 50 | 20 |
Types of Inconel 600 Flanges
Inconel 600 Orifice Flange
Inconel 600 Threaded Flange
Inconel 600 Reducing Flange
Inconel 600 Lap Joint Flange
Inconel 600 Long Weld Neck Flange
Inconel 600 Socket Weld Flange
Inconel 600 Weld Neck Flange
Inconel 600 Blind Flange
Inconel 600 Slip-On Flange
Application Uses of Inconel 600 Flanges
Inconel 600 flanges are used in applications where high resistance to heat, corrosion, and severe operating conditions are required in industries. They are very important in chemical and petrochemical processing equipment that deals with corrosive fluids, and in the aerospace industry, they are employed in jet engines and airframe systems since they are very stable at high temperatures. These flanges are used in the pipelines, valves, and wellhead components of the oil and gas industry, where strength and reliability are necessary requirements. They are also widely applied in the production of power, particularly in nuclear reactors and heat exchangers, and in the marine engineering industry, where resistance to seawater corrosion is vital. Also, Inconel 600 flanges find application in the pulp and paper industry to withstand corrosive compounds, in food processing equipment in need of cleanliness and resistance to organic acids, and in heat treating equipment, including furnace muffles and retorts, and thus it is a reliable solution with a large variety of demanding industrial applications.
Frequently Asked Questions (FAQ)
Inconel 600 flanges are pipe flanges made from a nickel-chromium alloy designed for high temperatures, corrosion resistance, and extreme environments.
They last a very long time because they are highly resistant to corrosion, oxidation, and chemical attack, even in harsh conditions.
Yes, Inconel 600 performs much better than stainless steel at high temperatures, especially where oxidation and heat resistance are required.
Yes, they are widely used in chemical plants because they resist corrosive chemicals and maintain strength in tough conditions.
They typically meet ASTM, ANSI, and ASME standards and are supplied by manufacturers with ISO certification.
