Metinox Overseas is one of the leading Carbon Steel flanges manufacturers in India and is a manufacturer of high-pressure and low-temperature flanges with precision engineering in production and design. We were founded in 2003 under the ISO 9001:2008 certification and have vast experience in the production of high quality carbon steel flanges, which are highly durable and reliable. We have been keen on the strict quality control procedures and therefore, all our products are of international standards and this has earned us a reputation of a reliable partner in major infrastructure projects across the world.
Our flanges are manufactured based on ANSI B16.5, ASME B16.47, MSS-SP44, API, AWWA-C207, DIN, BS standards working out of our state of the art manufacturing plants located in Mumbai. We present an entire spectrum of Carbon Steel grades ASTM A105, ASTM A350 LF2, ASTM A350 LF3, ASTM A516 Grade 60, ASTM A516 Grade 70, ASTM A694 F42, F52, F60, F65 and ASTM A182 F1, F11, F22. We have slip-on, weld neck, blind, threaded, socket weld, and lap joint flanges with pressure classes of 150 LBS to 2500 LBS in our inventory.
At Metinox Overseas, all the carbon steel flanges are made of high-quality raw materials that are obtained in well-known mills. We maintain a high level of dimensional accuracy and finish using high-technology machining. We have a wide range of standard sizes and materials, giving us an immediate delivery to our customers all over the world. We deliver actively to various industries such as oil and gas pipelines, petrochemical refineries, power generation facilities, water treatment plants, and heavy engineering in the Indian and international markets.
Table of Contents
Carbon Steel Flanges by Grade
.webp)
ASTM A105 Flanges
.webp)

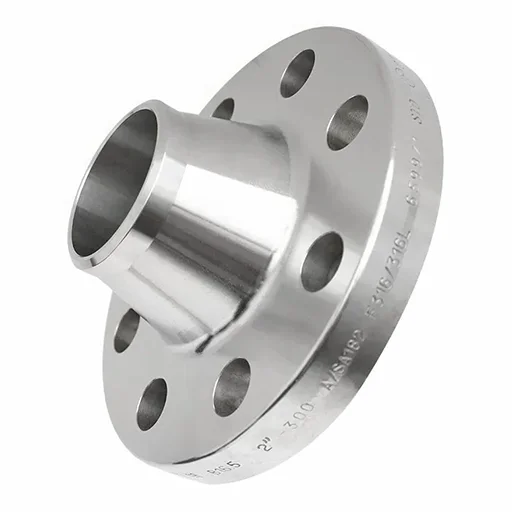

ASTM A350 LF2 Flanges
.webp)

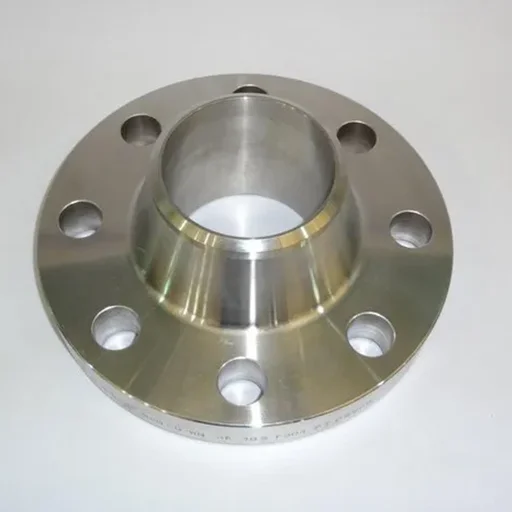

ASTM A350 LF3 Flanges
.webp)

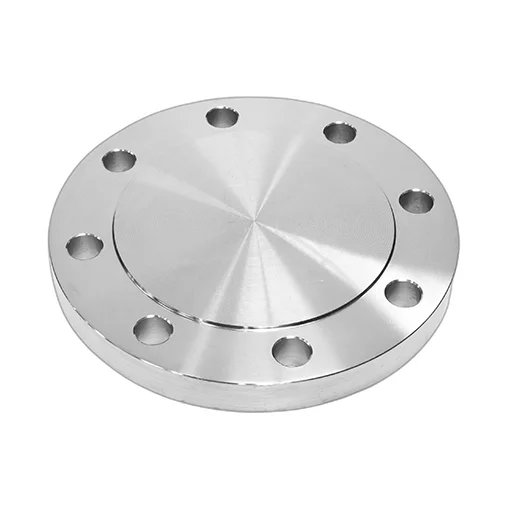

ASTM A516 Grade 60 Flanges
.webp)
ASTM A516 Grade 70 Flanges
.webp)

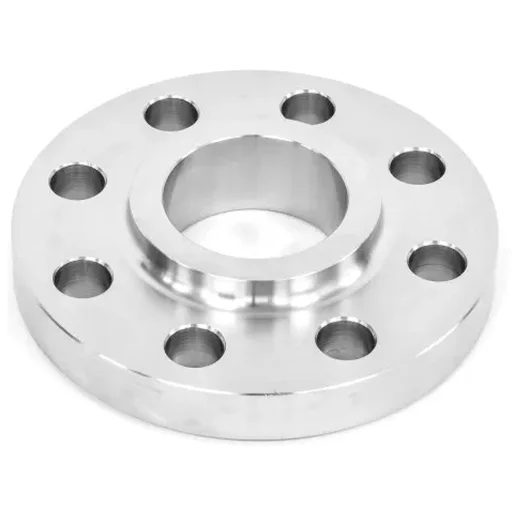

ASTM A694 F42 Flanges
.webp)

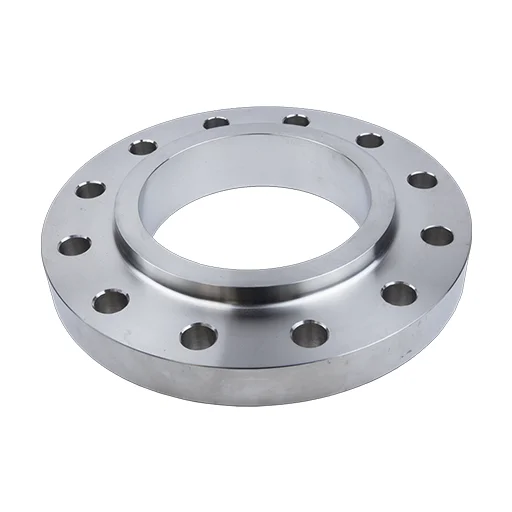

ASTM A694 F52 Flanges
.webp)
ASTM A694 F60 Flanges
.webp)
ASTM A694 F65 Flanges
.webp)

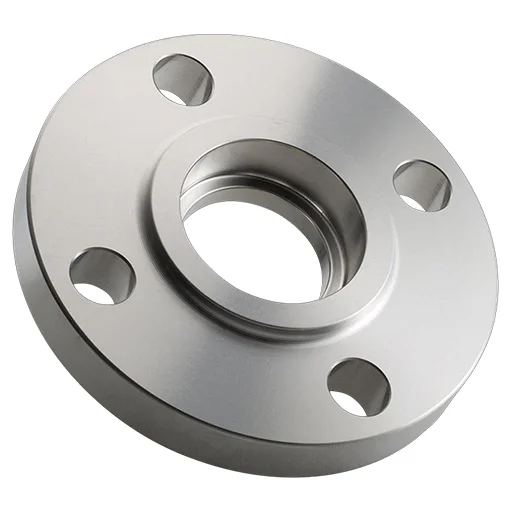

ASTM A182 F1 Flanges
.webp)
ASTM A182 F11 Flanges
.webp)

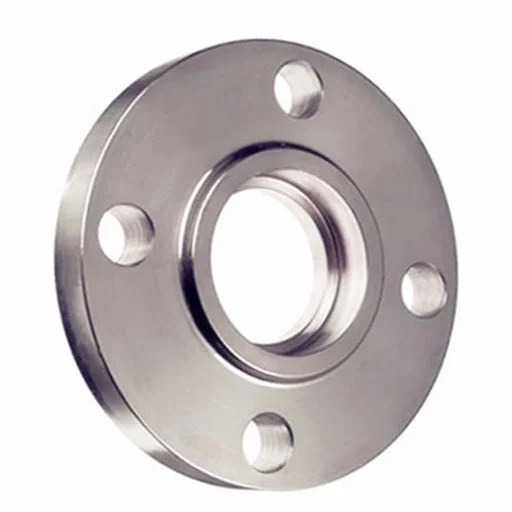

ASTM A182 F22 Flanges
Carbon Steel Flanges Specification
Our Carbon Steel Flanges are manufactured to strict dimensional and material specifications. Below are the standard specifications we follow:
| Specification | Details |
| Flange Types | Slip-On, Weld Neck, Blind, Threaded, Socket Weld, Lap Joint, Ring Type Joint, Orifice, Spectacle Blind |
| Pressure Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, PN6, PN10, PN16, PN25, PN40, PN64 |
| Size Range | 1/2" (15 NB) to 48" (1200 NB) |
| Face Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF) |
| Standards | ANSI B16.5, ASME B16.47 Series A & B, MSS-SP44, API 6A, DIN, BS, EN 1092-1 |
Carbon Steel Grades We Manufacture
Metinox Overseas manufactures premium quality Carbon Steel Flanges covering a wide range of specifications for high-temperature, low-temperature, and high-yield applications.
| Grade | Applications / Features |
| ASTM A105 | Standard forged carbon steel piping components for ambient- and higher-temperature service in pressure systems. |
| ASTM A350 LF2 | Carbon steel piping components for low-temperature service requiring notch toughness testing. Ideal for cold environments. |
| ASTM A350 LF3 | Low-temperature carbon steel grade offering enhanced impact properties at very low temperatures. |
| ASTM A516 Grade 60 / 70 | Carbon steel plates for moderate- and lower-temperature service, primarily used in welded pressure vessels. |
| ASTM A694 F42 / F52 / F60 / F65 | High-yield carbon steel flanges typically used in high-pressure transmission service for oil and gas pipelines. |
| ASTM A182 F1 / F11 / F22 | Low alloy steel flanges for high-temperature service, providing excellent strength and resistance to creep. |
Chemical Composition
Chemical composition is a critical factor in determining the performance and suitability of Carbon Steel Flanges. Below is the typical composition for our grades:
| Grade | C (max) | Mn | Si | P (max) | S (max) | Cr | Mo | Ni |
| A105 | 0.35 | 0.60-1.05 | 0.10-0.35 | 0.035 | 0.040 | 0.30 max | 0.12 max | 0.40 max |
| A350 LF2 | 0.30 | 0.60-1.35 | 0.15-0.30 | 0.035 | 0.040 | 0.30 max | 0.12 max | 0.40 max |
| A350 LF3 | 0.20 | 0.90 max | 0.20-0.35 | 0.035 | 0.040 | 0.30 max | 0.12 max | 3.3-3.7 |
| A516 Gr 70 | 0.27-0.31 | 0.85-1.20 | 0.15-0.40 | 0.035 | 0.035 | - | - | - |
| A694 F52 | 0.22 | 1.35 | 0.15-0.35 | 0.025 | 0.025 | - | - | - |
| A694 F60 | 0.26 | 1.40 | 0.15-0.35 | 0.025 | 0.025 | - | - | - |
| A182 F11 Cl.2 | 0.05-0.15 | 0.30-0.60 | 0.50-1.00 | 0.030 | 0.030 | 1.00-1.50 | 0.44-0.65 | - |
| A182 F22 Cl.3 | 0.05-0.15 | 0.30-0.60 | 0.50 max | 0.030 | 0.030 | 2.00-2.50 | 0.87-1.13 | - |
Mechanical Properties
The mechanical properties ensure the durability and pressure-bearing capacity of our flanges under various conditions.
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB max) |
| A105 | 485 min | 250 min | 30 (min) | 187 |
| A350 LF2 Cl.1 | 485-655 | 250 min | 22 (min) | 197 |
| A350 LF3 Cl.1 | 485-655 | 250 min | 22 (min) | 197 |
| A516 Gr 70 | 485-620 | 260 min | 21 (min) | - |
| A694 F42 | 415 min | 290 min | 20 (min) | - |
| A694 F52 | 455 min | 360 min | 20 (min) | - |
| A694 F60 | 515 min | 415 min | 20 (min) | - |
| A694 F65 | 530 min | 450 min | 20 (min) | - |
| A182 F11 Cl.2 | 485 min | 275 min | 20 (min) | 179 |
| A182 F22 Cl.3 | 515 min | 310 min | 20 (min) | 170 |
Types of Carbon Steel Flanges
Metinox Overseas has a large range of different types of Carbon Steel flanges that fit into particular piping needs and pressure ratings.
Slip-On Flanges
These are simple to install and cost-effective as they slide on the pipe and become welded to it with a fillet.
Weld Neck Flanges
With the tapered hub to butt weld, it has superior building strength capacity in the case of high pressure systems.
Blind Flanges
Flanges are solid disks that are used to cover the terminus of a piping system or a vessel aperture opening so that it may be easily accessed.
Socket Weld Flanges
Have a socket where the pipes can be inserted and fillet welded, suitable to small bore, high pressure lines.
Threaded Flanges
Internally threaded and without a need of welding, can be used in low-pressure and non-hazardous work.
Lap Joint Flanges
This is applied with stub ends and can be rotated to align it and dismantled easily to check the inside.
Orifice Flanges
special flanges employed with orifice meters to determine the rate of flow of liquids or gasses.
Long Weld Neck Flanges
These are the same flanges as the standard weld necks except that they have a longer neck and are normally employed in the connection of vessels.
Reducing Flanges
It is a method of joining two or more pipes that have varying diameters without using separate reducer.
Spectacle Blind Flanges
This is a safety equipment that is used to isolate a part of the line or equipment, and it is composed of a ring and a plate.
Application and Uses
Carbon steel flanges become the essential part of most of the industrial piping systems because of their strength, affordability and versatility. Their application is widespread in oil and gas pipelines, oil refineries, and power generation plants in transmission and distribution, hydrocarbon processing and steam and water line processing, respectively. Also, they are vital in refining activities, offshore platforms involving high-yield strength parts, water treatment plants, general industrial piping, ship constructions, and heavy constructions. They are critical infrastructures because of their capability to resist high pressure, and moderate temperatures are found in most parts of the world.
Oil & Gas Pipelines
Transmission and distribution lines for hydrocarbon processing requiring high strength and pressure resistance.
Oil Refineries
Hydrocarbon processing systems and steam/water lines operating under moderate to high temperatures.
Power Generation Plants
Steam and water line processing in thermal power stations and utility systems.
Water Treatment Plants
General industrial piping for water distribution and wastewater management systems.
Marine & Offshore
Offshore platform connections and ship construction requiring high-yield strength components.
Heavy Construction
Critical infrastructure projects requiring durable, pressure-resistant piping connections.
