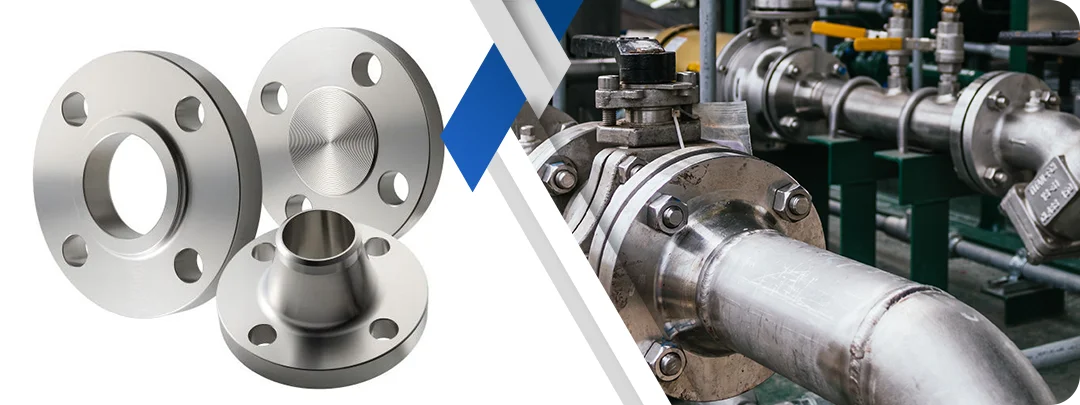

ASTM A182 F1 Flanges Manufacturer & Supplier
Metinox Overseas is a major producer and distributor of the ASTM A182 F1 Flanges which are designed to serve in the moderate high temperature service applications in the power generation, petrochemical processing and refinery operations in which temperatures can rise up to 540 deg.C (1000 deg.F). Our SA 182 Grade F1 Alloy Steel Flanges are by far, specifically controlled chromium (1.00-1.50%), and molybdenum (0.44-0.65) which contribute to thermal performance, creep resistance and oxidation protection. The UNS K12822 Flanges are produced using accurate heat forging, the normalizing and tempering heat treatment, which creates the best microstructure that can perform excellently in steam piping, boiler headers, heat exchangers, and hydrocarbon processing equipment. F1 flanges have minimum tensile strength of 415 MPa and yield strength of 205 Mpa which offers sufficient structural integrity to pressure-containing application at moderate high temperatures.
We offer ASME SA182 F1 Forged Flanges with Pressure Class varying 150 to 2500 per ASME B16.5 and B16.47 with sizes 1/2 to 60 NB with either Weld Neck, Slip-On, Blind, Socket Weld, Threaded and Lap Joint types, with RF, FF and RTJ face finishes. All the flanges are thoroughly tested such as PMI verification, tensile testing, hardness testing, dimensional checking and NDT according to the ASTM A275/E165 guidelines. Hearth number stamping and EN 10204 3.1B Mill Test Certificate are used to offer complete material traceability. Our products are exported to 50+ countries with Third-Party Inspection provided by TUV, SGS, Bureau Veritas, and PED 2014/68/EU, NACE MR0175/iso 15156 and ASME B31.1/B31.3 piping standards compliance certificates.
Table of Contents
- ASTM A182 F1 Flanges Technical Specifications
- UNS K12822 Equivalent Grades
- ASTM A182 F1 Chemical Composition
- Mechanical Properties of SA 182 Grade F1 Flanges
- ASTM A182 F1 Flanges Dimensions & Pressure Rating Chart
- Types of ASTM A182 F1 Flanges Available
- Standard Flange Sizes & Weight Chart
- Is ASTM A182 F1 Good Quality for High-Temperature Service?
- Heat Treatment & Testing Requirements
- ASTM A182 F1 Flanges Price List 2025
- Applications of A182 F1 Flanges in Various Industries
- Why Choose ASTM A182 F1 Flanges from Metinox Overseas?
- ASTM A182 F1 Flanges Delivery Time & CIF Pricing by Country
- Other Types of ASTM A182 F1 Alloy Steel Flanges
- Popular Locations Where We Supply ASTM A182 F1 Flanges
- Frequently Asked Questions (FAQ)
ASTM A182 F1 Flanges Technical Specifications
| Feature | Details |
| Specifications | ASTM A182 / ASME SA182 / MSS SP-44 / ASTM A336 |
| Grade | F1 (Chromium-Molybdenum Alloy Steel) |
| Material Designation | 1Cr-0.5Mo (Chromium-Molybdenum Steel) |
| UNS Number | K12822 |
| Dimensional Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, MSS SP-44 |
| Size Range | 1/2" (15 NB) to 60" (1500 NB) |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# (B16.5) |
| Flange Types | Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice, Long Weld Neck, Reducing |
| Flange Face | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Male & Female, Tongue & Groove |
| Manufacturing Type | Hot Forged |
| Microstructure | Normalized and Tempered Ferrite-Pearlite |
| Heat Treatment | Normalized & Tempered, or Liquid Quenched & Tempered |
| Testing | Tensile, Hardness, PMI, Dimensional, Hydrostatic, Magnetic Particle/Liquid Penetrant |
| Inspection | Third Party Inspection by TUV, SGS, Bureau Veritas, Lloyd's, DNV GL |
| Certifications | EN 10204 3.1B MTC, NACE MR0175, PED 2014/68/EU, ASME B31.1, B31.3 |
UNS K12822 Equivalent Grades
| STANDARD | USA | GERMANY | EUROPE | JAPAN | INDIA | UK | CHINA |
| A182 F1 | ASTM A182 F1 ASME SA182 F1 UNS K12822 |
1.7335 13CrMo4-5 |
EN 10222-2 13CrMo4-5 |
SFVC 1 | - | 1Cr-0.5Mo | 12Cr1MoV |
ASTM A182 F1 Chemical Composition
The detailed composition of this material is given in the following table.
| Element | Composition (%) | Function |
| Carbon (C) | 0.10 - 0.20 | Strength and hardness |
| Manganese (Mn) | 0.30 - 0.80 | Hardenability and strength |
| Phosphorus (P) | 0.035 max | Controlled for toughness |
| Sulfur (S) | 0.040 max | Minimized for ductility |
| Silicon (Si) | 0.10 - 0.50 | Deoxidation and strength |
| Chromium (Cr) | 1.00 - 1.50 | Oxidation/corrosion resistance |
| Molybdenum (Mo) | 0.44 - 0.65 | High-temperature strength, creep resistance |
Note: The low carbon content (0.10-0.20%) combined with controlled Cr-Mo additions provides excellent weldability without preheating requirements for thin sections.
Mechanical Properties of SA 182 Grade F1 Flanges
The mechanical properties decide the shelflife of the material. The table below gives the information about the mechanical properties of ASTM A182 F1 Flanges.
| Property | Requirement | Testing Standard |
| Tensile Strength | 415 MPa (60 ksi) minimum | ASTM A370 |
| Yield Strength (0.2% offset) | 205 MPa (30 ksi) minimum | ASTM A370 |
| Elongation in 2" | 22% minimum | ASTM A370 |
| Reduction of Area | 35% minimum | ASTM A370 |
| Hardness (Brinell) | 121-187 HB (typical after heat treatment) | ASTM E10 |
| Charpy V-Notch Impact | As agreed (typically 20 J min at room temp) | ASTM A370 |
Note: F1 offers moderate strength with excellent ductility and toughness for welded fabrications in power generation applications.
ASTM A182 F1 Flanges Dimensions & Pressure Rating Chart
Pressure-Temperature Ratings for A182 F1 Flanges
| Temperature -F (-C) | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 | Class 2500 |
|---|---|---|---|---|---|---|
| -20 to 100 (-29 to 38) | 285 psi | 740 psi | 1480 psi | 2220 psi | 3705 psi | 6170 psi |
| 200 (93) | 260 psi | 675 psi | 1350 psi | 2025 psi | 3375 psi | 5625 psi |
| 300 (149) | 230 psi | 655 psi | 1315 psi | 1970 psi | 3280 psi | 5470 psi |
| 400 (204) | 200 psi | 635 psi | 1270 psi | 1900 psi | 3170 psi | 5280 psi |
| 500 (260) | 170 psi | 600 psi | 1200 psi | 1795 psi | 3000 psi | 4995 psi |
| 600 (316) | 140 psi | 550 psi | 1095 psi | 1640 psi | 2735 psi | 4560 psi |
| 650 (343) | 125 psi | 535 psi | 1075 psi | 1610 psi | 2685 psi | 4480 psi |
| 700 (371) | 110 psi | 505 psi | 1010 psi | 1515 psi | 2530 psi | 4215 psi |
| 750 (399) | 95 psi | 410 psi | 825 psi | 1230 psi | 2055 psi | 3430 psi |
| 800 (427) | 80 psi | 270 psi | 540 psi | 805 psi | 1345 psi | 2240 psi |
| 850 (454) | 65 psi | 170 psi | 340 psi | 505 psi | 845 psi | 1410 psi |
| 900 (482) | 50 psi | 125 psi | 250 psi | 375 psi | 625 psi | 1045 psi |
| 950 (510) | 35 psi | 95 psi | 190 psi | 280 psi | 470 psi | 785 psi |
| 1000 (538) | 20 psi | 65 psi | 130 psi | 195 psi | 325 psi | 540 psi |
Note: F1 maintains good pressure ratings up to 1000-F, suitable for moderate high-temperature steam and process applications.
Types of ASTM A182 F1 Flanges Available
ASTM A182 F1 Orifice Flange
ASTM A182 F1 Threaded Flange
ASTM A182 F1 Reducing Flange
ASTM A182 F1 Lap Joint Flange
ASTM A182 F1 Long Weld Neck Flange
ASTM A182 F1 Socket Weld Flange
ASTM A182 F1 Weld Neck Flange
ASTM A182 F1 Blind Flange
ASTM A182 F1 Slip-On Flange
Standard Flange Sizes & Weight Chart
ASTM A182 F1 Weld Neck Flange Dimensions (ANSI B16.5) - Class 300 Sample
| NPS | Outside Diameter (mm) | Thickness (mm) | Bore (mm) | Hub Dia (mm) | Bolt Circle (mm) | No. of Bolts | Bolt Dia | Approx Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 89 | 11 | 21 | 35 | 60 | 4 | M16 | 0.54 |
| 1" | 108 | 13 | 33 | 51 | 79 | 4 | M16 | 0.95 |
| 2" | 165 | 16 | 60 | 84 | 127 | 4 | M19 | 2.27 |
| 4" | 229 | 24 | 114 | 146 | 190 | 8 | M19 | 6.80 |
| 6" | 267 | 25 | 168 | 210 | 241 | 8 | M22 | 11.35 |
| 8" | 330 | 29 | 219 | 270 | 298 | 8 | M22 | 19.05 |
| 10" | 387 | 32 | 273 | 330 | 362 | 12 | M25 | 30.85 |
| 12" | 451 | 35 | 324 | 381 | 432 | 12 | M25 | 46.75 |
| 16" | 540 | 41 | 419 | 495 | 521 | 16 | M28 | 82.55 |
| 20" | 635 | 48 | 508 | 603 | 616 | 20 | M28 | 127.0 |
| 24" | 749 | 52 | 610 | 705 | 711 | 20 | M32 | 196.0 |
Is ASTM A182 F1 Good Quality for High-Temperature Service?
Yes, ASTM A182 F1 is a much-known cost-efficient and stable grade of alloy steel to be used in moderate temperatures service in power generation, petrochemical, and refinery industries. F1 is a chromium-molybdenum (Cr-Mo) alloy steel created to offer superior elevated temperature strength and creep properties over plain carbon steels without compromising the good weldability and formability properties of F1, which makes it cost-effective to use in large-scale manufacture.
The regulated incorporation of chromium (1.00-1.50%) offers inhibition of oxidation levels and augmentation of development of a protective oxide coating during high temperatures as high as 540 C (1000 F). Molybdenum (0.44-0.65%) has been shown to enhance high temperature strength and creep resistance greatly due to the formation of fine carbide precipitates that inhibit grain boundary sliding and dislocation rearrangements during long term exposure to high temperature stress. This combination allows F1 to be used in components that undergo moderate pressure and temperature conditions e.g. steam piping in subcritical power plants, shells of heat exchangers and refinery process piping.
F1 has a high level of weldability because it has a low carbon content (0.10-0.20) and a balanced alloy composition. Thin sections do not normally need preheat whereas thicker sections might need preheat at 95-205C (200-400F) to avoid cracking caused by hydrogen. The general heat treatment on post-weld is post-weld heat treatment (PWHT) which is conducted at a temperature of 675-760 S (1250-1400 F) to eliminate remaining stresses and re-establish the best mechanical properties in the welded joints. F1 offers the ideal balance of strength, ductility, and toughness through the normalized and tempered microstructure of F1 to manufacturing fabricated components.
F1 is less expensive than higher alloy grades such as F5, F9, F11, or F22, and still offers sufficient performance to be used in applications up to 540 o C (1000 o F). It is specifically suitable to steam piping, boiler parts, pressure vessels, and heat exchangers of the conventional power stations, refineries treating non-corrosive hydrocarbons, and petrochemical plants where moderate temperature process streams are involved. F1 belongs to ASME B16.34 Material Group 1.2 and has long-standing allowable stresses in the design of products that were given in ASME Section II Part D.
Its major drawbacks are that F1 has a moderate temperature limit (top continuous service 540 C or 268 F) and lower creep rupture strength than higher chromium-molybdenum alloys such as F11 (1.25Cr-0.5Mo), F22 (2.25Cr-1Mo), or F9 (9Cr-1Mo). To use applications beyond 540 C, or to have high creep resistance, it is suggested to upgrade to F5, F9, F11, or F22. Nevertheless, in terms of its target service area, F1 offers a good balance of performance, welding, and cost.
Heat Treatment & Testing Requirements
Heat Treatment Requirements
| Process | Step / Parameter | Requirement | Remarks |
|---|---|---|---|
| Normalizing + Tempering | Normalizing Temperature | 900-955-C (1650-1750-F) | Preferred heat treatment |
| Holding Time | Adequate soaking based on thickness | Typically 1 hr per 25mm | |
| Cooling After Normalizing | Air cool to below 315-C | Before tempering | |
| Tempering Temperature | 675-760-C (1250-1400-F) | Mandatory | |
| Tempering Holding Time | Minimum 1 hour | Based on thickness | |
| Cooling After Tempering | Air cool | To room temperature | |
| Liquid Quenching + Tempering (QT) | Austenitizing Temperature | 900-955-C (1650-1750-F) | When agreed with purchaser |
| Quench Medium | Water or oil | Based on section size | |
| Tempering Temperature | 675-760-C (1250-1400-F) | Mandatory |
Testing & Inspection Requirements
| Test / Inspection | Standard / Requirement | Acceptance Criteria |
|---|---|---|
| Tensile Testing | ASTM A370 | Tensile = 60 ksi, Yield = 30 ksi, Elongation = 22% |
| Hardness Testing | ASTM E10 (Brinell) | Typical 121-187 HB |
| PMI Testing | Positive Material Identification | Verification of Cr (1.0-1.5%), Mo (0.44-0.65%) |
| Dimensional Inspection | ASME B16.5 / B16.47 | Per applicable standard tolerances |
| Hydrostatic Test | As specified | Per customer requirements |
| Magnetic Particle Test | ASTM A275 | No linear indications |
| Liquid Penetrant Test | ASTM E165 | No surface defects |
| Visual Inspection | MSS SP-55 | Surface finish and marking verification |
ASTM A182 F1 Flanges Price List 2025
| Flange Type | Size Range | Pressure Class | Indicative Price Range (USD/Piece) |
|---|---|---|---|
| Weld Neck (WN) | 1/2" - 2" | 150# | $18 - $48 |
| Weld Neck (WN) | 4" - 8" | 150# | $75 - $285 |
| Weld Neck (WN) | 10" - 24" | 150# | $425 - $1,580 |
| Weld Neck (WN) | 1/2" - 2" | 300# | $25 - $68 |
| Weld Neck (WN) | 4" - 8" | 300# | $115 - $425 |
| Weld Neck (WN) | 10" - 24" | 300# | $625 - $2,280 |
| Weld Neck (WN) | 1/2" - 2" | 600# | $38 - $95 |
| Weld Neck (WN) | 4" - 8" | 600# | $175 - $625 |
| Weld Neck (WN) | 10" - 24" | 600# | $925 - $3,380 |
| Slip-On (SO) | 1/2" - 2" | 150# | $14 - $38 |
| Slip-On (SO) | 4" - 8" | 150# | $58 - $225 |
| Blind (BL) | 1/2" - 2" | 150# | $12 - $35 |
| Blind (BL) | 4" - 8" | 150# | $62 - $258 |
| Socket Weld (SW) | 1/2" - 2" | 150# - 600# | $19 - $82 |
Note: A182 F1 flanges are typically 35-50% more expensive than A105 carbon steel due to alloy content (Cr, Mo) and heat treatment requirements.
Applications of A182 F1 Flanges in Various Industries
The ASTM A182 F1 Alloy Steel Flanges are commonly used in many industrial applications, and some of the common industries are given below.
Power Generation Plants
Steam piping Systems in subcritical boilers (up to 540 C), economizer connections, feedwater heater piping, turbine bypass systems, auxiliary steam lines, and condensate return systems in the traditional coal-fired and combined cycle power plants.
Oil Refineries
Crude distillation unit overheads, vacuum distillation columns, catalytic cracking process piping, coker unit fractionators, hydrotreating unit moderate temperature sections, visbreaker units, and reformer feed-effluent heat exchangers below 540 o C.
Petrochemical Industry
Connection in ethylene cracker furnace (moderate temperature stations), chemical processing plants steam facilities, hydrogen reformer moderate temperature zones, ammonia plant steam facilities, methanol plant steam facilities, moderate temperature piping systems.
Chemical Processing
Chemical plants: heat recovery systems with sulfuric acid plants, moderate temperature section with nitric acid plants, phosphoric acid production equipment, steam piping with industrial gas production, and process heat recovery systems.
Heat Exchangers
Shell-and-tube Shell heat exchanger shells, bonnets, channel heads in refinery and petrochemical service, reboiler connections, condenser connections, and feed-effluent exchanger in moderate temperature service.
Boiler Components
Industry and utility boilers boiler drums, headers, and piping, outlet connections of the superheater (moderate temperature), connections of the reheater, attemperator systems, and blowdown piping systems.
Pressure Vessels
Reactor vessels used in petrochemical processes, separators, drums used in refining processes, flash drums, knock-out drums, and storage vessels used in moderate temperature services that demand the use of alloy steel.
Gas Processing
Compression unit of natural gas processing plants, gas treatment moderate temperature unit, dehydration unit piping, sweetening unit connection and NGL recovery unit.
Why Choose ASTM A182 F1 Flanges from Metinox Overseas?
Metinox Overseas is a reliable international distributor of ASTM A182 F1 Alloy Steel Flanges, which is a certified product offered to power generation, refining, and petrochemical facilities in 50 or more countries. We are strong in tight quality control and technical know how as well as customer oriented implementation in the whole chain of supply.
All F1 flanges are produced in certified manufacturing plant of ISO 9001:2015 with advanced hot forging, precision machining and controlled heat treatment procedures to ensure superiority of grain flow, dimensional accuracy, and uniform mechanical properties as per ASME B16.5 and B16.47.
Every batch is subjected to extensive testing that comprises PMI, tensile and hardness, (121187 HB) dimensional inspection, and complete traceability by means of EN 10204 3.1 Mill Test Certificates. Normalizing of up to 900-955 o C and tempering of up to 675-760 o C, which are recorded in furnace charts, is included in-house.
We are in favour of 3rd-party inspections (TUV, SGS, BV, DNV, Lloyd's) and in accordance with the requirements of PED, ASME B31.1/B31.3 and NACE MR0175. Metinox Overseas has competitive pricing, customization, ready stock, and worldwide logistics expertise, which guarantees high reliability of supply, rapid dispatch, and long term value of EPCs and end users all over the world.
ASTM A182 F1 Flanges Delivery Time & CIF Pricing by Country
Metinox Overseas operates a streamlined export logistics system designed to deliver ASTM A182 F1 Flanges to global destinations with predictable transit times and cost-effective shipping solutions. We offer flexible INCOTERMS including CIF (Cost, Insurance and Freight), FOB Mumbai/JNPT (Free on Board), CFR (Cost and Freight), DDP (Delivered Duty Paid), and DAP (Delivered at Place) to accommodate diverse purchasing requirements and budget constraints.
| Destination Region | Major Ports / Cities | Estimated Delivery Time | Typical CIF Terms |
|---|---|---|---|
| Middle East (GCC) | Dubai (Jebel Ali), Dammam (King Abdul Aziz Port), Doha (Hamad Port), Muscat (Sultan Qaboos Port), Kuwait (Shuwaikh Port), Bahrain (Khalifa Bin Salman Port) | 7-12 Days | CIF Dubai / CIF Dammam / CIF Doha / CIF Muscat |
| Europe | Rotterdam (Netherlands), Hamburg (Germany), Antwerp (Belgium), Southampton (UK), Felixstowe (UK), Genoa (Italy), Barcelona (Spain), Le Havre (France) | 22-28 Days | CIF Rotterdam / CIF Hamburg / CIF Antwerp |
| USA & Canada | Houston TX (Port of Houston), New York NY (Port of NY/NJ), Los Angeles CA (Port of LA), Long Beach CA, Savannah GA, Vancouver BC, Montreal QC | 28-35 Days | CIF Houston / CIF New York / CIF Los Angeles / CIF Vancouver |
| Latin America (LATAM) | Santos (Brazil), Paranagu- (Brazil), Veracruz (Mexico), Manzanillo (Mexico), Buenos Aires (Argentina), Callao (Peru), Cartagena (Colombia), Valpara-so (Chile) | 32-40 Days | CIF Santos / CIF Veracruz / CIF Buenos Aires / CIF Callao |
| Southeast Asia | Singapore (Port of Singapore), Port Klang (Malaysia), Laem Chabang (Thailand), Manila (Philippines), Jakarta (Tanjung Priok), Ho Chi Minh City (Vietnam) | 12-18 Days | CIF Singapore / CIF Port Klang / CIF Manila |
| Africa | Lagos (Apapa Port, Tin Can Island), Durban (South Africa), Mombasa (Kenya), Dar es Salaam (Tanzania), Alexandria (Egypt), Casablanca (Morocco), Port Said (Egypt) | 18-25 Days | CIF Lagos / CIF Durban / CIF Mombasa |
| East Asia | Shanghai (China), Busan (South Korea), Tokyo/Yokohama (Japan), Hong Kong, Taipei (Taiwan) | 15-22 Days | CIF Shanghai / CIF Busan / CIF Hong Kong |
| Oceania | Sydney (Australia), Melbourne (Australia), Brisbane (Australia), Auckland (New Zealand), Perth (Australia) | 20-28 Days | CIF Sydney / CIF Melbourne / CIF Auckland |
Important Notes on Delivery & Pricing:
Delivery times are estimates based on normal shipping schedules and may vary due to port congestion, customs clearance, transshipment, weather, and peak season surcharges during major holidays.
CIF pricing includes material cost, export packaging (wooden crates/cases, steel strapping, rust preventive coating, VCI bags, desiccants), ocean freight to named destination port, and marine insurance covering 110% of CIF value under ICC(A) terms.
Import duties, customs clearance fees, and inland transportation from destination port are excluded from CIF pricing and are the responsibility of the consignee unless DDP terms are specified.
Other Types of ASTM A182 F1 Alloy Steel Flanges
ASTM A182 F1 Weld Neck Flanges, SA 182 Grade F1 Slip-On Flanges, ASME SA182 F1 Blind Flanges, A182 F1 Socket Weld Flanges Stockists, UNS K12822 Lap Joint Flanges, F1 Alloy Steel Threaded Flanges, ASTM A182 F1 Orifice Flanges, 1Cr-0.5Mo Long Weld Neck Flanges, A182 F1 Reducing Flanges, F1 Spectacle Blind Flanges.
Popular Locations Where We Supply ASTM A182 F1 Flanges
astm a182 f1 flanges supplier in singapore, a182 f1 flanges suppliers in qatar, astm a182 f1 flanges suppliers in uae, sa182 f1 flanges suppliers in saudi arabia, astm a182 f1 flanges suppliers in oman, f1 alloy steel flanges suppliers in kuwait, astm a182 f1 flanges suppliers in bahrain, a182 f1 flanges suppliers in abu dhabi, astm a182 f1 flanges suppliers in dubai, f1 flanges suppliers in usa, astm a182 f1 flanges suppliers in canada, a182 f1 flanges suppliers in uk, astm a182 f1 flanges suppliers in germany.
People Also Search For
astm a182 f1 flanges manufacturer, a182 f1 weld neck flanges supplier, sa182 grade f1 flanges, uns k12822 flanges, f1 alloy steel flanges price list, astm a182 f1 slip on flanges, a182 f1 blind flanges dimensions, f1 socket weld flanges specifications, astm a182 f1 vs f5 flanges, a182 f1 flanges chemical composition.
Looking for High-Quality ASTM A182 F1 Flanges?
Let us support your projects with quality, precision, and performance.
Frequently Asked Questions (FAQ)
F1: F1 is chromium-molybdenum (Cr-Mo) alloy steel with 1.0-1.5% chromium and 0.44-0.65% molybdenum, which offers higher high-temperature strength and creep resistance up to 540 deg C ( 1000 deg F). A105 is pure carbon steel that can only be used up to 400degC. F1 has to be heat treated (normalized and tempered) and A105 may be provided in the forged state. F1 is better oxidized and has higher temperature mechanical properties than A105.
Thin sections (usually less than 19mm/0.75") of F1 may be welded without preheat at ambient temperatures over 10degC (50degF) and the base metal dry. The thicker parts are usually preheated to 95-205degC (200-400degF) in order to stop cracking caused by hydrogen. PWHT at temperatures of 675-760degC (1250-1400degF) is also advised as a means of removing all residual stresses and restoration of the best mechanical properties by all thicknesses. Welding procedures to be consulted are to ASME Section IX.
Maximum continuous service temperature of F1 flanges is 540 o C (1000 o F) in oxidizing environments. Temporary exposure to 565degC (1050degF) can be allowed based on pressure and time. At the higher temperatures (as high as 593degC/1100degF) upgrade to F5, F9, F11, and F22 grades that are better creep resistant. The temperature limits are spelt out in the ASME B16.34 and Section II Part D.
F1 (1Cr-0.5Mo) is the most economical grade of Cr-Mo that can be used to the temperature of up to 540degC and moderate creep strength. F11 (1.25Cr -0.5Mo) is a little stronger in high temperature and can be operated to 565degC. F22 (2.25Cr-1Mo) offers better creep strength and oxidation strength, up to 593 deg C. Applications that need high creep strength or are above 540degC use F11 or F22 despite the increased cost of the material.
Yes, every shipment would be accompanied by EN 10204 3.1B Mill Test Certificates that would contain the full chemical composition ( C, Mn, P, S, Si, Cr, Mo), mechanical properties ( tensile strength, yield strength, elongation, area reduction ) and hardness values, heat treatment parameters ( normalizing/tempering temperature and holding time ), heat number traceability, and dimension check. Other test reports are PMI, hydrostatic, and NDT (on request).
AWS A5.5 E8018-B2 (SMAW), ER80S-B2 (GTAW/GMAW), or other filler metals with the same 1Cr-0.5Mo composition should be used to weld F1 to F1. Where dissimilarity occurs between F1 and carbon steel, then use E8018-B2 or ER80S-B2. Nickel-based stainless Alloy 625 (ENiCrMo-3) or 309L stainless filler metals are to be used in place of F1 to austenitic stainless steel. Preheat 95-205 deg C and avoid interpass temperature exceeding 315 deg C. PWHT at 675-760degC is recommended.
Enquire Now
Get pricing within 24 hours!
