ASTM A105 forged fittings are the industry standard for high-pressure carbon steel piping systems in critical industrial applications. These forged fittings are manufactured from premium carbon steel material conforming to ASTM A105 / ASME SA105 standards and offer a minimum tensile strength of 485 MPa and a minimum yield strength of 250 MPa, making them the preferred choice for Class 3000, 6000, and 9000 LBS socket weld and threaded connections worldwide. ASTM A105 forged steel fittings are suitable for service temperatures up to 538°C (1000°F); for temperatures above 425°C, graphitisation limits should be verified in accordance with API RP 941.
Forged fittings are vital components of oil and gas pipelines, petrochemical plants, power generation stations and offshore platforms around the world, available in both pressure classes (2000 LBS to 9000 LBS) and socket weld or threaded options. The hot forging manufacturing process results in a more refined grain structure, which improves mechanical properties such as a minimum tensile strength of 485 MPa and a minimum yield strength of 250 MPa.
Metinox Overseas manufactures ASTM A105 forged fittings in accordance with the international quality standards, while the production and testing processes are advanced. The complete range of all ASTM A105 forged fittings from 1/8" to 4" NB conforming to ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-97 dimensional standards is manufactured in our ISO 9001:2015 certified manufacturing facility. Each fitting is quality tested before dispatch, as follows: PMI, hydrostatic pressure test and dimensional test.
Request a quoteTable of Contents
- What Are ASTM A105 Forged Fittings?
- Types of ASTM A105 Forged Fittings
- Specifications & Standards of ASTM A105 Forged Fittings
- Chemical Composition of ASTM A105 Forged Fittings
- Mechanical Properties of ASTM A105 Forged Fittings
- ASTM A105 Forged Fittings Dimensions & Pressure Ratings
- ASTM A105 Forged Fittings Price List
- ASTM A105 Forged Fittings Equivalent Pipe Schedule Chart
- Manufacturing Process & Quality Control
- ASTM A105 Forged Fittings Applications Across Industries
- Key Advantages of ASTM A105 Forged Fittings
- Installation Guidelines of ASTM A105 Forged Fittings
- FAQs About ASTM A105 Forged Fittings
- Global Supply & Delivery
- Get Your Quote Today
What Are ASTM A105 Forged Fittings?
ASTM A105 forged fittings are high-strength carbon steel pipe fittings manufactured through the hot forging process, designed specifically for high-pressure and high-temperature piping systems. These fittings conform to the American Society for Testing and Materials (ASTM) A105 specification, which defines the requirements for carbon steel forgings used in piping applications.
Key Characteristics
Material Composition: The base material is carbon steel with controlled amounts of manganese, phosphorus, silicon, and copper, providing optimal balance between strength, weldability, and machinability. The forging process eliminates internal voids and creates a uniform grain structure, resulting in superior mechanical properties compared to cast or machined fittings.
Manufacturing Excellence: Unlike casting or fabrication methods, hot forging involves heating carbon steel billets to 1380-1514°C and shaping them under high pressure using hydraulic presses or hammering. This process refines the grain structure, enhances mechanical properties, and eliminates porosity, making forged fittings ideal for critical pressure applications.
Performance Standards: ASTM A105 forged fittings are designed for service from -29°C to 538°C (1000°F) maximum, in pressure classes from 2000 to 9000 LBS. For service above 425°C, consult API RP 941 for graphitisation guidance. When the suffix “N” is added (A105N), the fitting has been normalised at 900–950°C to improve toughness and reduce residual stress — required by some project specifications and all ASME nuclear applications.

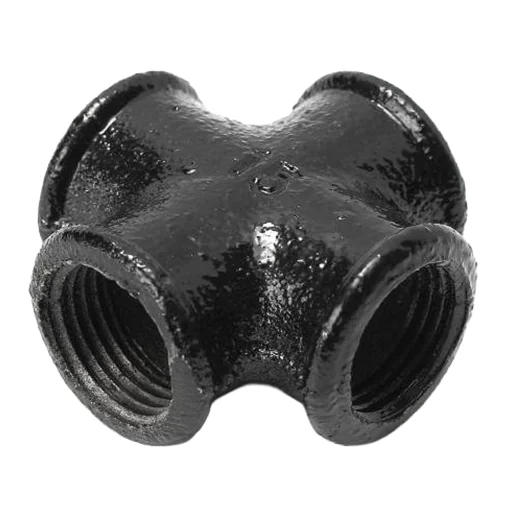

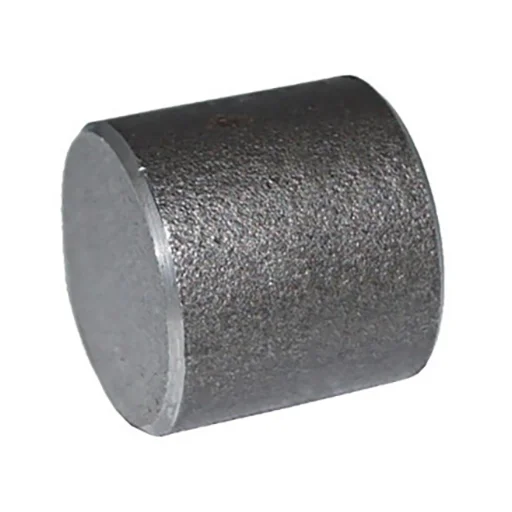

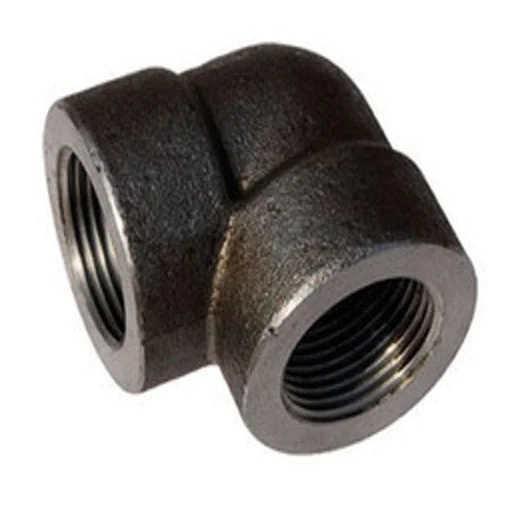

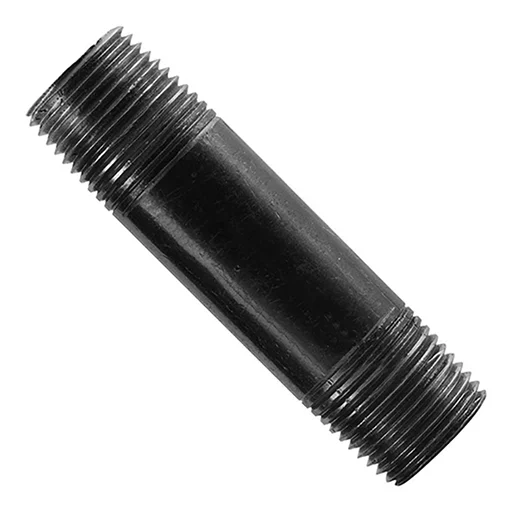

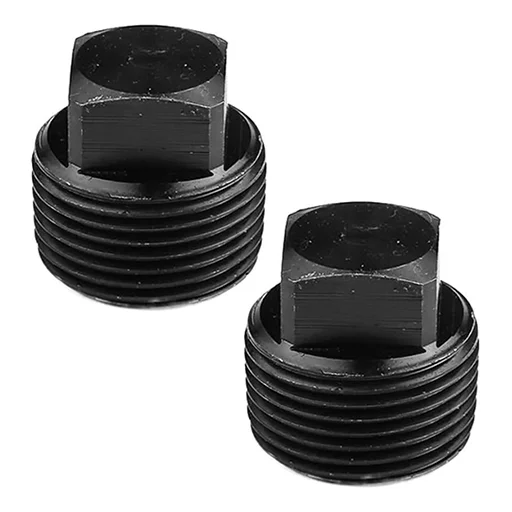

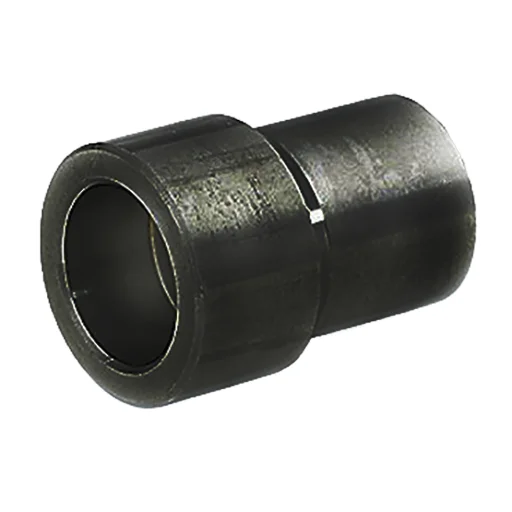

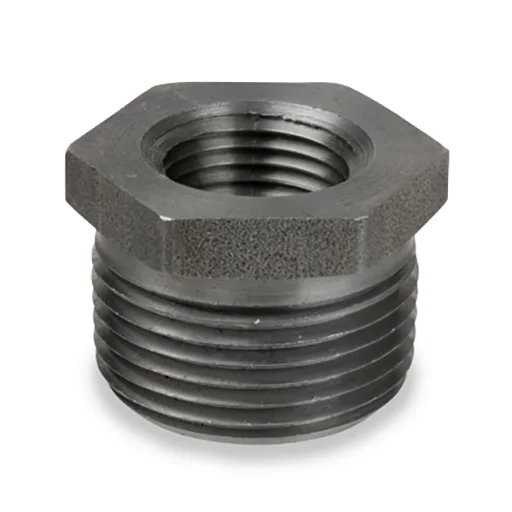

Types of ASTM A105 Forged Fittings
Specifications & Standards of ASTM A105 Forged Fittings
| Standard | Description | Application |
|---|---|---|
| ASTM A105 / ASME SA105 | Standard Specification for Carbon Steel Forgings for Piping Applications | Primary material standard |
| ASME SA105 / SA105M | ASME Boiler and Pressure Vessel Code equivalent designation (identical to ASTM A105) | Common specification for power plants, refineries, and ASME code applications |
| ASME B16.11 | Forged Fittings, Socket-Welding and Threaded | Dimensional standard for socket weld & threaded fittings |
| MSS SP-79 | Socket-Welding Reducer Inserts | Dimensional standard for reducer inserts |
| MSS SP-83 | Class 3000 Steel Pipe Unions, Socket-Welding and Threaded | Union specifications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs | Dimensional standard for nipples and plugs |
| MSS SP-97 | Integrally Reinforced Forged Branch Outlet Fittings | Branch connection specifications |
| BS 3799 | British Standard for Steel Pipe Fittings | UK specification for forged fittings |
| ISO 4144 | Carbon Steel Fittings Threaded to ISO 7-1 | International threading standard |
Chemical Composition of ASTM A105 Forged Fittings
Chemical Composition (Weight % per ASTM A105)
| Element | Composition Range | Function |
|---|---|---|
| Carbon (C) | 0.35% max | Provides strength and hardness |
| Manganese (Mn) | 0.60 – 1.05% | Improves hardenability and strength |
| Phosphorus (P) | 0.035% max | Controlled to prevent brittleness |
| Sulfur (S) | 0.040% max | Minimized for improved weldability |
| Silicon (Si) | 0.10 – 0.35% | Acts as deoxidizer and improves strength |
| Copper (Cu) | 0.40% max | Enhances atmospheric corrosion resistance |
| Nickel (Ni) | 0.40% max | Improves toughness |
| Chromium (Cr) | 0.30% max | Controlled residual element |
| Molybdenum (Mo) | 0.12% max | Controlled residual element |
| Vanadium (V) | 0.08% max | Grain refinement |
Mechanical Properties of ASTM A105 Forged Fittings
| Property | Requirement | Test Method |
|---|---|---|
| Tensile Strength | 485 MPa (70 ksi) minimum | ASTM A370 |
| Yield Strength (0.2% offset) | 250 MPa (36 ksi) minimum | ASTM A370 |
| Elongation in 2" (50 mm) | 22% minimum | ASTM A370 |
| Reduction of Area | 30% minimum | ASTM A370 |
| Hardness | 137 to 197 HBW (Brinell) | ASTM E10 |
ASTM A105 Forged Fittings Dimensions & Pressure Ratings
Available Size Range
Socket Weld Fittings: 1/8" (DN6) to 4" (DN100)
Threaded Fittings: 1/8" (DN6) to 4" (DN100)
Common Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
Pressure Class Ratings
| Pressure Class | Working Pressure (psi) | Working Pressure (bar) | Typical Applications |
|---|---|---|---|
| 2000 LBS | 2000 psi | 138 bar | Low-pressure services, water distribution |
| 3000 LBS | 3000 psi | 207 bar | Standard pressure piping, chemical processing |
| 6000 LBS | 6000 psi | 414 bar | High-pressure systems, refinery applications |
| 9000 LBS | 9000 psi | 621 bar | Ultra-high pressure, offshore drilling, hydraulic systems |
Socket Weld 90° Elbow Dimensions
| Nominal Size | Center to End (A) mm | Outside Diameter (B) mm | Socket Depth (C) mm | Weight (kg) |
|---|---|---|---|---|
| 1/8" | 11 | 14 | 9.5 | 0.01 |
| 1/4" | 11 | 18 | 9.5 | 0.02 |
| 3/8" | 13 | 22 | 9.5 | 0.03 |
| 1/2" | 15 | 27 | 12.5 | 0.05 |
| 3/4" | 17 | 34 | 12.5 | 0.08 |
| 1" | 22 | 42 | 15.5 | 0.13 |
| 1-1/4" | 25 | 52 | 15.5 | 0.22 |
| 1-1/2" | 29 | 60 | 15.5 | 0.30 |
| 2" | 38 | 73 | 19 | 0.50 |
| 2-1/2" | 48 | 89 | 22.5 | 0.90 |
| 3" | 57 | 102 | 22.5 | 1.30 |
| 4" | 76 | 127 | 25.5 | 2.40 |
Note: Pressure class designations per ASME B16.11 are nominal. Actual working pressure is temperature-dependent and is determined by the matching pipe schedule and allowable stress per ASME B31.3 / ASME B31.1. The PSI values above are indicative at ambient temperature only.
ASTM A105 Forged Fittings Price List
| Product Description | Approx. Price Range |
|---|---|
| ASTM A105 Forged Threaded Coupling 3000# ASME B16.11 | USD 1.00 – USD 4.80 Per Piece |
| High Pressure ASTM A105 Forged 90° Elbow CL3000 | USD 40.00 – USD 46.00 Per Piece |
| Carbon Steel ASTM A105 NPT Threaded Pipe Nipple | Starting From USD 0.25 Per Piece |
| ASTM A105 Forged Socket Weld Tee 3000 LB | USD 0.30 – USD 0.45 Per Piece |
Note:
Prices may vary depending on size, pressure class, quantity, threading type, and material testing requirements.
ASTM A105 Forged Fittings Equivalent Pipe Schedule Chart
| Pressure Class | Connection Type | Equivalent Wall Thickness | Pipe Schedule |
|---|---|---|---|
| Class 2000 | Threaded (NPT) | Extra Strong (XS) | SCH 80 |
| Class 3000 | Threaded (NPT) | Heavy Wall | SCH 160 |
| Class 6000 | Threaded (NPT) | Double Extra Strong (XXS) | Custom Thickness |
| Class 3000 | Socket Weld (SW) | Extra Strong (XS) | SCH 80 |
| Class 6000 | Socket Weld (SW) | Heavy Wall | SCH 160 |
| Class 9000 | Socket Weld (SW) | Double Extra Strong (XXS) | Special Heavy Duty |
Manufacturing Process & Quality Control
Manufacturing Process
1. Raw Material Selection & Verification Premium carbon steel billets conforming to ASTM A105 chemical composition with material certificates from steel mills.
2. Heating Process Billets heated to forging temperature: 1380-1514°C (2516-2757°F) in gas-fired or electric furnaces with temperature monitoring and control systems.
3. Hot Forging Operation Closed die forging for complex shapes, open die forging for simpler shapes using hydraulic presses (1000-5000 tons capacity).
4. Heat Treatment Normalizing at 900-950°C with air cooling for grain refinement, followed by stress relieving at 600-650°C to remove residual stresses.
5. Machining & Finishing CNC machining for socket bores and thread cutting with dimensional accuracy verification and surface finishing.
6. Quality Testing & Inspection Dimensional verification, visual inspection, hydrostatic pressure testing (1.5x rated pressure), PMI testing, and hardness testing.
7. Surface Treatment Black coating with anti-rust oil, hot-dip galvanizing, or painting as per customer specifications.
8. Marking & Identification Heat number, material grade (A105), pressure class, and manufacturer's logo through stamping, etching, or ink marking.
9. Packing & Dispatch Individual plastic caps, wooden boxes/pallets, rust preventive packaging with complete documentation and test certificates.
Quality Testing
| Test Type | Standard | Acceptance Criteria | Frequency |
|---|---|---|---|
| Chemical Analysis | ASTM E415 | Per ASTM A105 composition | Per heat/lot |
| Tensile Test | ASTM A370 | ≥485 MPa tensile, ≥250 MPa yield | Per heat |
| Hardness Test | ASTM E10 | 137-187 HBW | 100% or sampling |
| Hydrostatic Test | ASME B16.11 | 1.5x working pressure, no leakage | 100% or sampling |
| Dimensional Inspection | ASME B16.11 | Within tolerance limits | 100% or sampling |
| PMI Test | ASTM E1085 | Material grade verification | 100% or sampling |
ASTM A105 Forged Fittings Applications Across Industries
Oil & Gas Industry
Upstream: Wellhead connections, Christmas trees, flow lines
Midstream: Pipeline connections, compression stations
Downstream: Refinery piping, distillation units
Offshore: Subsea manifolds, platform piping
Petrochemical & Chemical Processing Reactor vessel piping, heat exchanger connections, storage tank connections, chemical transfer lines.
Power Generation Thermal power plants (boiler connections, steam lines), nuclear power (coolant systems), combined cycle plants (gas turbine piping).
Refineries & Process Plants Crude oil processing units, hydrocracking units, fluid catalytic cracking, reforming units.
Marine & Shipbuilding Engine room piping, ballast systems, fuel oil systems, hydraulic systems, firefighting systems.
Water Treatment & Distribution Municipal water supply, wastewater treatment plants, desalination plants, industrial water systems.
HVAC & Building Services Heating systems, chilled water systems, compressed air distribution, fire protection systems.
Key Advantages of ASTM A105 Forged Fittings
Superior Performance Characteristics
1. Exceptional Mechanical Strength Tensile strength ≥485 MPa - significantly higher than cast fittings with uniform grain structure and no internal voids.
2. Enhanced Reliability & Safety Zero porosity ensures leak-proof performance with lower failure rates. Industry data shows forged fittings have 85% fewer field failures than cast fittings.
3. Wide Temperature Range Operates reliably from -29°C to 538°C, maintaining mechanical properties across the temperature spectrum with excellent creep resistance at elevated temperatures.
4. Cost-Effective Lifecycle Solution Longer service life (20-30 years typical), reduced maintenance costs, and 40-60% lower lifecycle cost compared to alternatives.
5. Versatile Pressure Handling Available in pressure classes from 2000 to 9000 LBS, suitable for both low and ultra-high pressure applications.
6. Superior Weldability Controlled carbon content ensures excellent weldability with no preheating required for most applications.
Comparison: Forged vs. Cast vs. Fabricated Fittings
| Feature | ASTM A105 Forged | Cast Fittings | Fabricated Fittings |
|---|---|---|---|
| Tensile Strength | 485 MPa minimum | 350–400 MPa | Depends on base material |
| Internal Porosity | Zero | Possible | N/A |
| Pressure Rating | Up to 9000 LBS | Up to 3000 LBS typical | Varies |
| Size Availability | 1/8" to 4" | Larger sizes (>2") | All sizes possible |
| Weldability | Good (no preheat for most applications) | Lower (higher carbon potential) | Depends on base material |
| Lead Time | Short (2–4 weeks) | Medium (4–8 weeks) | Long (8–12 weeks) |
| Quality Consistency | Excellent | Good | Variable |
| Cost (Relative) | Medium | Low | High |
| Lifecycle | 20–30 years | 10–15 years | 15–20 years |
Installation Guidelines of ASTM A105 Forged Fittings
Socket Weld Installation
Pre-Installation Preparation: Verify fitting dimensions, inspect socket bore, clean thoroughly, and remove burrs from pipe cut.
Installation Steps:
Step 1: Cut pipe square, remove burrs, clean pipe end, verify pipe OD matches socket bore.
Step 2: Insert pipe fully into socket until bottoming out, mark pipe at socket face, then withdraw pipe 1/16" (1.5mm) from bottom. This expansion gap is critical to prevent stress from thermal expansion.
Step 3: Weld using GTAW (TIG) for root pass, SMAW or GMAW for fill. Use E7018 or ER70S-6 filler metal. Maximum interpass temperature: 260°C (500°F).
Step 4: Visual inspection for complete penetration, check for defects, verify fillet weld size, perform NDT if specified.
Threaded Fitting Installation
Pre-Installation: Inspect threads, clean with wire brush and solvent, verify thread type compatibility, check pipe thread quality.
Installation Steps:
Step 1: Apply PTFE tape (3-4 wraps) or thread sealant paste on male threads only. Avoid sealant in first 2-3 threads.
Step 2: Hand-tighten fitting until resistance is felt, then use appropriate wrench to tighten:
NPT: 3-5 turns past hand-tight
BSPT: 2-4 turns past hand-tight
Step 3: Apply recommended torque per size (ranging from 8-10 ft-lb for 1/8" to 80-100 ft-lb for 2").
Step 4: Pressurize the system gradually, hold pressure for 10-30 minutes, inspect for leakage.
FAQs About ASTM A105 Forged Fittings
There is no technical difference - both standards are identical. ASTM A105 is the ASTM designation, while ASME SA105 is the ASME designation. They are completely interchangeable.
Standard ASTM A105 fittings are not automatically qualified for sour service. For sour applications, A105 fittings must undergo additional HIC testing per NACE MR0175/ISO 15156 requirements.
ASTM A105 fittings are rated for continuous service up to 538°C (1000°F). For temperatures above 538°C, consider upgrading to alloy steel forgings such as A182 F11, F22, or F91.
The 1/16" (1.5mm) gap prevents stress cracking during welding and thermal expansion. Without this gap, welding heat causes expansion that locks the pipe against the socket bottom, creating excessive stress.
Choose socket weld for high pressure (>1500 psi), permanent installation, and critical services. Choose threaded for low-moderate pressure (<2000 psi), removable connections, and ease of maintenance.
EN 10204 3.1 is the manufacturer's test certificate certified by the manufacturer's inspector. EN 10204 3.2 is validated by independent third-party inspectors (Lloyd's, TÜV, Bureau Veritas), providing higher assurance for critical projects.
Per ASME B31.3, hydrostatic test pressure should be 1.5 times the design pressure at test temperature, held for a minimum of 10 minutes with no leakage or visible distortion.
When stored properly (dry environment, protected from corrosion, with thread protectors), A105 forged fittings have an indefinite shelf life. Best practice: use within 2 years of manufacturing.
Global Supply & Delivery
Manufacturing Capabilities
Production Capacity: 2000+ metric tons monthly
Size Range: Complete inventory from 1/8" to 4" NB
Pressure Classes: 2000, 3000, 6000, 9000 LBS in stock
Connection Types: Socket weld and threaded (NPT, BSPT, BSP)
Quality Infrastructure:
ISO 9001:2015 certified manufacturing facility
In-house NABL accredited testing laboratory
PMI testing on 100% material
Hydrostatic testing facility up to 15,000 psi
Third-party inspection welcome
Delivery Network
We Supply To: Middle East, Asia-Pacific, Europe, Americas, Africa
Delivery Timeline:
India (Domestic): 3-5 days standard, 24-48 hours express
Middle East: 7-10 days standard, 5-7 days express
Asia-Pacific: 10-15 days standard, 7-10 days express
Europe: 15-20 days standard, 10-12 days express
Americas: 20-25 days standard, 12-15 days express
Packing & Documentation
Standard Packing: Individual plastic caps for protection, bundled in cartons or wooden boxes, strapped on pallets, rust preventive oil coating for sea shipment.
Export Documentation: Commercial Invoice, Packing List, Material Test Certificates (MTC), Certificate of Origin, Bill of Lading, Third-Party Inspection Report (if required), Fumigation Certificate.
Get Your Quote Today
Request Instant Quotation
Get competitive pricing on premium ASTM A105 forged fittings with complete material certifications and fast worldwide delivery.
What You'll Receive:
- Detailed price quotation within 4 hours
- Free technical consultation & material selection guidance
- Material Test Certificates (EN 10204 3.1/3.2)
- Custom solutions for your specific requirements
- Volume discounts on large orders
Contact Us:
Phone: +91 22-67437598 | +91 22-40213914
Email: sales@metinoxoverseas.com
Available: Monday-Saturday, 9:00 AM - 7:00 PM IST
Enquire Now
Get pricing within 24 hours!
